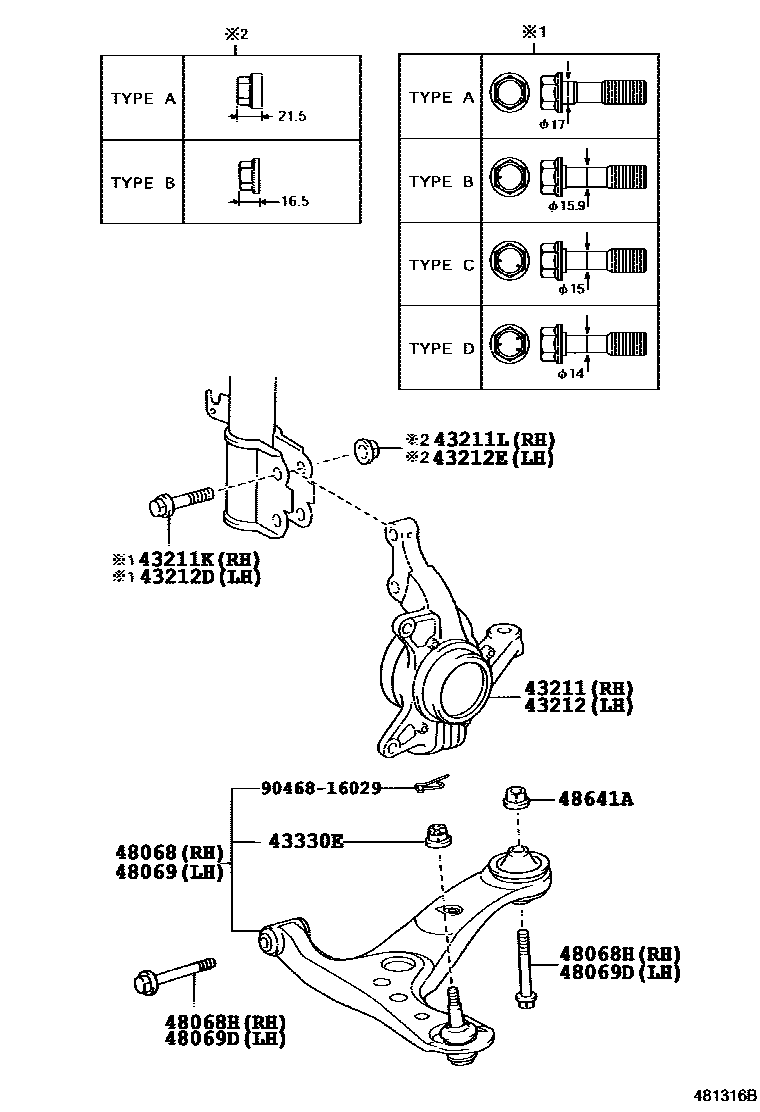

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-44040iACM21200105-200310

main43211-44050iACM26200105-200310

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17003iACM2#200105-200310

main90105-17004iACM2#200105-200310

main90105-17005iACM2#200105-200310

main90105-17008×2iACM2#200105-200310

main90105-17013iACM2#..07S200310

main90105-17014iACM2#..06S200310-200706

main90105-17015iACM2#..07S200310

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17001×2iACM2#200310-200811

main90178-17002×2iACM2#200812

main90179-17001iACM2#200105-200310

43212KNUCKLE, STEERING, LH

main43212-44040iACM21200310-200912

main43212-44050iACM26200310-200912

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17003iACM2#200105-200310

main90105-17004iACM2#200105-200310

main90105-17005iACM2#200105-200310

main90105-17008×2iACM2#..07S200310

main90105-17013iACM2#..06S200310-200706

main90105-17014iACM2#..06S200310-200706

main90105-17015iACM2#..06S200310-200706

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17001×2iACM2#200105-200310

main90178-17002×2iACM2#200812

main90179-17001iACM2#200105-200310

43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)

main90171-14011×2iACM2#200105-200310

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-29265iACM2#200706

main48068-49045iACM2#200105-200310

main48068-49065iACM2#200508-200706

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14086×2iACM2#200105-200310

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-29265iACM2#200706

main48069-49045iACM2#200310-200508

main48069-49065iACM2#200508-200706

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14086×2iACM2#..06S200310-200706

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90179-14068×2iACM2#200105-200310

9046816029

main90468-16029

13 parts on this diagram · 1 diagram in section
