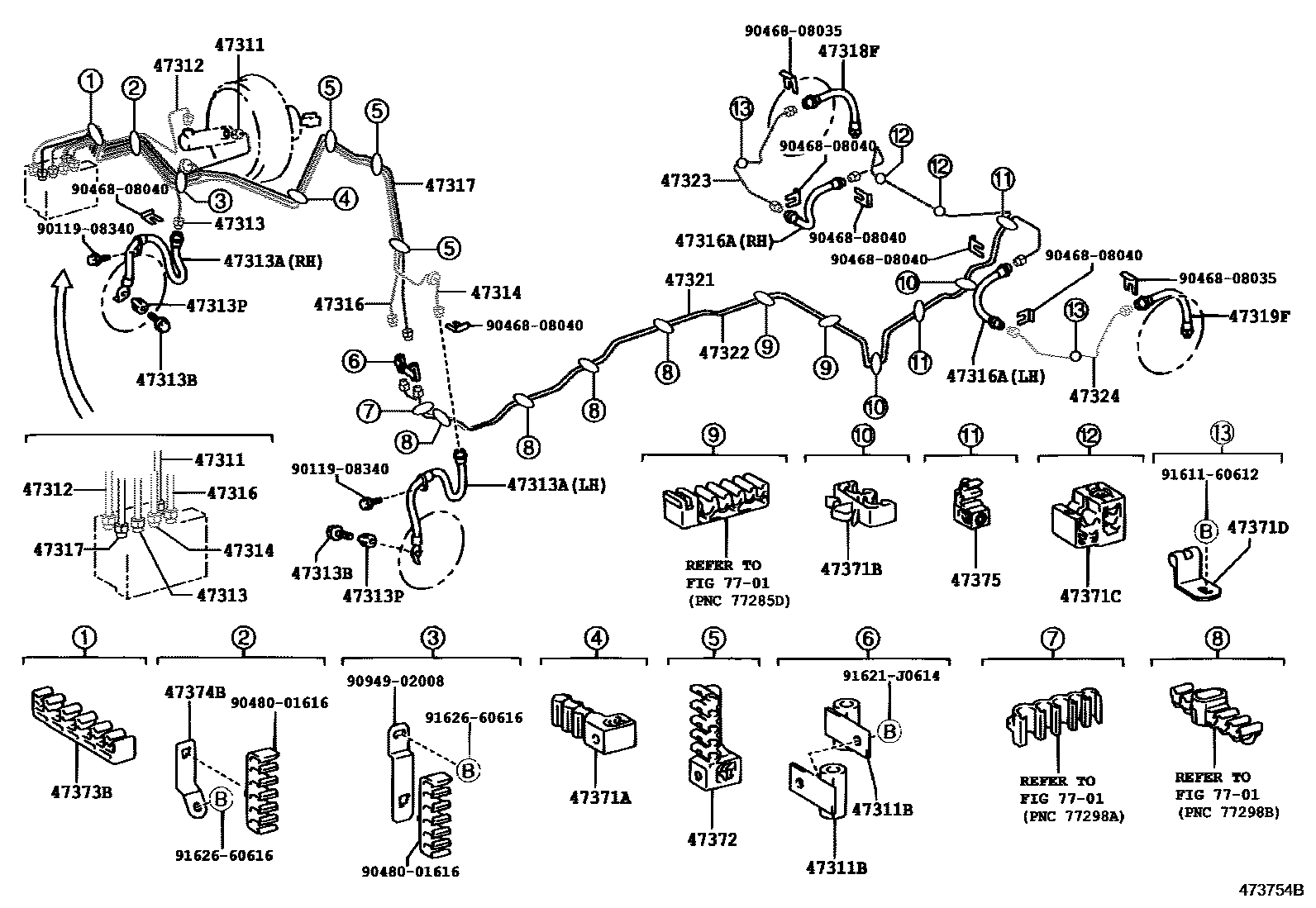

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1��(VSC) 0004 1 0005 1 0006 1��(VSC)

47311TUBE, FRONT BRAKE, NO.1

main47311-44110iACM26200105-200310

main47311-44120iACM2#200105-200310

main47311-44160iACM2#..06S200310-200706

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10144×2iACM2#..06S200310-200706

47312TUBE, FRONT BRAKE, NO.2

main47312-44070iACM26200105-200310

main47312-44080iACM2#200105-200310

main47312-44120iACM2#..06S200310-200706

47313TUBE, FRONT BRAKE, NO.3

main47313-44070iACM26200105-200310

main47313-44080iACM2#200105-200310

main47313-44100iACM2#..06S200310-200706

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02C77iACM2#..07S200310

main90947-02C78iACM2#..06S200310-200706

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iACM2#200105-200310

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iACM2#200105-200310

47314TUBE, FRONT BRAKE, NO.4

main47314-44090iACM26..06S200310-200706

main47314-44100iACM2#200105-200310

main47314-44130iACM2#..06S200310-200706

47316TUBE, FRONT BRAKE, NO.6

main47316-44070iACM26200105-200310

main47316-44080iACM2#200105-200310

main47316-44110iACM2#..06S200310-200706

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02C80×2iACM2#..07S200310

47317TUBE, FRONT BRAKE, NO.7

main47317-44080iACM26200105-200310

main47317-44090iACM2#200105-200310

main47317-44120iACM2#..06S200310-200706

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02B95iACM2#..06S200310-200706

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02B95iACM2#200105-200310

47321TUBE, REAR BRAKE, NO.1

main47321-44050iACM2#200105-200310

47322TUBE, REAR BRAKE, NO.2

main47322-44050iACM2#200105-200310

47323TUBE, REAR BRAKE, NO.3

main47323-44020iACM2#200105-200310

47324TUBE, REAR BRAKE, NO.4

main47324-44020iACM2#200105-200310

47371ACLAMP, BRAKE TUBE, NO.1

main47371-52010iACM2#200105-200310

47371BCLAMP, BRAKE TUBE, NO.6

main90469-07012×2iACM2#200105-200310

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01B45×2iACM2#200105-200310

47371DCLAMP, BRAKE TUBE, NO.8

main90461-08694×2iACM2#200105-200310

47372CLAMP, BRAKE TUBE, NO.2

main90949-01C56×3iACM2#200105-200310

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01B10iACM2#200105-200310

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01C65iACM2#200105-200310

47375CLAMP, BRAKE TUBE, NO.5

main77299-32030×2iACM2#200105-200310

7701

9011908340

main90119-08340

9046808035

main90468-08035

9046808040

main90468-08040

9048001616

main90480-01616

9094902008

main90949-02008

9161160612

main91611-60612

91621J0614

main91621-J0614

9162660616

main91626-60616

34 parts on this diagram · 6 diagrams in section
