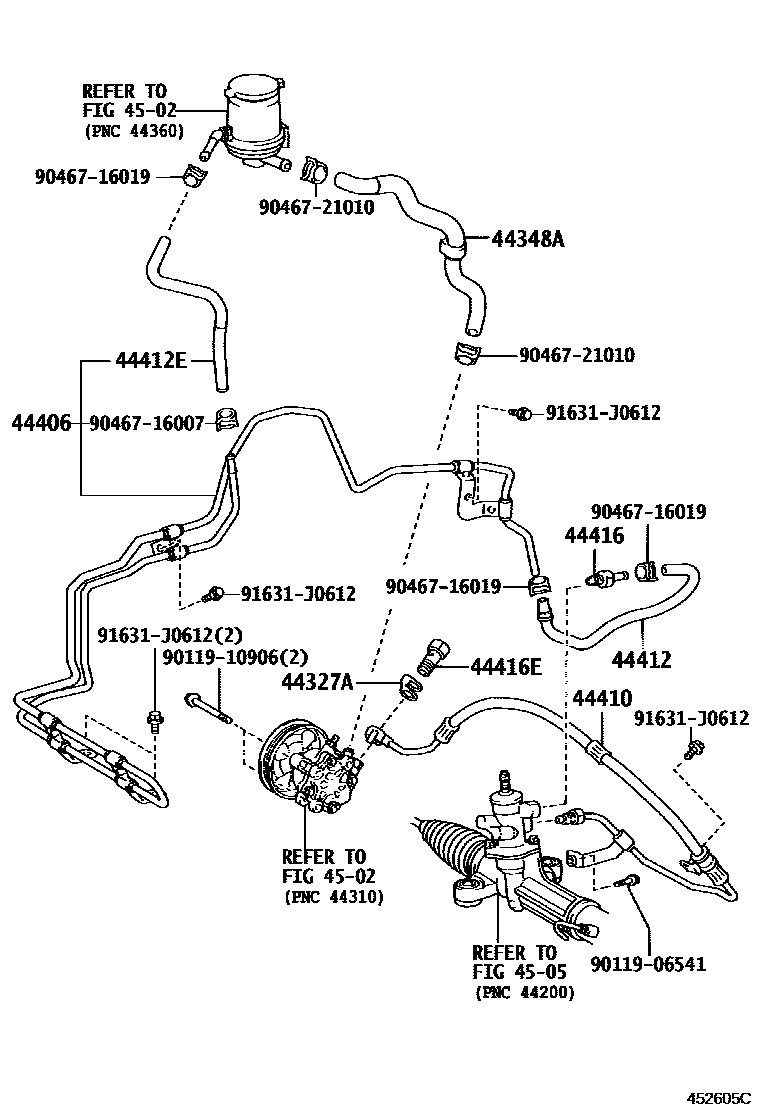

POWER STEERING TUBE

0001 1 0002 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iACM2#..06S200105-200706

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-44070iACM2#200105-200706

44406TUBE SUB-ASSY, RETURN

main44406-44120iACM21200105-200310

sub44406-44121

main44406-44140iACM26200105-200310

sub44406-44141

main44406-44190iACM21200310-200507

sub44406-44191

main44406-44191iACM21..06S200508-200706

main44406-44210iACM26200310-200507

sub44406-44211

main44406-44211iACM26..06S200508-200706

44410TUBE ASSY, PRESSURE FEED

main44410-44090iACM21200105-200706

main44410-44140iACM26..06S200105-200706

44412HOSE, RETURN

main44412-44010iACM21200105-200507

sub44412-44011

main44412-44011iACM21..07S200508-200706

44412EHOSE, RETURN, NO.2

main44412-44120iACM21200105-200310

main44412-44170iACM21200310-200706

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-26080iACM2#200105-200210

main44416-44010iACM2#200211-200706

44416EBOLT, UNION(FOR RETURN TUBE)

main96341-41603iACM2#200105-200706

4502

4505

9011906541

main90119-06541

9011910906

main90119-10906

9046716007

main90467-16007

9046716019

main90467-16019

9046721010

main90467-21010

91631J0612

main91631-J0612

16 parts on this diagram · 2 diagrams in section
