Toyota 811110 — VANE PUMP & RESERVOIR (POWER STEERING)

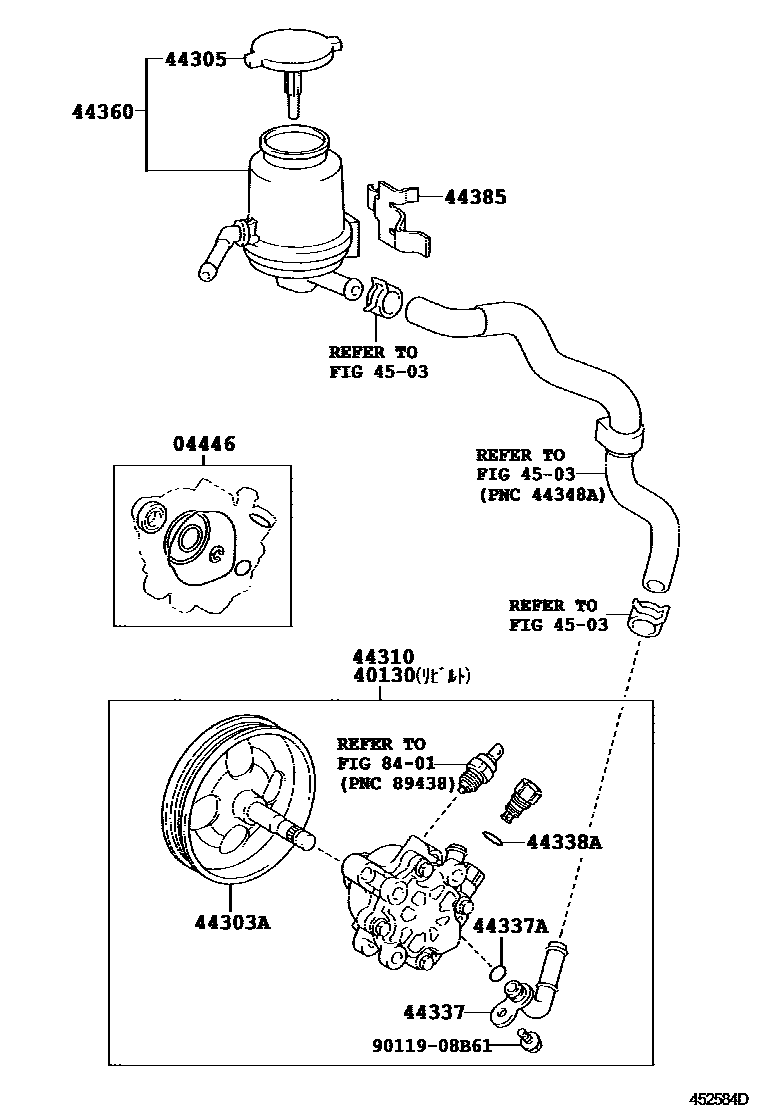

Parts diagram

04446GASKET KIT, POWER STEERING PUMP

40130PUMP ASSY,VANE REBUILT

44303ASHAFT SUB-ASSY, W/PULLEY

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

44310PUMP ASSY, VANE

44337UNION, POWER STEERING SUCTION PORT

44337ARING, O(FOR POWER STEERING SUCTION PORT)

44338ARING, O(FOR PRESSURE PORT UNION)

44360RESERVOIR ASSY, VANE PUMP OIL

44385SUPPORT, SPRING, UPPER(FOR VANE PUMP OIL RESERVOIR)

4503POWER STEERING TUBE

→ Go to FIG 45-03

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908B61

13 parts on this diagram · 1 diagram in section
