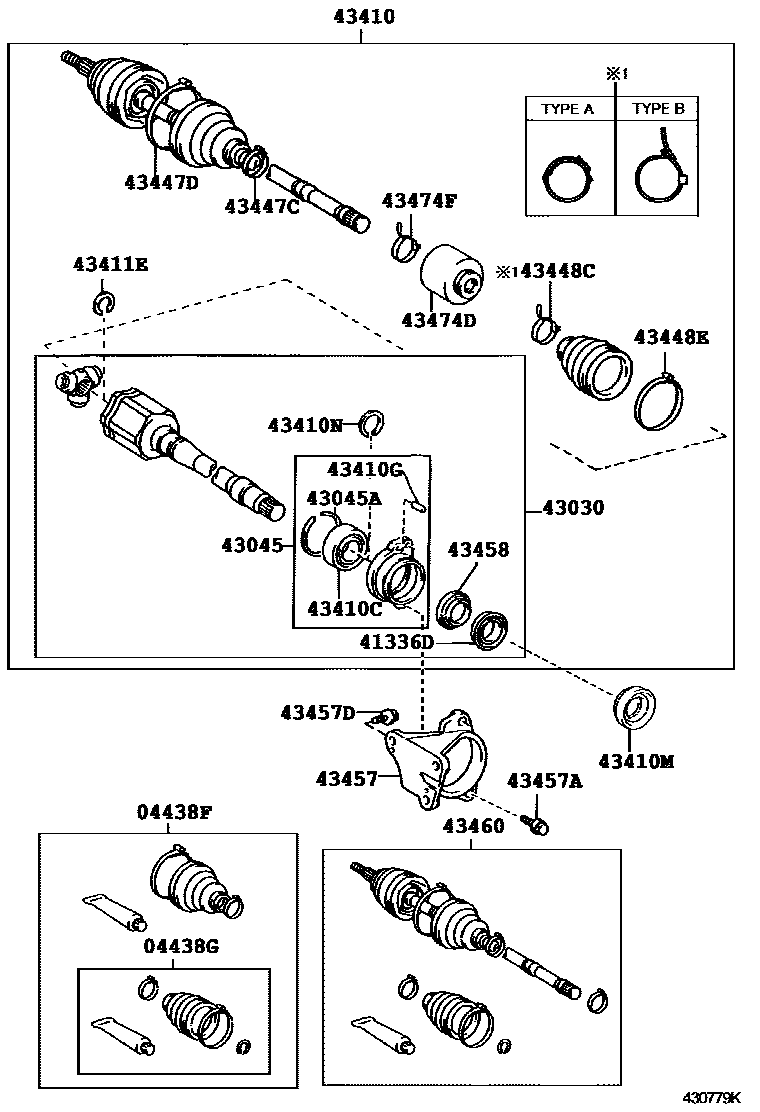

FRONT DRIVE SHAFT

0001 1��� 0002 1��� 0003 1���

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-42060iACM26200903

main04427-44020iACM21200407

sub04427-44021

main04438-28051iACM2#200105-200207

sub04438-28052

main04438-28052iACM21200207-200407

sub04428-42070

main04438-42102iACM26200310-200902

sub04438-42103

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-44030iACM21200407-200503

sub04438-42180

main04438-28040iACM2#200105-200207

sub04438-28041

main04438-28041iACM2#200207-200310

sub04438-42180

main04438-42180iACM26..06S200310-200902

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020iACM21..07S200105-200706

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-28020iACM26200105-200207

sub43030-28021

main43030-28021iACM26200208-200706

main43030-44020iACM21200105-200207

sub43030-44021

main43030-44021iACM21..06S200208-200706

43045CASE SUB ASSY, DRIVE SHAFT BEARING

main43045-20050iACM21200105-200408

sub43045-64020

main43045-64020iACM21..06S200409-200706

43045ARING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)

main90520-69002iACM21..07S200105-200706

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-44040iACM21..06S200105-200706

sub43410-44041

main43410-44050iACM26..07S200105-200706

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36006iACM26200105-200912

main90363-41002iACM21200105-200408

sub90363-41003

main90363-41003iACM21200409-200912

43410GPIN, STRAIGHT (FOR FRONT DRIVE SHAFT)

main90250-06003iACM21200105-200706

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40026iACM21200105-200510

sub90311-40041

main90311-40031iACM21200510-200912

main90316-34001iACM26200105-200912

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iACM26..06S200105-200706

main90520-38015iACM21..06S200105-200706

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010iACM2#200105-200706

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-20040iACM2#200105-200310

sub42345-42100

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-28020iACM2#200105-200310

sub42345-42090

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-42010iACM2#200204-200310

main42345-42010iACM2#..06S200310-200706

main90949-01559iACM2#200105-200204

main90949-01559iACM2#..06S200310-200706

main90949-01559iACM2#200204-200310

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12160iACM2#..07S200203-200706

main90949-01076iACM2#200105-200203

sub42345-12160

43457BRACKET, DRIVE SHAFT BEARING

main43457-28020iACM21..07S200105-200706

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10285iACM21200105-200310

sub90105-10361

main90105-10361iACM21..06S200310-200706

main90901-19060iACM26200105-200706

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381iACM21200105-200706

43458COVER, FRONT DRIVE SHAFT DUST

main43458-12010iACM21200105-200706

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-49125iACM21200105-200207

sub43460-49126

main43460-49126iACM21200207-200407

main43460-49135iACM26200105-200207

sub43460-49136

main43460-49136iACM26200207-200310

main43460-49295iACM21200407-200511

sub43460-49126

43474DAMPER, DRIVE SHAFT

main43474-44010iACM2#200105-200706

sub43474-44020

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-28010iACM21200105-200706

sub43474-28030

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-14010iACM21200105-200706

24 parts on this diagram · 3 diagrams in section
