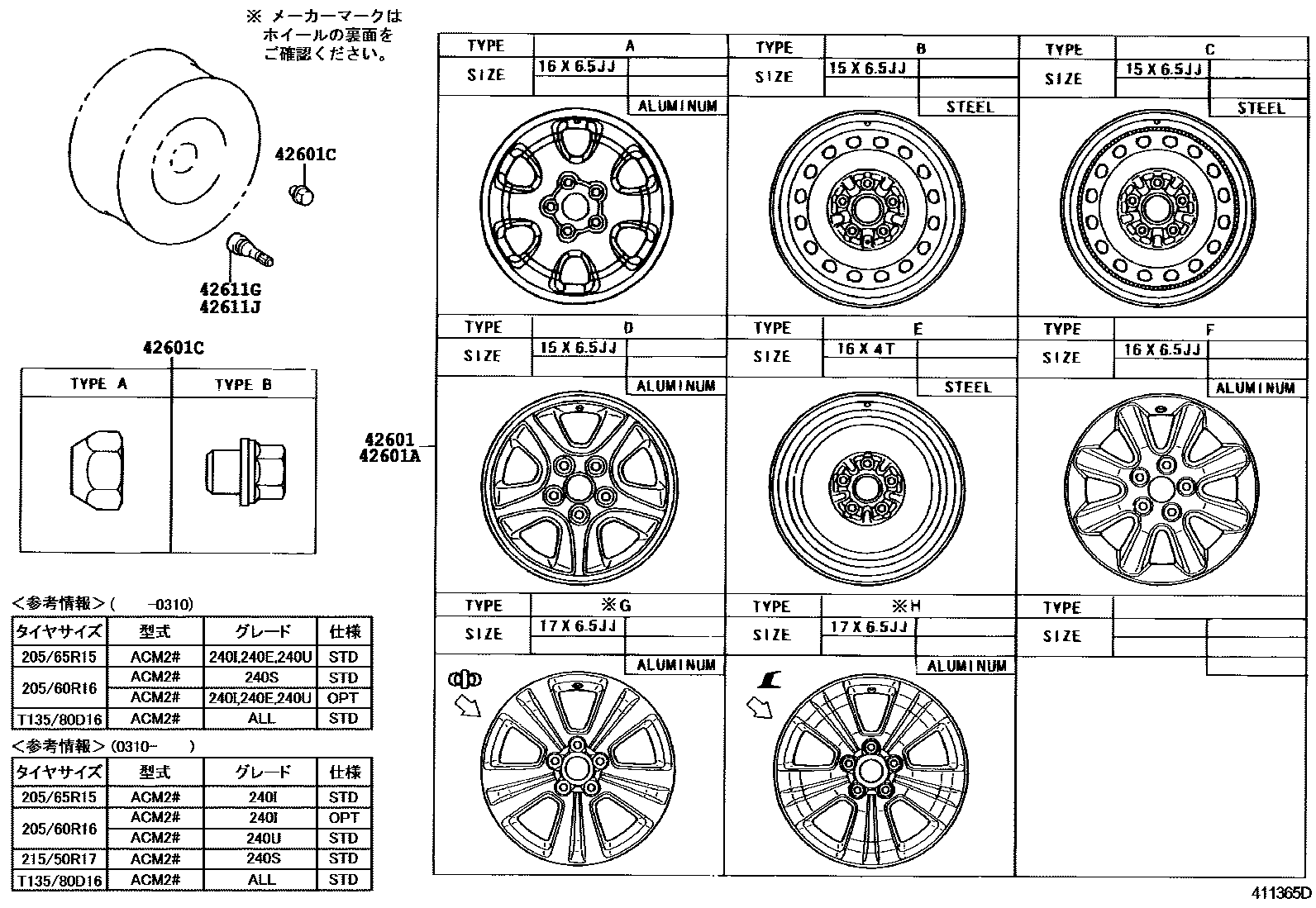

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-44070×4iACM2#..240E,240I200105-200202

main42611-44080×4iACM2#..240E,240I200105-200310

main42611-44090×4iACM2#..240E,240I,240U200105-200310

main42611-44110×4iACM2#..240E,240I,240S200112-200310

main42611-44150×4iACM2#..240I,240U200310-200406

main42611-44160×4iACM2#..240S200310

main42611-44170×4iACM2#..240S200310

42601AWHEEL, DISC (FOR SPARE)

main42611-44100iACM2#200105-200310

42601CNUT, HUB (FOR AXLE)

main90942-01007×20iACM2#..240E,240I200105-200310

main90942-01058×20iACM2#..07S200310

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iACM2#..240U200310-200406

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iACM2#200105-200310

5 parts on this diagram · 3 diagrams in section
