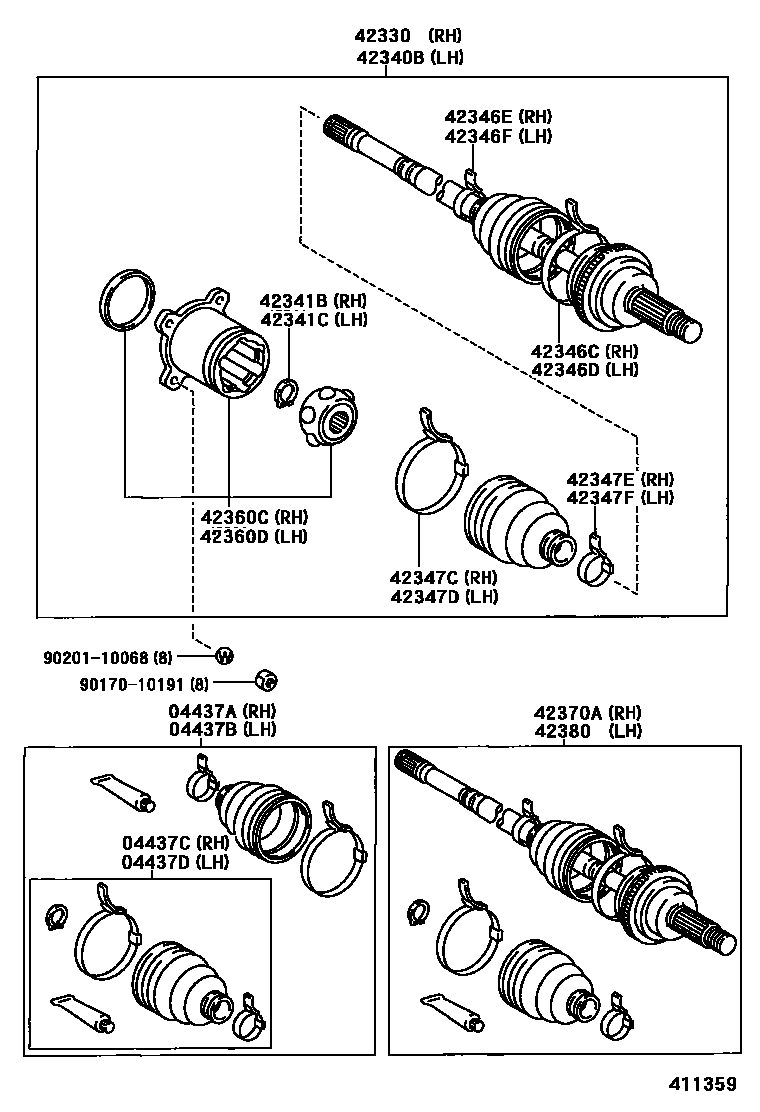

REAR AXLE SHAFT & HUB
04437ABOOT KIT, REAR DRIVE SHAFT, RH
sub04429-12020
04437BBOOT KIT, REAR DRIVE SHAFT, LH
sub04429-12020
42330SHAFT ASSY, REAR DRIVE, RH
sub42340-44031
42340BSHAFT ASSY, REAR DRIVE, LH
sub42340-44031
42341BRING, SNAP (FOR REAR DRIVE SHAFT RH)
sub43425-48040
42341CRING, SNAP (FOR REAR DRIVE SHAFT LH)
sub43425-48040
42346CCLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42346DCLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42346ECLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42346FCLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42347CCLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42347DCLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
42347ECLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42347FCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH
42360CJOINT ASSY, REAR DRIVE SHAFT INBOARD, RH
42360DJOINT ASSY, REAR DRIVE SHAFT INBOARD, LH
42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH
sub42370-49116
42380SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH
sub42370-49116
9017010191
main90170-10191
9020110068
main90201-10068
22 parts on this diagram · 3 diagrams in section
