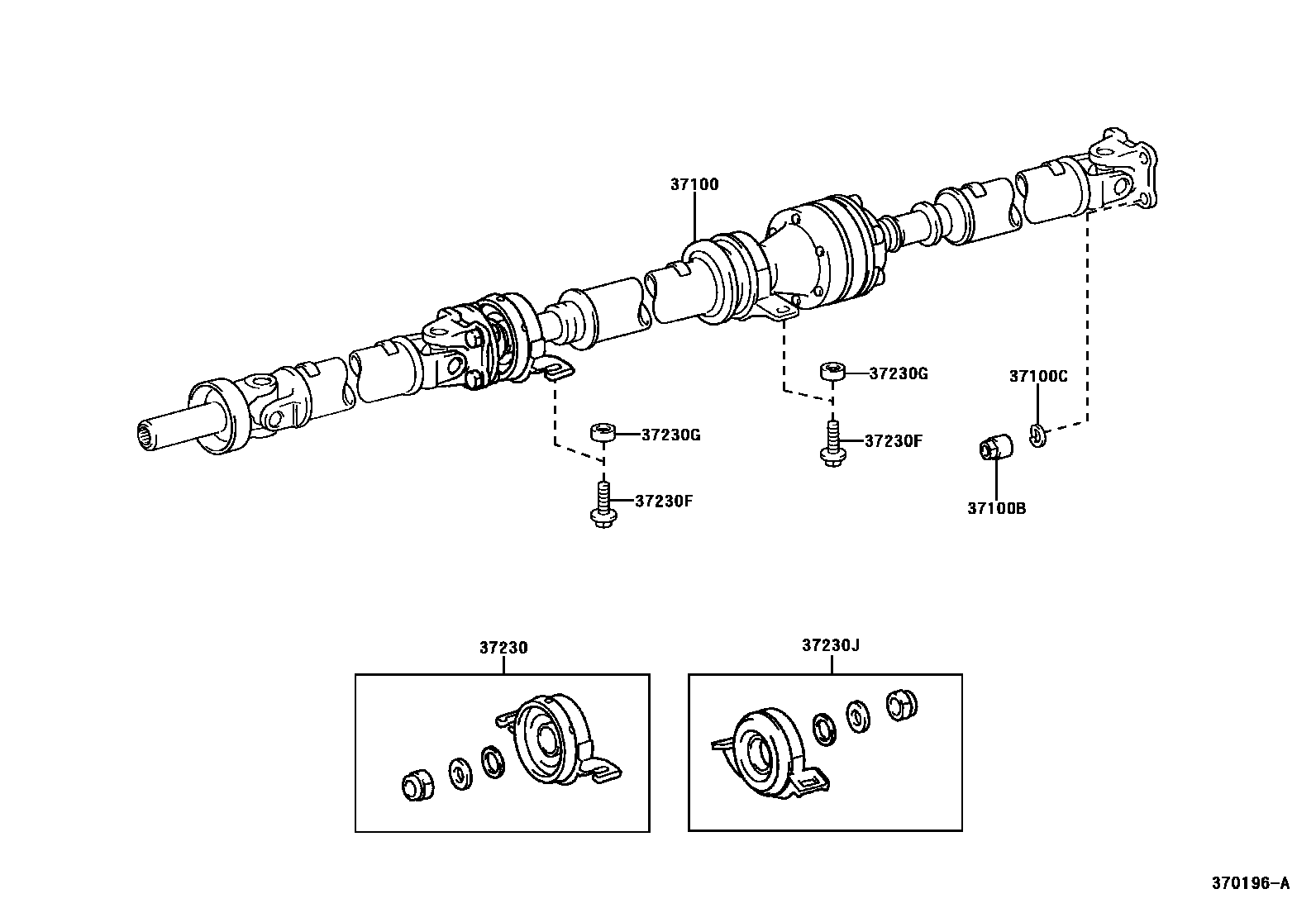

PROPELLER SHAFT & UNIVERSAL JOINT

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-44030iACM26..06S200105-200706

37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90179-08268iACM26200105-200706

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90204-10002iACM26200105-200803

sub90560-10H00

main90560-10102iACM26200803

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37230-29015iACM26200105-200310

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10444iACM26..07S200105-200706

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10081iACM26200105-200706

main90201-10083iACM26..06S200105-200706

main90201-10084iACM26200105-200212

main90201-10095iACM26..06S200105-200706

37230JBEARING ASSY, CENTER SUPPORT, NO.2

main37230-29015iACM26200105-200310

7 parts on this diagram · 1 diagram in section
