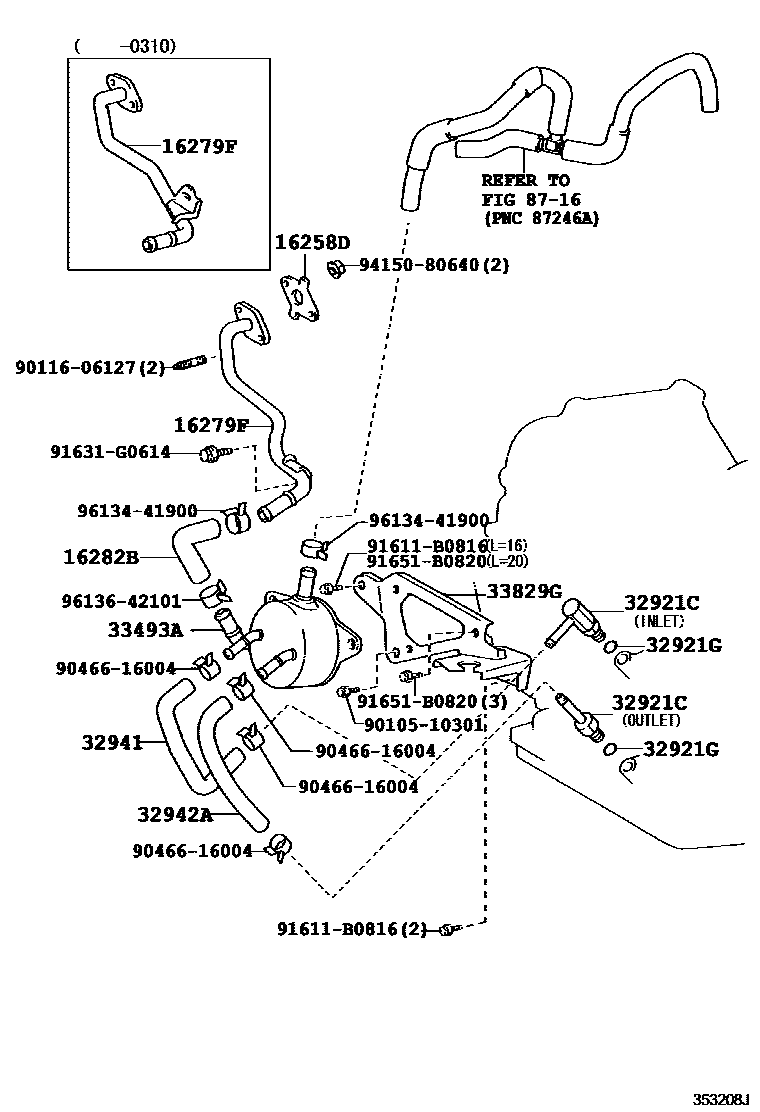

OIL COOLER & TUBE (ATM)

16258DGASKET(FOR WATER BY-PASS PIPE)

main16258-28020i2AZFE..ACM2#200105-200304

main16258-28021i2AZFE..ACM2#200304-200308

main16258-28040i2AZFE..ACM2#200308-200310

16279FPIPE, WATER BY-PASS, NO.3

main16279-28030i2AZFE..ACM2#200105-200310

main16279-28060i2AZFE..ACM2#..07S200310

16282BHOSE, WATER BY-PASS, NO.5

main16282-28010i2AZFE..ACM2#200105-200310

main16282-28090i2AZFE..ACM2#200310-200912

32921CUNION(FOR OIL COOLER TUBE)

main90404-13004iACM2#200105-200310

sub90404-13010

main90407-13009iACM2#200105-200310

sub90407-13010

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iACM2#200105-200310

32941HOSE, OIL COOLER INLET, NO.1

main32941-44010iACM2#200105-200310

32942AHOSE, OIL COOLER OUTLET, NO.2

main90445-17069iACM2#200105-200310

main90445-17100iACM2#200803

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-44010iACM2#200105-200310

33829GSUPPORT, TRANSMISSION CONTROL CABLE

main33829-44040iACM2#200105-200310

8716

9010510301

main90105-10301

9011606127

main90116-06127

9046616004

main90466-16004

91611B0816

main91611-B0816

91631G0614

main91631-G0614

91651B0820

main91651-B0820

9415080640

main94150-80640

9613441900

main96134-41900

9613642101

main96136-42101

19 parts on this diagram · 1 diagram in section
