Toyota 811110 — VACUUM PIPING

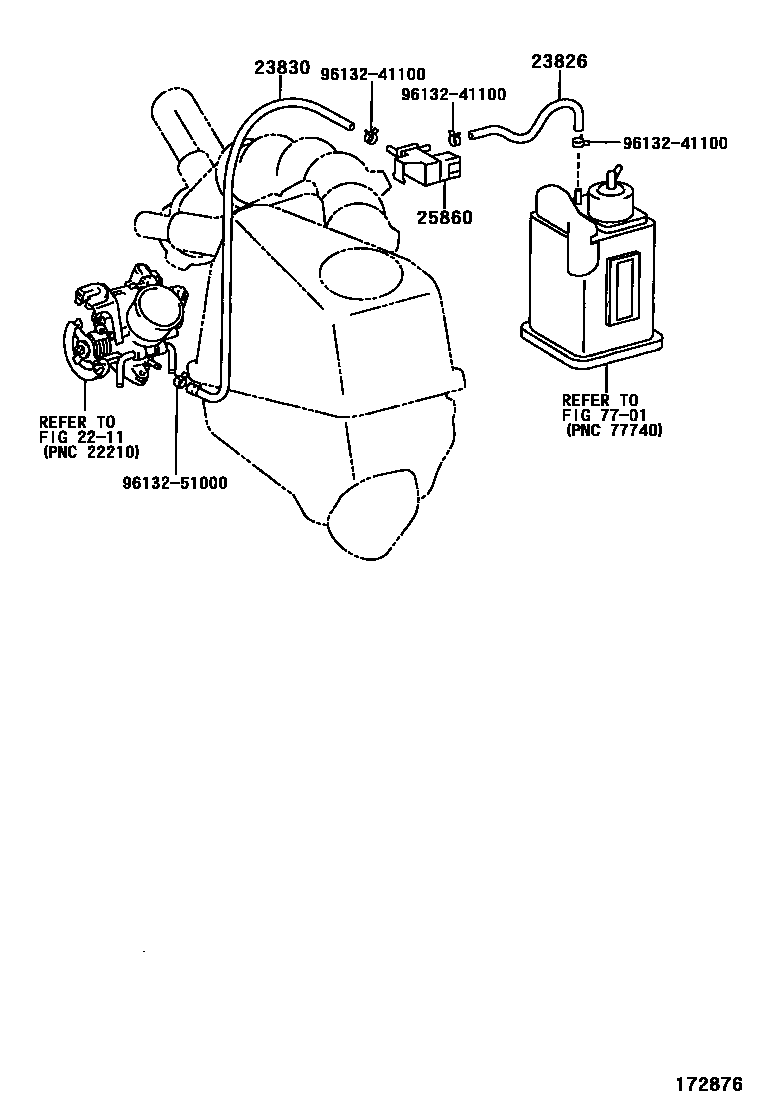

Parts diagram

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

23826HOSE, FUEL VAPOR FEED, NO.1

23830HOSE ASSY, FUEL VAPOR FEED, NO.2

25860VALVE ASSY, VACUUM SWITCHING, NO.1

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9613241100

9613251000

7 parts on this diagram · 3 diagrams in section

VACUUM PIPING for Toyota 811110

This section contains 12 genuine Toyota parts for the VACUUM PIPING system of the Toyota 811110. Key components include: FUEL INJECTION SYSTEM, HOSE, FUEL VAPOR FEED, NO.1, HOSE, FUEL VAPOR FEED, NO.2, HOSE ASSY, FUEL VAPOR FEED, NO.2, TANK, VACUUM SURGE.
