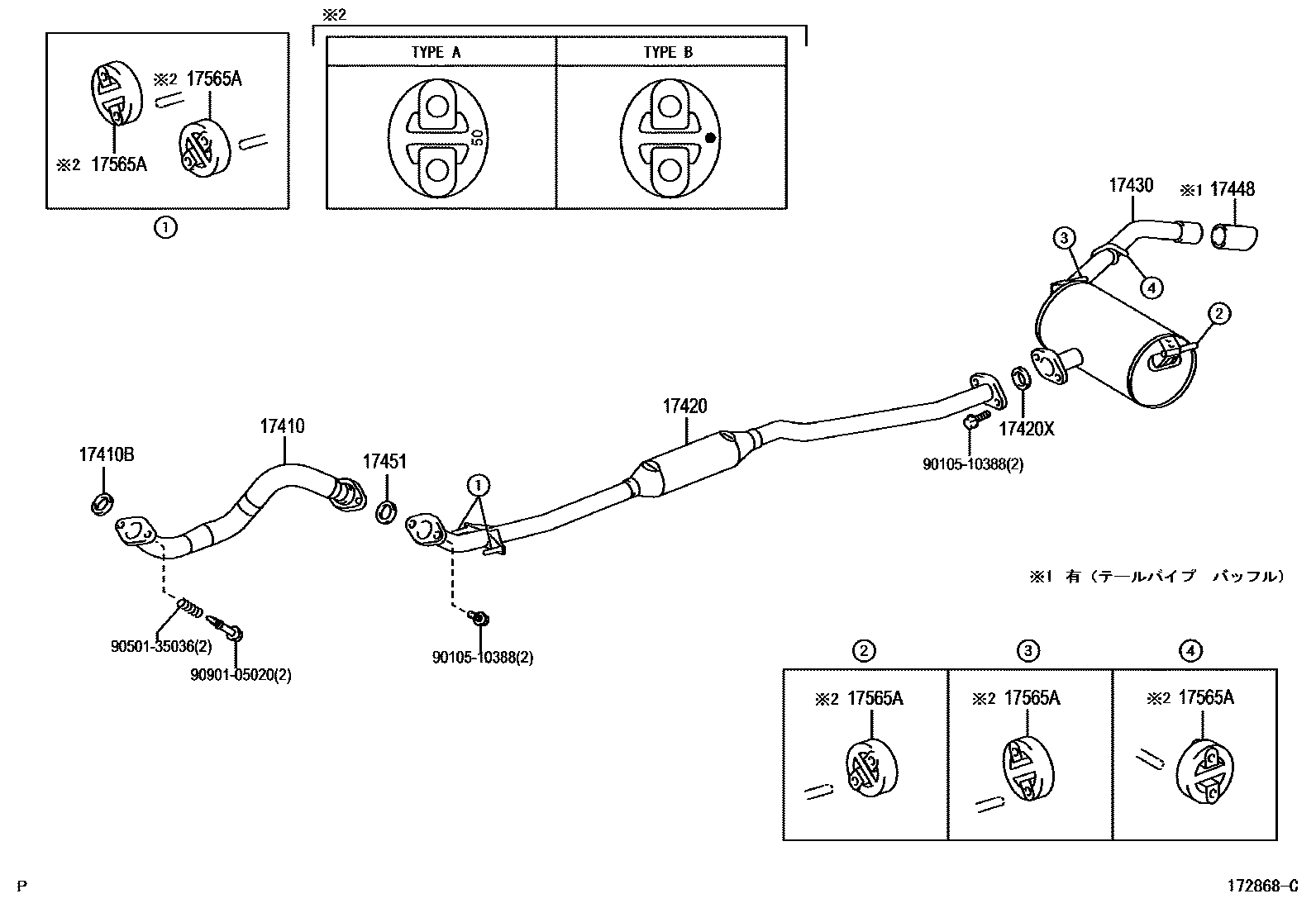

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-28300i2AZFE..ACM21..06S200310-200706

main17410-28310i2AZFE..ACM26200105-200310

17410BGASKET, EXHAUST PIPE

main17451-22070i2AZFE..ACM2#..06S200310-200706

17420PIPE ASSY, EXHAUST, CENTER

main17420-28131i2AZFE..ACM21200105-200310

main17420-28140i2AZFE..ACM26200105-200310

main17420-28430i2AZFE..ACM21..06S200310-200706

main17420-28440i2AZFE..ACM26..06S200310-200706

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06073i2AZFE..ACM2#..07S200310

17430PIPE ASSY, EXHAUST, TAIL

main17430-28250i2AZFE..ACM21200105-200310

main17430-28260i2AZFE..ACM26200105-200310

sub17430-28261

main17430-28590i2AZFE..ACM21..06S200310-200706

main17430-28600i2AZFE..ACM26200310-200608

main17430-28601i2AZFE..ACM26..06S200609-200706

17448BAFFLE, TAILPIPE

main17448-74080i2AZFE..ACM2#..06S..240S200310-200706

17451GASKET, EXHAUST PIPE

main90917-06078i2AZFE..ACM2#200105-200310

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-64180i2AZFE..ACM26200105-200310

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040×4i2AZFE..ACM26..06S200405-200706

main17565-46040×4i2AZFE..ACM26..07S200405

9010510388

main90105-10388

9050135036

main90501-35036

9090105020

main90901-05020

12 parts on this diagram · 2 diagrams in section
