CRANKSHAFT & PISTON

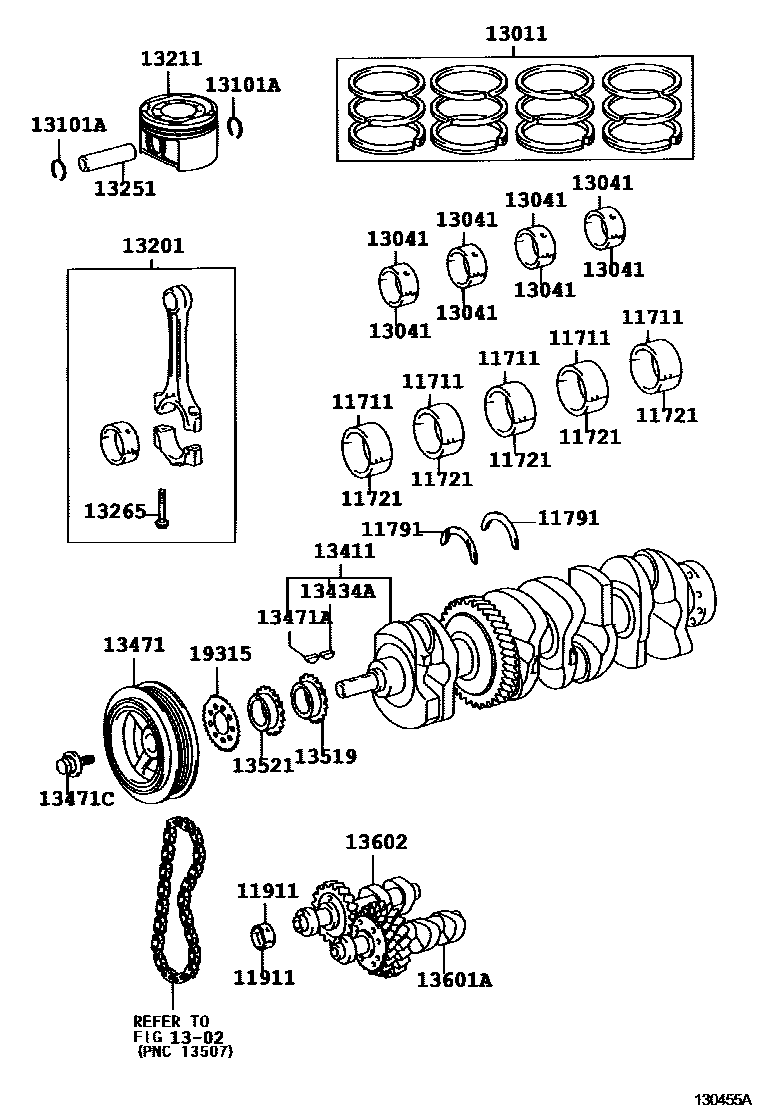

Parts diagram

11711BEARING, CRANKSHAFT

main11711-28010-01×5i200105-200310

main11711-28010-02×5i200105-200310

main11711-28010-03×5i200310-200511

main11711-28010-04×5i200310-200511

main11711-28020-01×5i200511-200811

main11711-28020-02×5i200511-200811

main11711-28020-03×5i200511-200811

main11711-28020-04×5i200511-200811

main11711-28021-01×5i200811

main11711-28021-02×5i200811

main11711-28021-03×5i200811

main11711-28021-04×5i200811

11721BEARING, CRANKSHAFT, NO.2

main11721-28010-01×5i200105-200310

main11721-28010-02×5i200105-200310

main11721-28010-03×5i200310-200511

main11721-28010-04×5i200310-200511

main11721-28020-01×5i200511-200811

main11721-28020-02×5i200511-200811

main11721-28020-03×5i200511-200811

main11721-28020-04×5i200511-200811

main11721-28021-01×5i200811

main11721-28021-02×5i200811

main11721-28021-03×5i200811

main11721-28021-04×5i200811

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-28020×2i200105-200310

11911BEARING, BALANCESHAFT, NO.1

main11911-28010-01×8i200310-200811

main11911-28010-02×8i200105-200310

main11911-28010-03×8i200105-200310

main11911-28011-01×8i200811

main11911-28011-02×8i200811

main11911-28011-03×8i200811

13011RING SET, PISTON

main13011-28100i200105-200107

main13011-28101i200107-200208

main13011-28102i200208-200310

1302

13041BEARING, CONNECTING ROD

main13281-28010-01×8i200105-200310

main13281-28010-02×8i200105-200310

main13281-28010-03×8i200105-200310

main13281-28011-01×8i200811

main13281-28011-02×8i200811

main13281-28011-03×8i200811

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-22025×8i200105-200310

13201ROD SUB-ASSY, CONNECTING

main13201-09790-A0×4i200801-200908

main13201-09790-B0×4i200801-200908

main13201-09790-C0×4i200801-200908

main13201-09791-A0×4i200908-200912

main13201-09791-B0×4i200908-200912

main13201-09791-C0×4i200908-200912

main13201-29125-A0×4i200105-200310

main13201-29125-B0×4i200105-200310

main13201-29125-C0×4i200105-200310

main13201-29685-A0×4i200311-200801

main13201-29685-B0×4i200311-200801

main13201-29685-C0×4i200311-200801

main13201-29686-A0×4i200811-200912

main13201-29686-B0×4i200811-200912

main13201-29686-C0×4i200811-200912

13211PISTON

main13211-28030-A0×4i200105-200107

main13211-28030-B0×4i200105-200107

main13211-28030-C0×4i200105-200107

main13211-28031-A0×4i200310

main13211-28031-B0×4i200310-200706

main13211-28031-C0×4i200107-200310

13251PIN, PISTON

main13251-28010-A0×4i200105-200310

main13251-28010-B0×4i200310-200612

main13251-28010-C0×4i200105-200310

main13251-28020-A0×4i200612

main13251-28020-B0×4i200612

main13251-28020-C0×4i200612

13265BOLT, CONNECTING ROD

main13265-28010×8i200310-200706

13411CRANKSHAFT

main13401-0H010i200411

main13401-28010i200112-200310

main13401-28900i200105-200112

13434AKEY(FOR OIL PUMP DRIVE SPLINE)

main95161-30416i200105-200310

13471PULLEY, CRANKSHAFT

main13470-28020i200105-200310

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main95161-30416i200105-200310

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-14106i200105-200310

13519GEAR, OIL PUMP DRIVE

main13519-28010i200105-200310

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-28010i200105-200310

main13521-28030i200510-200706

13601ABALANCESHAFT SUB-ASSY, NO.1

main13601-28010i200105-200310

main13601-28011i200505-200509

main13601-28030i200509-200706

13602BALANCESHAFT SUB-ASSY, NO.2

main13602-28010i200105-200310

main13602-28011i200505-200509

main13602-28030i200509-200706

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-28010i200105-200310

22 parts on this diagram · 1 diagram in section
