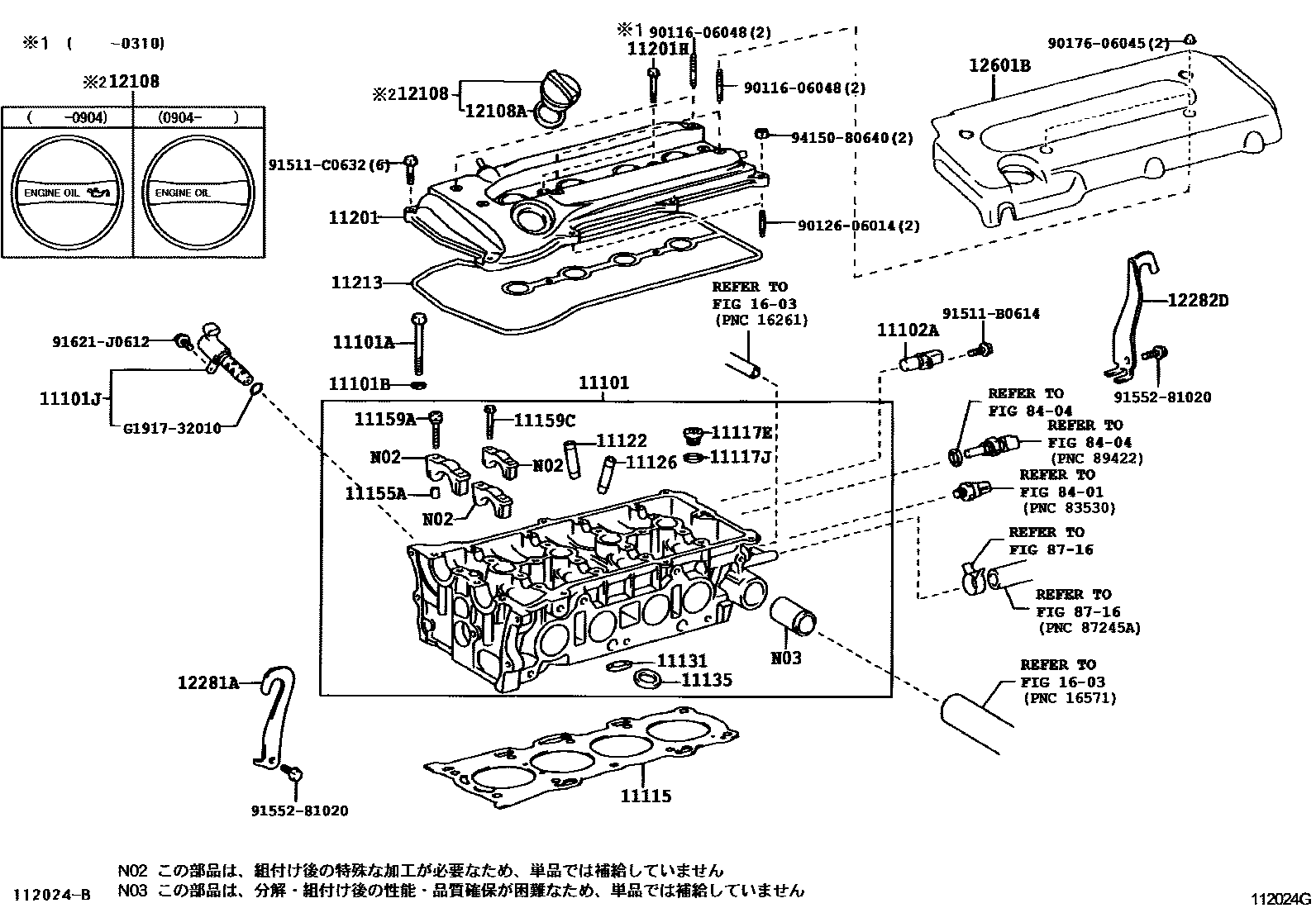

CYLINDER HEAD

11101HEAD SUB-ASSY, CYLINDER

main11101-0H010i2AZFE..ACM2#200504-200508

main11101-0H011i2AZFE..ACM2#..07S200508-200706

main11101-28011i2AZFE..ACM2#200310-200508

sub11101-28012

sub11310-0H011

sub11310-0H021

sub11310-0H041

sub11310-0H051

sub11310-28071

sub11310-28082

sub11321-28042

main11101-28011i2AZFE..ACM2#200105-200310

sub11101-28012

sub11310-0H011

sub11310-0H021

sub11310-0H041

sub11310-0H051

sub11310-28071

sub11310-28082

sub11321-28042

main11101-28012i2AZFE..ACM2#..06S200508-200706

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02141i2AZFE..ACM2#200105-200706

sub90910-02184

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-11033i2AZFE..ACM2#200105-200304

sub90201-11034

main90201-11034i2AZFE..ACM2#..07S200304-200706

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-28020i2AZFE..ACM2#200105-200706

sub15330-28010

11102ASENSOR, CAMSHAFT POSITION

main90919-05026i2AZFE..ACM2#200105-200706

11115GASKET, CYLINDER HEAD

main11115-28011i2AZFE..ACM2#200105-200304

sub11115-28012

main11115-28012i2AZFE..ACM2#200304-200508

sub11115-28013

main11115-28013i2AZFE..ACM2#200508-200511

sub11115-28040

main11115-28040i2AZFE..ACM2#..06S200511-200706

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90341-27006i2AZFE..ACM2#..07S200105-200706

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-27005i2AZFE..ACM2#200105-200706

11122BUSH, INTAKE VALVE GUIDE

main11122-28010i2AZFE..ACM2#200105-200310

main11123-28010i2AZFE..ACM2#200105-200310

11126BUSH, EXHAUST VALVE GUIDE

main11126-20020i2AZFE..ACM2#200105-200310

main11127-20020i2AZFE..ACM2#200105-200310

11131SEAT, INTAKE VALVE

main11131-0H020i2AZFE..ACM2#200511

main11131-28021i2AZFE..ACM2#200105-200508

main11131-28021i2AZFE..ACM2#200508-200511

main11132-0H020i2AZFE..ACM2#200511

main11132-28021i2AZFE..ACM2#200105-200511

main11132-28021i2AZFE..ACM2#200511

11135SEAT, EXHAUST VALVE

main11135-0H020i2AZFE..ACM2#200511

main11135-28030i2AZFE..ACM2#200105-200301

main11135-28040i2AZFE..ACM2#200301-200508

main11135-28040i2AZFE..ACM2#200508-200511

main11136-0H020i2AZFE..ACM2#200511

main11136-28030i2AZFE..ACM2#200105-200301

sub11136-28040

main11136-28040i2AZFE..ACM2#200301-200511

main11136-28040i2AZFE..ACM2#200511

11155APIN, RING W/HEAD

main90253-11004i2AZFE..ACM2#200105-200107

main90253-11021i2AZFE..ACM2#200508-200811

main90253-11021i2AZFE..ACM2#200107-200508

main90253-A0007i2AZFE..ACM2#200609-200811

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90080-10210i2AZFE..ACM2#..07S200504-200706

main90105-08337i2AZFE..ACM2#200105-200310

sub90105-08353

main90105-08353i2AZFE..ACM2#..07S200310-200706

11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90080-11292i2AZFE..ACM2#..06S200504-200706

main90119-06902i2AZFE..ACM2#..07S200310-200706

main90119-06902i2AZFE..ACM2#200105-200310

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-28012i2AZFE..ACM2#200105-200107

sub11201-28013

main11201-28013i2AZFE..ACM2#200107-200207

sub11201-28014

main11201-28014i2AZFE..ACM2#200207-200511

sub11201-28031

main11201-28031i2AZFE..ACM2#..07S200511-200706

sub11201-28032

11201HBOLT(FOR CYLINDER HEAD COVER)

main90119-06903i2AZFE..ACM2#200105-200706

11213GASKET, CYLINDER HEAD COVER

main11213-28021i2AZFE..ACM2#200105-200706

12108CAP SUB-ASSY, OIL FILLER

main12180-28010i2AZFE..ACM2#200105-200904

main12180-38010i2AZFE..ACM2#200904

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001i2AZFE..ACM2#200904

main90430-37004i2AZFE..ACM2#200105-200904

12281AHANGER, ENGINE, NO.1

main12281-0H010i2AZFE..ACM2#200805

main12281-28010i2AZFE..ACM2#200105-200310

main12281-28010i2AZFE..ACM2#200310

12282DHANGER, ENGINE, NO.2

main12282-0H010i2AZFE..ACM2#200805

main12282-28010i2AZFE..ACM2#200310

main12282-28010i2AZFE..ACM2#200105-200310

12601BCOVER SUB-ASSY, ENGINE, NO.1

main12601-28050i2AZFE..ACM2#200105-200310

sub12601-28100

main12601-28100i2AZFE..ACM2#..06S200310-200706

1603

8401

8404

8716

9011606048

main90116-06048

9012606014

main90126-06014

9017606045

main90176-06045

91511B0614

main91511-B0614

91511C0632

main91511-C0632

9155281020

main91552-81020

91621J0612

main91621-J0612

9415080640

main94150-80640

G191732010

mainG1917-32010

36 parts on this diagram · 1 diagram in section
