ENGINE OVERHAUL GASKET KIT

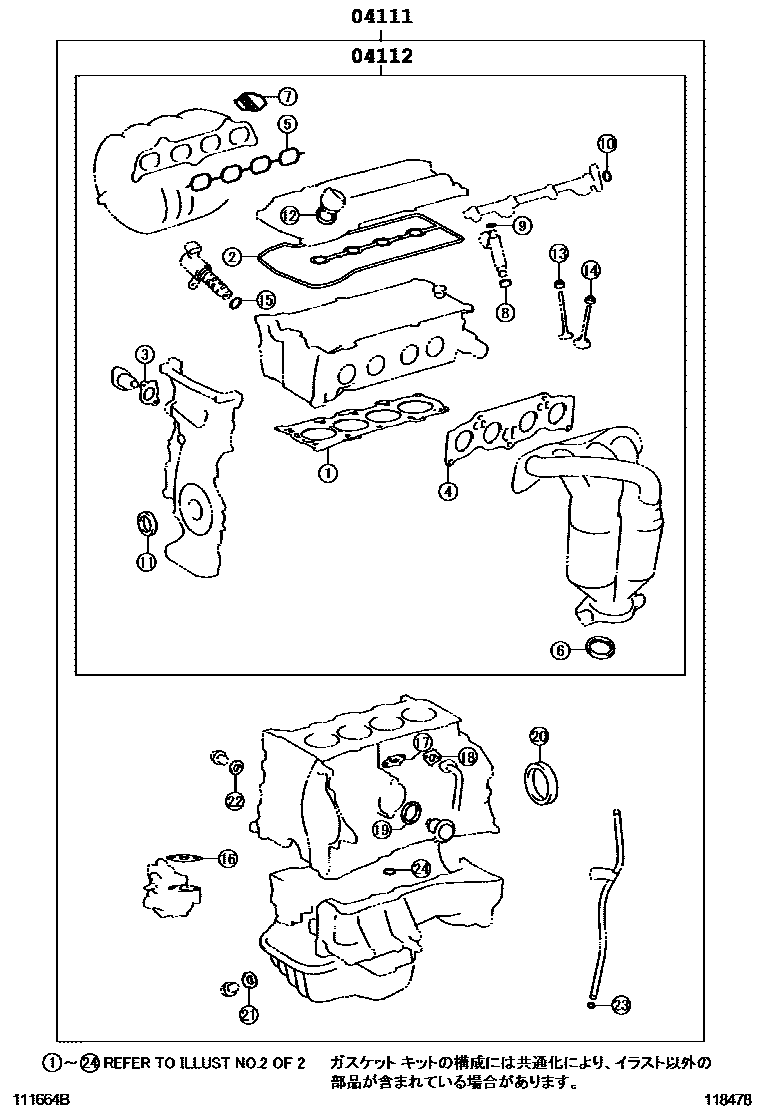

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-28053i200105-200211

main04111-28054i200211-200212

main04111-28055i200212-200304

main04111-28056i200304-200311

main04111-28370i200311-200508

main04111-28371i200508-200511

main04111-28372i200511-200607

main04111-28373i200607-200710

main04111-28930i200710-200904

main04111-28931i200904

04112GASKET KIT, ENGINE VALVE GRIND

main04112-28053i200105-200211

main04112-28054i200211-200212

main04112-28055i200212-200304

main04112-28056i200304-200311

main04112-28193i200710-200904

main04112-28194i200904

main04112-28360i200311-200508

main04112-28361i200508-200511

main04112-28362i200511-200607

main04112-28363i200607-200710

2 parts on this diagram · 2 diagrams in section
