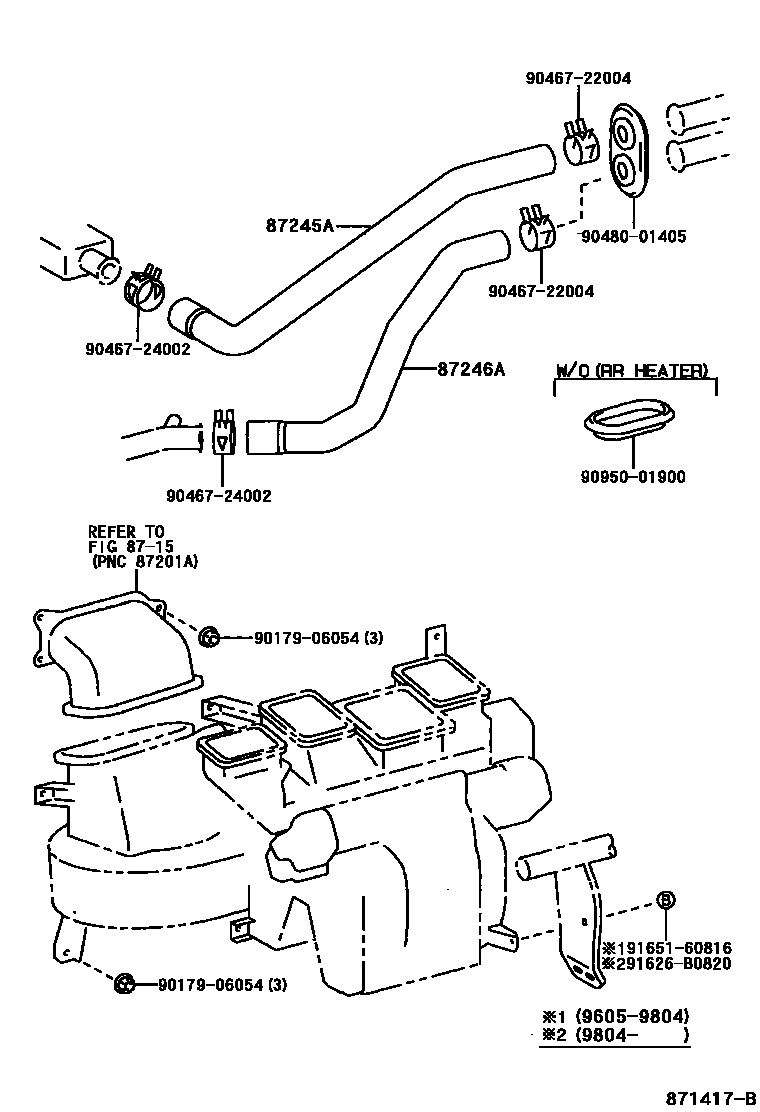

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1��(�� ����) 0003 1 0004 1��(�� ����)

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87245AHOSE, HEATER WATER, INLET A

main87245-44010iSXM1#199605

main87245-44150iSXM1#199708

main87245-44210iCXM10199709

main87245-44350iCXM10199709

87246AHOSE, HEATER WATER, OUTLET A

main87245-44020iSXM1#199605

main87245-44100iSXM1#199708-200005

main87245-44220iCXM10199709

main87245-44260iCXM10199709

main87245-44450iSXM1#200005

9017906054

main90179-06054

9046722004

main90467-22004

9046724002

main90467-24002

9048001405

main90480-01405

9095001900

main90950-01900

91626B0820

main91626-B0820

9165160816

main91651-60816

10 parts on this diagram · 4 diagrams in section
