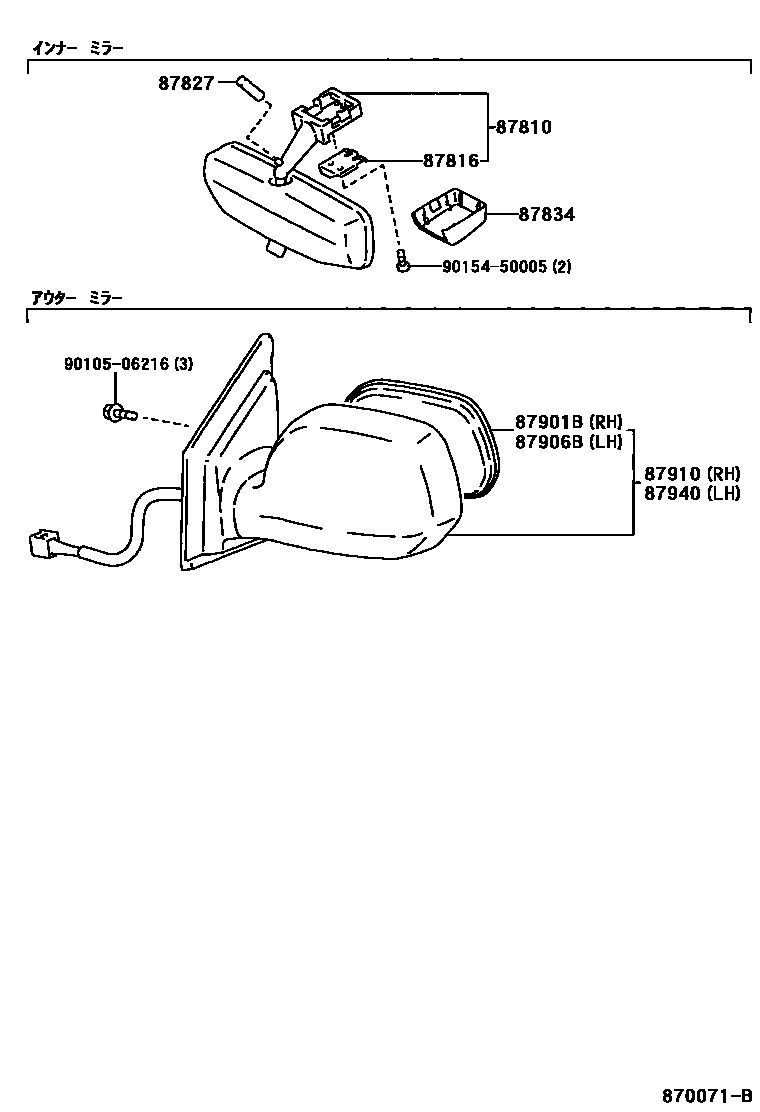

MIRROR
87810MIRROR ASSY, INNER REAR VIEW
MOON MIST,TRIM1#
LT.BLUISH GRAY,TRIM1#
87816SPRING, INNER REAR VIEW MIRROR
87827ABSORBER, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
LT.BLUISH GRAY,TRIM1#
MOON MIST,TRIM1#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
WHITE PM.,057
SILVER ME,199
BLACK,202
WINE RED MC,3J8
DK.TURQUOISE MC.,760
TURQUOISE ME.,765
DK.BLUE MM.GR.,8K5
BLUE ME.AMC.,8N2
87940MIRROR ASSY, OUTER REAR VIEW, LH
WHITE PM.,057
SILVER ME,199
BLACK,202
WINE RED MC,3J8
DK.TURQUOISE MC.,760
TURQUOISE ME.,765
DK.BLUE MM.GR.,8K5
BLUE ME.AMC.,8N2
9010506216
main90105-06216
9015450005
main90154-50005
10 parts on this diagram · 1 diagram in section
