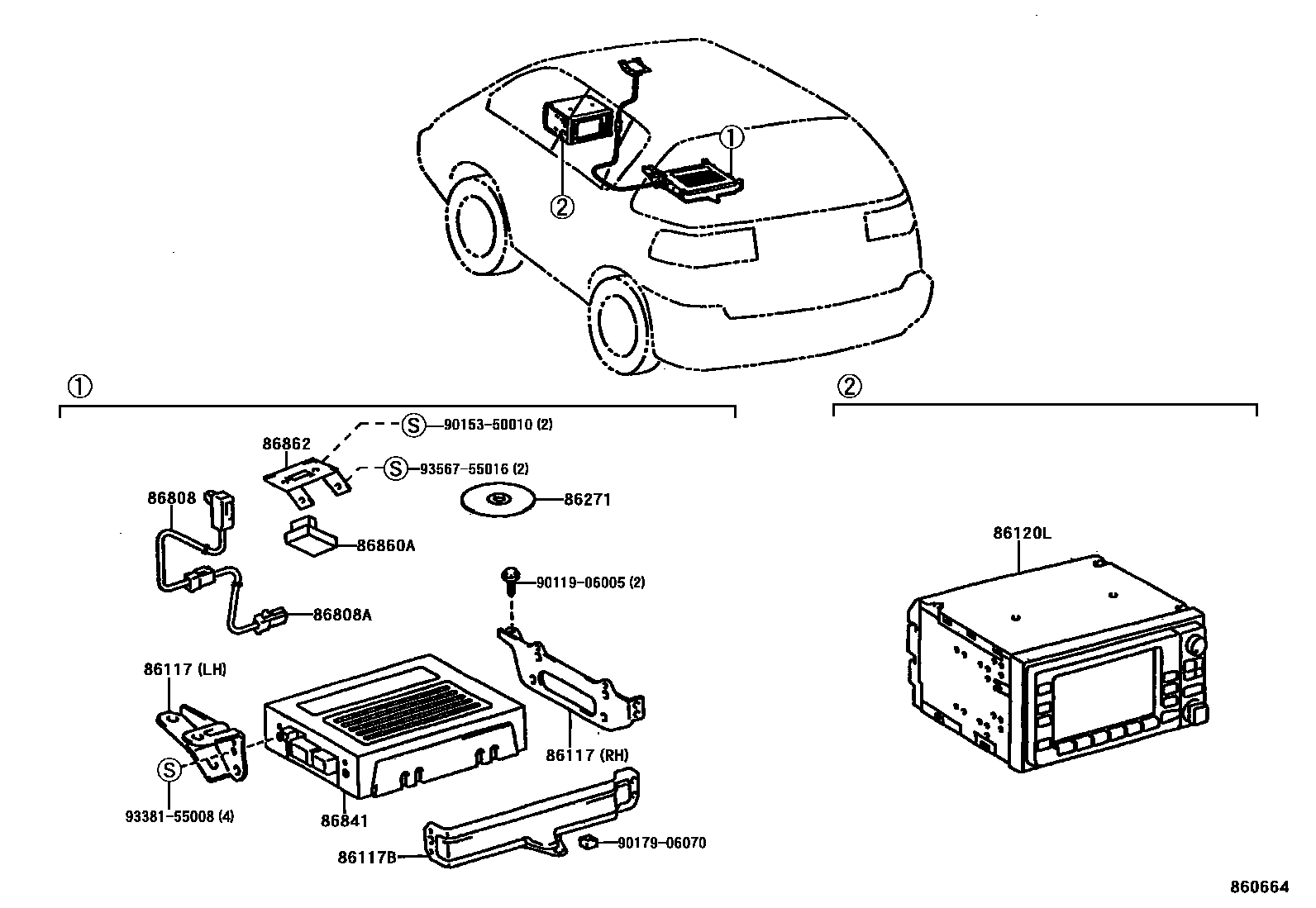

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-44010iSXM1#199605-199708

main86117-44020iSXM1#199605-199708

86117BBRACKET, TELEVISION DISPLAY, B

main86117-44030iSXM1#199605-199708

86120LRECEIVER ASSY, NAVIGATION

main86120-44010iSXM1#199605-199610

main86120-44011iSXM1#199610-199708

main86120-44020iCXM10,SXM1#199708-199710

main86120-44021iCXM10,SXM1#199710-199804

main86120-44030iCXM10,SXM1#199804-200004

main86120-44050iSXM1#..IPSUM199910-200004

86271DISC, DISC PLAYER

main86271-60010iSXM1#199605-199607

main86271-60011iSXM1#199607-199610

main86271-60020iSXM1#199610-199708

sub86271-60021

86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1

main86808-44010iSXM1#199605-199708

main86808-44030iCXM10,SXM1#199708-200004

main86808-44050iSXM1#..IPSUM199910-200004

86808ACORD SUB-ASSY, NAVIGATION ANTENNA, NO.2

main86808-44020iSXM1#199605-199708

86841COMPUTER, NAVIGATION

main86841-60010iSXM1#199605-199708

86860AANTENNA, NAVIGATION

main86861-44010iCXM10,SXM1#199605

86862BRACKET, NAVIGATION ANTENNA

main86862-44010iCXM10,SXM1#199605

9011906005

main90119-06005

9015350010

main90153-50010

9017906070

main90179-06070

9338155008

main93381-55008

9356755016

main93567-55016

14 parts on this diagram · 2 diagrams in section
