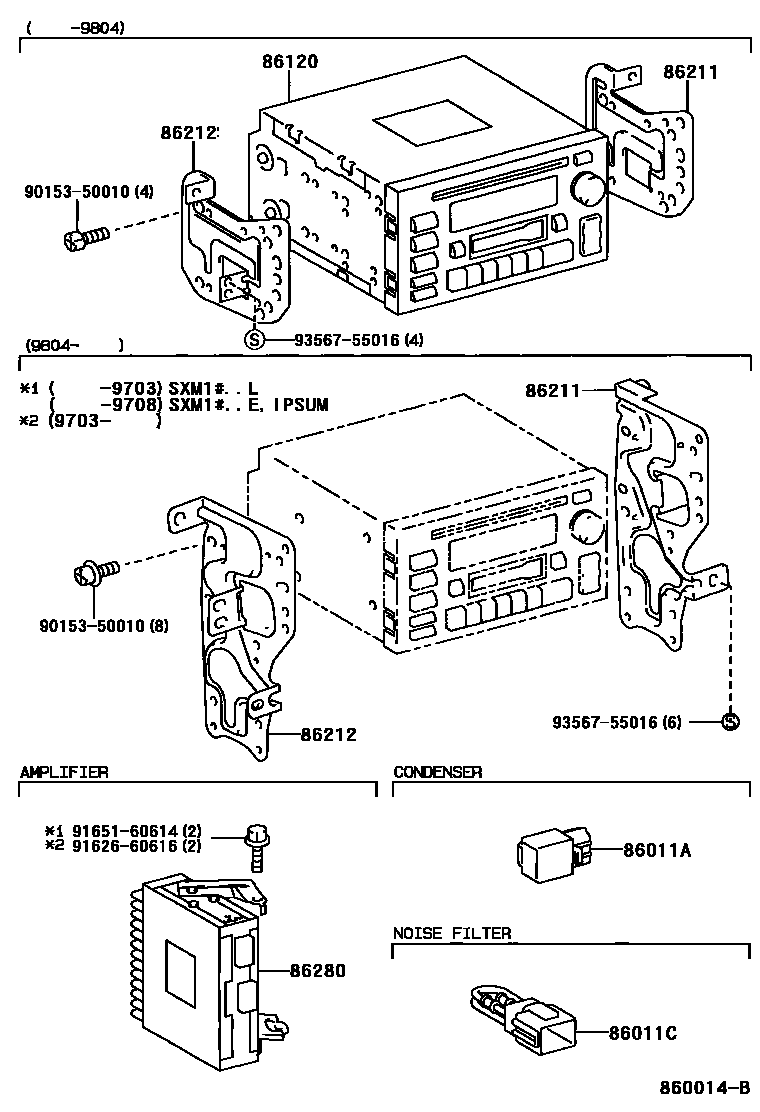

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011ACONDENSER, RADIO SETTING

main90980-04083iSXM1#199605-199708

main90980-04116iSXM1#199708

86011CFILTER, NOISE

main90980-05156iSXM1#199605-199708

86120RECEIVER ASSY, RADIO

main86120-2A340iCXM10,SXM1#..L199708

main86120-2B520iSXM1#..E199605-199708

main86120-2B530iCXM10,SXM1#..IPSUM199605

main86120-2B540iSXM1#..L199605-199708

main86120-44060iSXM1#..ATG200004

86211BRACKET, RADIO, NO.1

main86211-44010iCXM10,SXM1#199605-199804

main86211-44020iCXM10,SXM1#199804

86212BRACKET, RADIO, NO.2

main86212-44010iCXM10,SXM1#199605-199804

main86212-44020iCXM10,SXM1#199804

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-44010iSXM1#199605-199708

main86280-44011iCXM10,SXM1#199708-199804

main86280-44020iCXM10,SXM1#199804-200004

9015350010

main90153-50010

9162660616

main91626-60616

9165160614

main91651-60614

9356755016

main93567-55016

10 parts on this diagram · 2 diagrams in section
