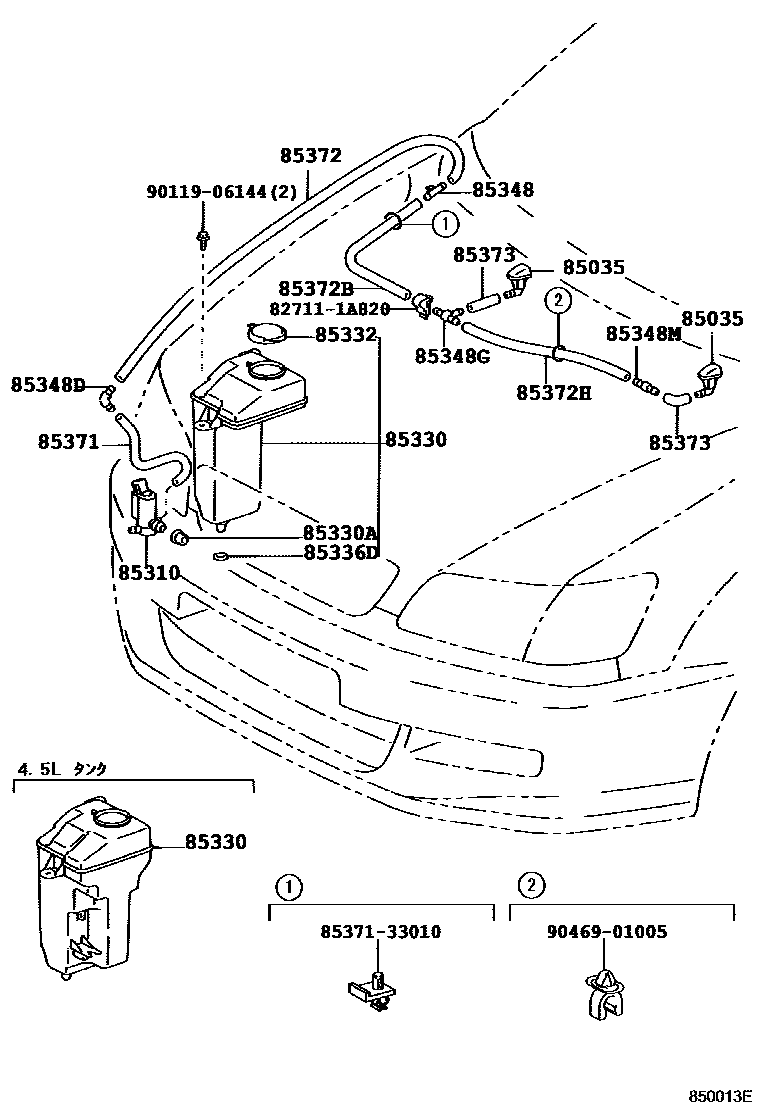

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-44010×2iCXM10,SXM1#199605

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10290iCXM10,SXM1#199605

85330JAR ASSY, WINDSHIELD WASHER

main85315-44010iCXM10,SXM1#199605

main85315-44020iCXM10,SXM1#199605

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iCXM10,SXM1#199605

85332CAP, WINDSHIELD WASHER JAR

main85316-20300iCXM10,SXM1#199605

85336DPACKING, WINDSHIELD WASHER JAR

main85336-20340iCXM10,SXM1#199605

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-17050iCXM10,SXM1#199605

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200iCXM10,SXM1#199605

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-28110iCXM10,SXM1#199605

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122iCXM10,SXM1#199605

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iCXM10,SXM1#199605

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iCXM10,SXM1#199605

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iCXM10,SXM1#199605

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001iCXM10,SXM1#199605

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iCXM10,SXM1#199605

827111A820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A820

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9011906144

main90119-06144

9046901005

main90469-01005

19 parts on this diagram · 1 diagram in section
