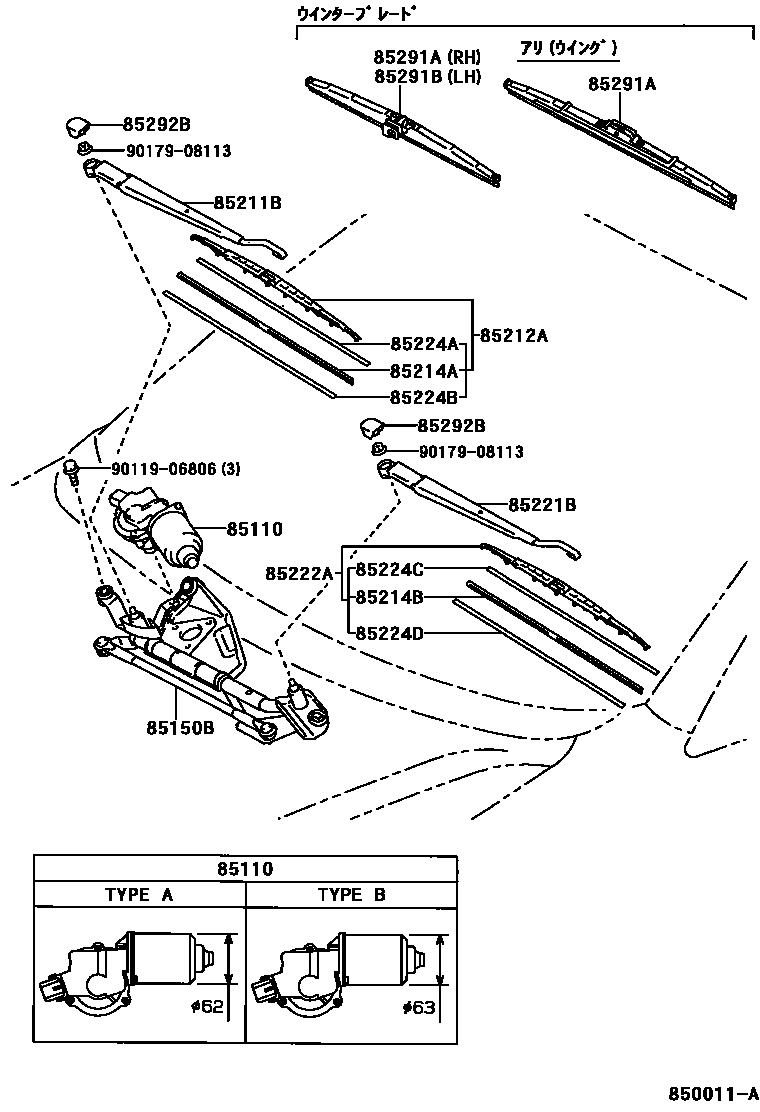

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-44010iCXM10,SXM1#199605

main85110-44020iCXM10;SXM1#..ATG199708-199804

85150BLINK ASSY, WIPER

main85150-44010iCXM10,SXM1#199605-199804

main85150-44011iCXM10,SXM1#199804

85211BARM, FRONT WIPER, RH

main85211-44010iCXM10,SXM1#199605-199804

main85211-44011iCXM10,SXM1#199804

85212ABLADE, FR WIPER, RH

main85212-44010iCXM10,SXM1#199605

sub85212-13010

85214ARUBBER, WIPER, RH

main85214-44010iCXM10,SXM1#199605

sub85214-50120

85214BRUBBER, WIPER, LH

main85214-44020iCXM10,SXM1#199605-199804

sub85214-50130

main85214-44080iCXM10,SXM1#199804

85221BARM, FRONT WIPER, LH

main85221-44010iCXM10,SXM1#199605-199804

main85221-44011iCXM10,SXM1#199804

85222ABLADE, FR WIPER, LH

main85222-44010iCXM10,SXM1#199605-199804

sub85222-50070

main85222-44030iCXM10,SXM1#199804

sub85222-44050

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-44010iCXM10,SXM1#199605

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-44010iCXM10,SXM1#199605

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-44020iCXM10,SXM1#199605-199804

main85224-44070iCXM10,SXM1#199804

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-44020iCXM10,SXM1#199605-199804

main85224-44070iCXM10,SXM1#199804

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-13030iCXM10,SXM1#199703

sub85291-24090

main85291-13040iCXM10,SXM1#199804

sub85291-24100

main85291-50030iSXM1#199605-199703

sub85291-22090

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-44010iCXM10,SXM1#199703

main85291-60070iSXM1#199605-199703

85292BCAP, FRONT WIPER ARM HEAD

main85292-44010×2iCXM10,SXM1#199605

9011906806

main90119-06806

9017908113

main90179-08113

17 parts on this diagram · 1 diagram in section
