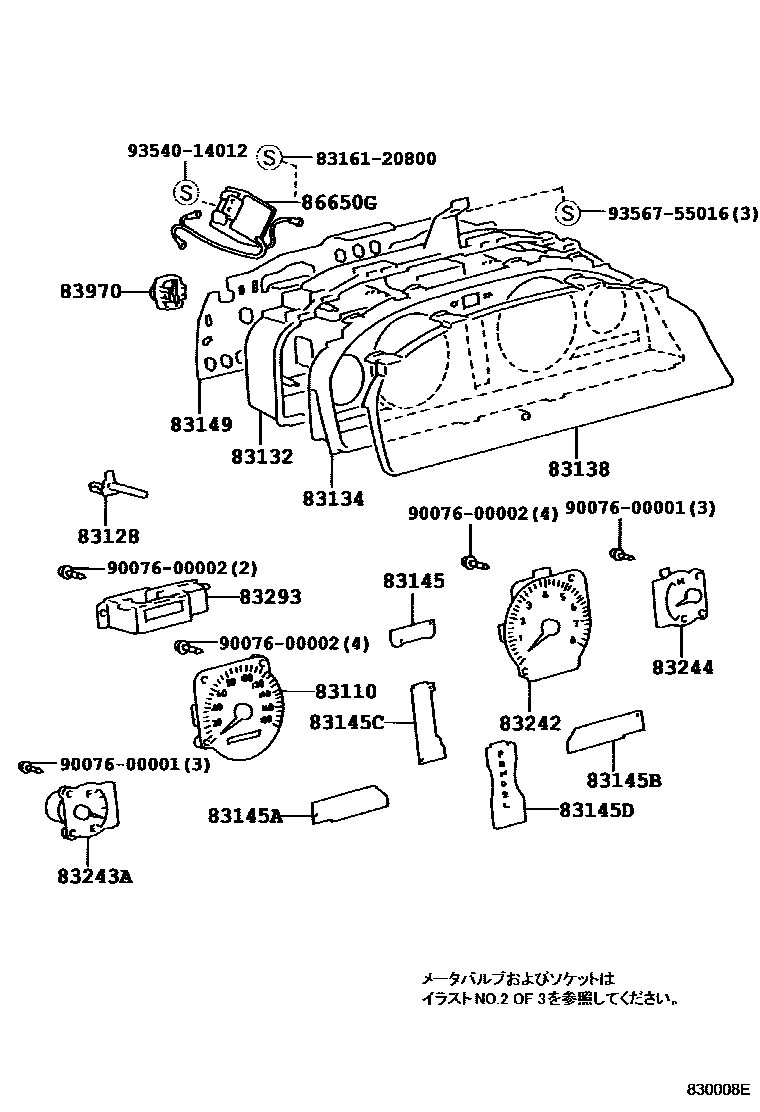

METER

0001 1�������� 0002 1���������-� 0003 1����� & ����(��������) 0004 1����� & ����(���������-�) 0005 1

83110SPEEDOMETER ASSY

main83220-44010iCXM10,SXM1#..E,IPSUM,L199605

main83220-44060iSXM10..E199804

main83220-44080iSXM10..IPSUM199806

main83220-44090iSXM15..IPSUM200004-200009

main83220-44110iSXM1#..ATG200004

83128KNOB, TRIP COUNTER

main83224-44010iCXM10,SXM1#199605

83132CASE, COMBINATION METER

main83841-44010iCXM10,SXM1#199605-199804

main83841-44070iSXM1#..ATG199804-200004

main83841-44160iSXM1#..IPSUM199806-199808

main83841-44320iSXM1#..IPSUM200004-200009

83134COVER, COMBINATION METER, NO.1

main83821-20590iSXM1#..IPSUM199806

main83821-44010iCXM10,SXM1#199708-200004

main83821-44330iSXM1#..ATG200004

main83851-44010iSXM1#199605-199708

83138GLASS, SPEEDOMETER

main83852-20130iCXM10,SXM1#199605

main83852-20590iSXM1#..IPSUM199808

83145LENS, METER, NO.1

main83831-20130iCXM10,SXM1#199605

83145ALENS, METER, NO.2

main83832-20130iCXM10,SXM1#199605

sub83831-20610

83145BLENS, METER, NO.3

main83831-20150iSXM10199605

sub83831-20140

main83831-20170iSXM15199605-199804

main83831-44090iCXM10199709

main83831-44130iSXM15199804

83145CLENS, METER, NO.4

main83831-44010iCXM10,SXM1#199605

83145DLENS, METER, NO.5

main83887-44010iCXM10,SXM1#199605-200004

main83887-44330iSXM1#..ATG200004

83149PLATE, METER CIRCUIT

main83861-44010iSXM10199605-199708

main83861-44020iSXM15199605-199708

main83861-44070iSXM10..ATG199708-199804

main83861-44080iSXM15..ATG199708-199804

main83861-44090iCXM10199709-199804

main83861-44120iSXM10200004

main83861-44130iSXM15..IPSUM,L199804-200004

main83861-44140iCXM10199804

main83861-44180iSXM10..E,IPSUM,L199708-199804

main83861-44190iSXM15..E,IPSUM,L199708-199804

main83861-44220iSXM10..E199804

main83861-44230iSXM15..ATG199804-200004

83242TACHOMETER ASSY, ENGINE

main83881-44010iSXM1#..E,IPSUM,L199605

main83881-44070iSXM1#..ATG199708-200004

main83881-44090iCXM10199709

main83881-44330iSXM1#..ATG200004

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-44010iCXM10,SXM1#..E,IPSUM,L199605

main83882-44070iSXM10..E199804

main83882-44160iSXM1#..IPSUM199806-200009

main83882-44161iSXM1#..IPSUM200009

main83882-44330iSXM1#..ATG200004

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83883-44010iCXM10,SXM1#..E,IPSUM,L199605

main83883-44070iSXM10..E199804

main83883-44160iSXM1#..IPSUM199806-200009

main83883-44161iSXM1#..IPSUM200009

main83883-44330iSXM1#..ATG200004

83293COMPUTER, TOTAL COUNTER MODULE

main83293-44010iSXM1#199605

main83293-44040iCXM10199709

83970BUZZER ASSY, REVERSE WARNING

main83970-12020iCXM10,SXM1#199605

86650GBUZZER ASSY

main86650-33020iCXM10,SXM1#199605

8316120800CASE, COMBINATION METER MIRROR, NO.1

main83161-20800

9007600001

main90076-00001

9007600002

main90076-00002

9354014012

main93540-14012

9356755016

main93567-55016

22 parts on this diagram · 5 diagrams in section
