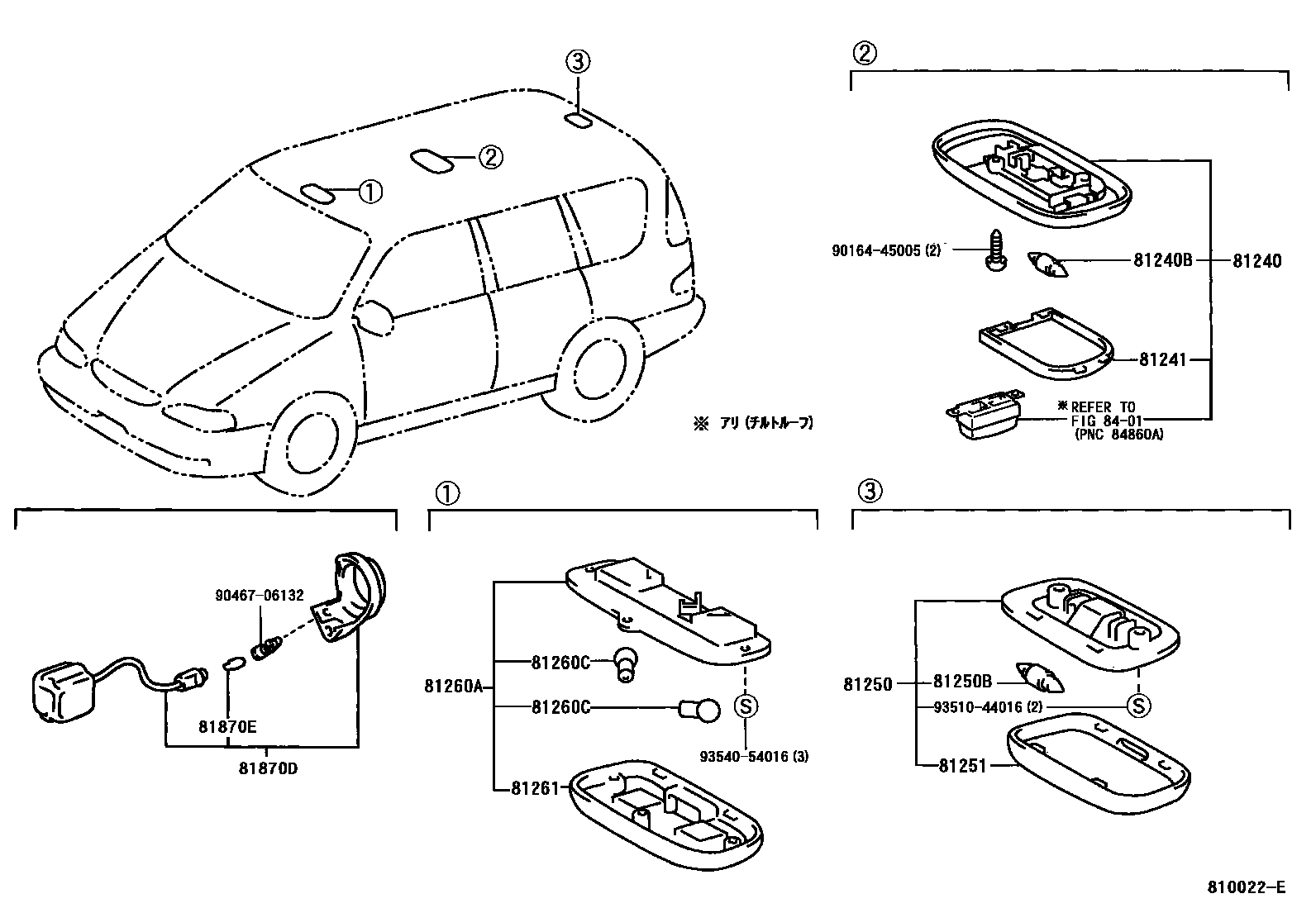

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-12060-A0iSXM1#..IPSUM200010-200104

main81240-12060-A1iSXM1#..IPSUM200004-200009

main81240-12060-B1iCXM10,SXM1#199804-200105

LT.BLUISH GRAY,TRIM1#

main81240-12060-B2iCXM10,SXM1#199605-199804

MOON MIST,TRIM1#

main81240-44010-A0iSXM1#..IPSUM199812-200004

main81240-44010-B0iCXM10,SXM1#199605-199804

main81240-44010-B1iCXM10,SXM1#199804-200105

81240BBULB, ROOM LAMP, NO.1

main90981-14011iCXM10,SXM1#199605

81241LENS, ROOM LAMP, NO.1

main81241-12020iCXM10,SXM1#199605

main81241-44010iCXM10,SXM1#199605

81250LAMP ASSY, ROOM, NO.2

main81250-44010-A0iSXM1#..IPSUM200004-200009

main81250-44010-B0iCXM10,SXM1#199605-199804

MOON MIST,TRIM1#

main81250-44010-B1iCXM10,SXM1#199804-200105

LT.BLUISH GRAY,TRIM1#

81250BBULB, ROOM LAMP, NO.2

main90981-14004iCXM10,SXM1#199605

81251LENS, ROOM LAMP, NO.2

main81251-28010iCXM10,SXM1#199605

81260ALAMP ASSY, MAP

main81260-20130-A0iSXM1#..IPSUM199910-200004

main81260-20130-B1iCXM10,SXM1#199605-199804

MOON MIST,TRIM1#

main81260-20130-B2iCXM10,SXM1#199804-200105

LT.BLUISH GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-12005×2iCXM10,SXM1#199605

81261LENS AND COVER, MAP LAMP

main81261-20130-A0iSXM1#..IPSUM200010-200104

main81261-20130-B1iCXM10,SXM1#199605-199804

MOON MIST,TRIM1#

main81261-20130-B2iCXM10,SXM1#199804

LT. BLUISH GRAY,TRIM1#

81870DLAMP ASSY, KEY CYLINDER

main81870-20050iCXM10,SXM1#199708

81870EBULB, KEY CYLINDER LAMP

main90981-11014iCXM10,SXM1#199708

8401

9016445005

main90164-45005

9046706132

main90467-06132

9351044016

main93510-44016

9354054016

main93540-54016

16 parts on this diagram · 1 diagram in section
