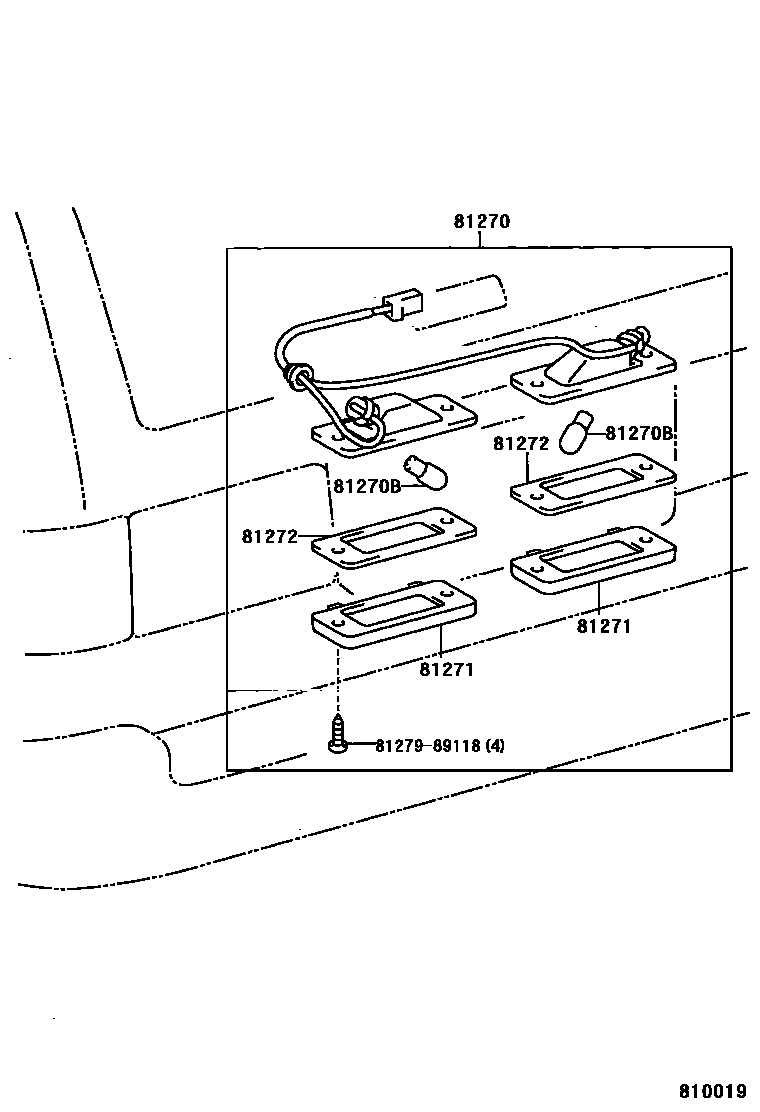

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-44020iCXM10,SXM1#199605

main81270-44030iCXM10,SXM1#199605

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2iCXM10,SXM1#199605

81271LENS, LICENSE PLATE LAMP

main81271-21110×2iCXM10,SXM1#199605

81272GASKET, LICENSE PLATE LAMP LENS

main81272-95J07×2iCXM10,SXM1#199605

8127989118WASHER, SIDE TURN SIGNAL LAMP

main81279-89118

5 parts on this diagram · 1 diagram in section
