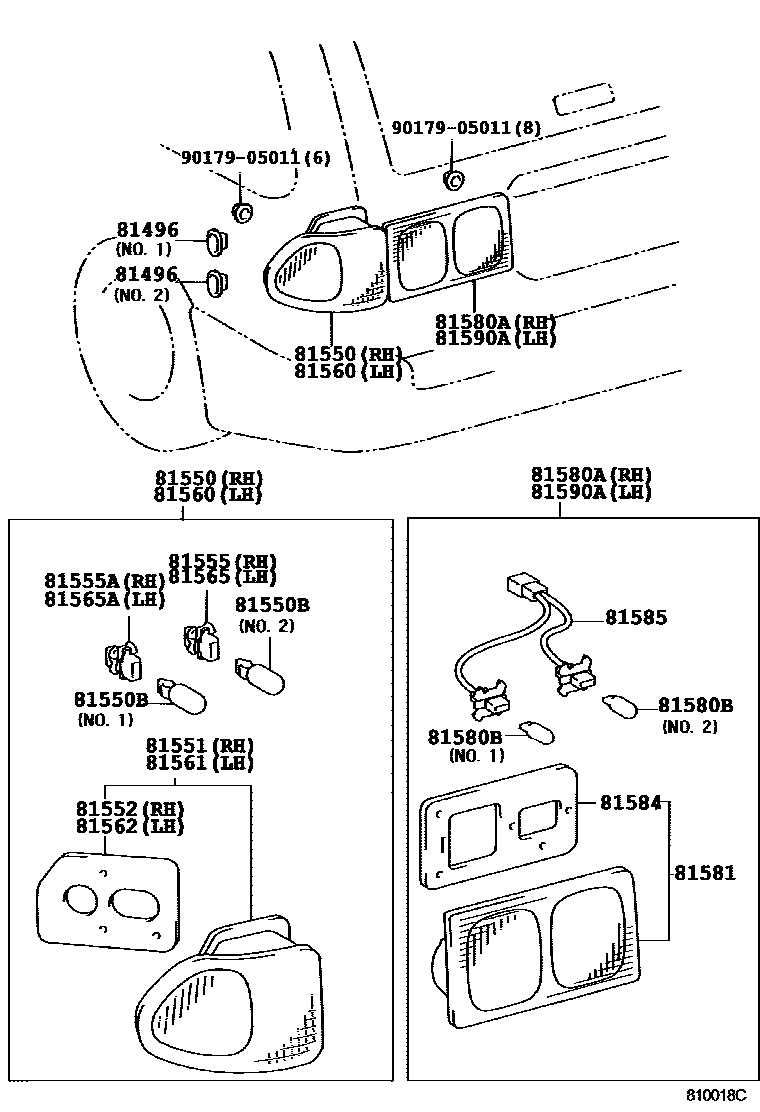

REAR COMBINATION LAMP

0001 1 0002 1

81496GUIDE, REAR COMBINATION LAMP

main81496-44010×2iCXM10,SXM1#199605

main81496-44020×2iCXM10,SXM1#199605

81550LAMP ASSY, REAR COMBINATION, RH

main81550-44010iCXM10,SXM1#199605-199804

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-13043×2iCXM10,SXM1#199605

main90981-13044×2iCXM10,SXM1#199605

81551LENS, REAR COMBINATION LAMP, RH

main81551-44010iCXM10,SXM1#199605-199804

main81551-44040iCXM10,SXM1#199804

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-44010iCXM10,SXM1#199605

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main90075-60002iCXM10,SXM1#199605

81555ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main90075-60003iCXM10,SXM1#199605

81560LAMP ASSY, REAR COMBINATION, LH

main81560-44010iCXM10,SXM1#199605-199804

81561LENS, REAR COMBINATION LAMP, LH

main81561-44010iCXM10,SXM1#199605-199804

main81561-44040iCXM10,SXM1#199804

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-44010iCXM10,SXM1#199605

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main90075-60002iCXM10,SXM1#199605

81565ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main90075-60003iCXM10,SXM1#199605

81580ALAMP ASSY, REAR

main81580-44010iCXM10,SXM1#199605-199804

81580BBULB (FOR REAR LAMP)

main90981-11039×2iCXM10,SXM1#199804

sub90981-11059

main90981-13043×2iCXM10,SXM1#199605-199804

main90981-13044×2iCXM10,SXM1#199605

81581LENS, REAR LAMP

main81581-44010iCXM10,SXM1#199605-199804

main81581-44040iCXM10,SXM1#199804

main81591-44010iCXM10,SXM1#199605-199804

main81591-44040iCXM10,SXM1#199804

81584PACKING, REAR LAMP RH

main81584-44010×2iCXM10,SXM1#199605-199804

81585SOCKET & WIRE, REAR LAMP

main81585-44010×2iCXM10,SXM1#199605-199804

main81585-44040×2iCXM10,SXM1#199804

81590ALAMP ASSY, REAR, LH

main81590-44010iCXM10,SXM1#199605-199804

9017905011

main90179-05011

19 parts on this diagram · 2 diagrams in section
