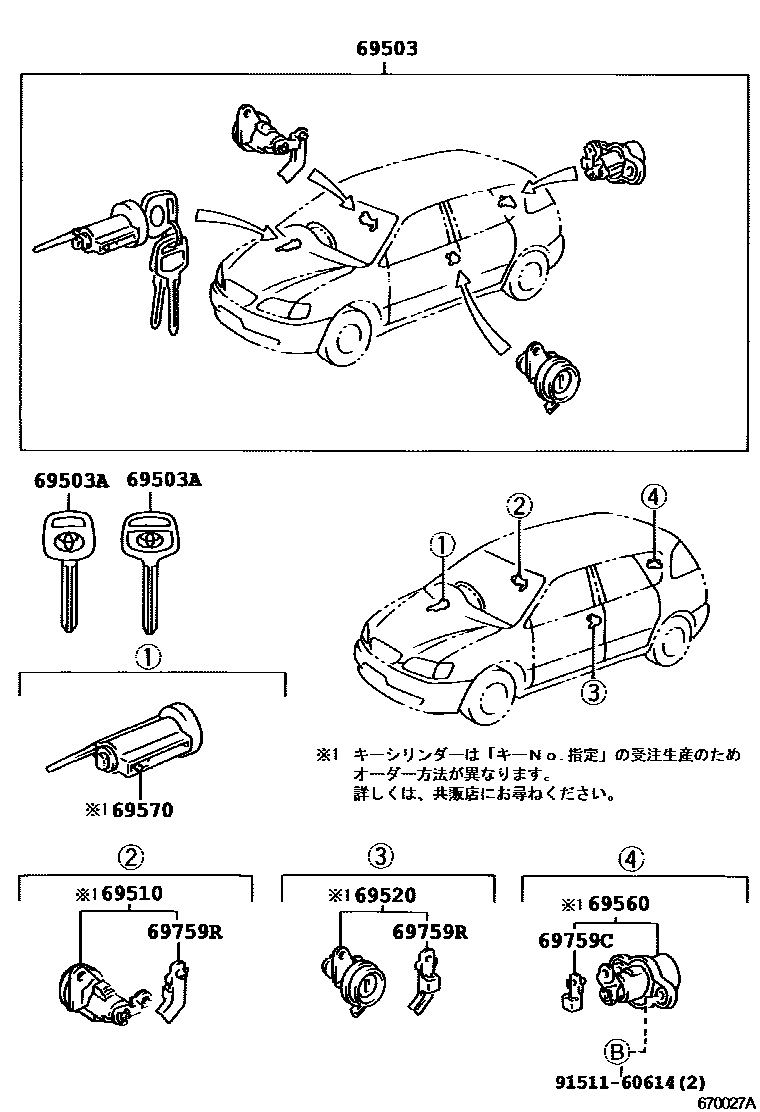

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-44010iSXM1#199605-199708

main69005-44040iCXM10,SXM1#199708-199804

main69005-44050iCXM10,SXM1#199804

69503AKEY, BLANK

main90999-00185iCXM10,SXM1#199605

main90999-00186×2iCXM10,SXM1#199605

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-44010iCXM10,SXM1#199804

main69510-44020iCXM10,SXM1#199605-199804

sub69510-20210

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-44010iCXM10,SXM1#199605-199804

sub69520-20200

main69520-44020iCXM10,SXM1#199804

69560CYLINDER ASSY, BACK DOOR LOCK

main69560-44010iCXM10,SXM1#199605-199804

main69560-44020iCXM10,SXM1#199804

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-44010iSXM1#199605-199708

main69570-44030iCXM10,SXM1#199708-199804

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-24090iCXM10,SXM1#199605

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-44010iCXM10,SXM1#199605

sub69759-12080

main69759-44020iCXM10,SXM1#199605

sub69759-12090

9151160614

main91511-60614

9 parts on this diagram · 1 diagram in section
