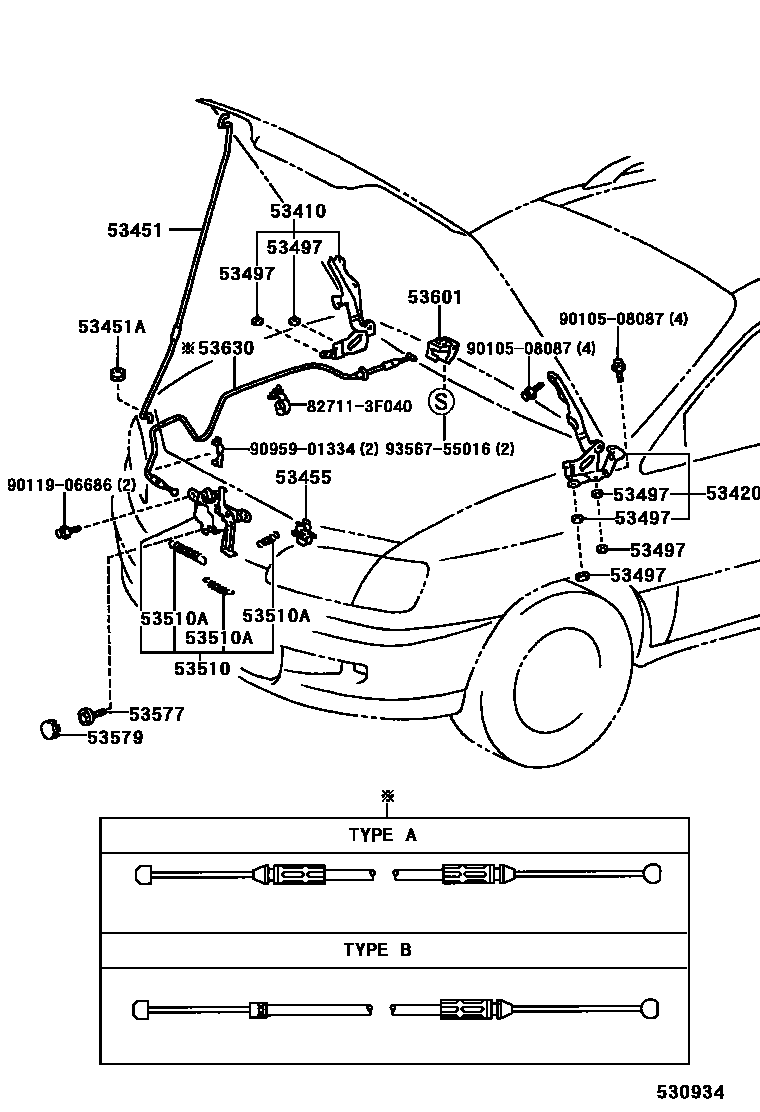

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-44010iCXM10,SXM1#199605

53420HINGE ASSY, HOOD, LH

main53420-44010iCXM10,SXM1#199605

53451ROD, HOOD SUPPORT

main53451-44020iCXM10,SXM1#199605

sub53451-44010

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15032iCXM10,SXM1#199605

53455CLAMP, HOOD SUPPORT ROD

main53455-44010iCXM10,SXM1#199605

sub53455-60020

53497PAD, HOOD HINGE, NO.1

main53497-12050×4iCXM10,SXM1#199605

main53497-16020iSXM1#..E,IPSUM,L199605-199804

main53498-16020iSXM1#..E,IPSUM,L199605-199804

53510LOCK ASSY, HOOD

main53510-44010iCXM10,SXM1#199605

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09057iCXM10,SXM1#199605

main90506-12067iCXM10,SXM1#199605

main90506-20065iCXM10,SXM1#199605

53577BOLT, HOOD LOCK

main53577-44010iCXM10,SXM1#199605

53579CAP, HOOD LOCK NUT

main53579-50010iCXM10,SXM1#199605

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-10020-C0iCXM10,SXM1#199605-199801

BLACK,TRIM1#

sub53601-20060

main53601-44010-C0iSXM1#..IPSUM199812-200004

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-44010iCXM10,SXM1#199605-199801

main53630-44030iCXM10,SXM1#199801

827113F040WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F040

9010508087

main90105-08087

9011906686

main90119-06686

9095901334

main90959-01334

9356755016

main93567-55016

17 parts on this diagram · 1 diagram in section
