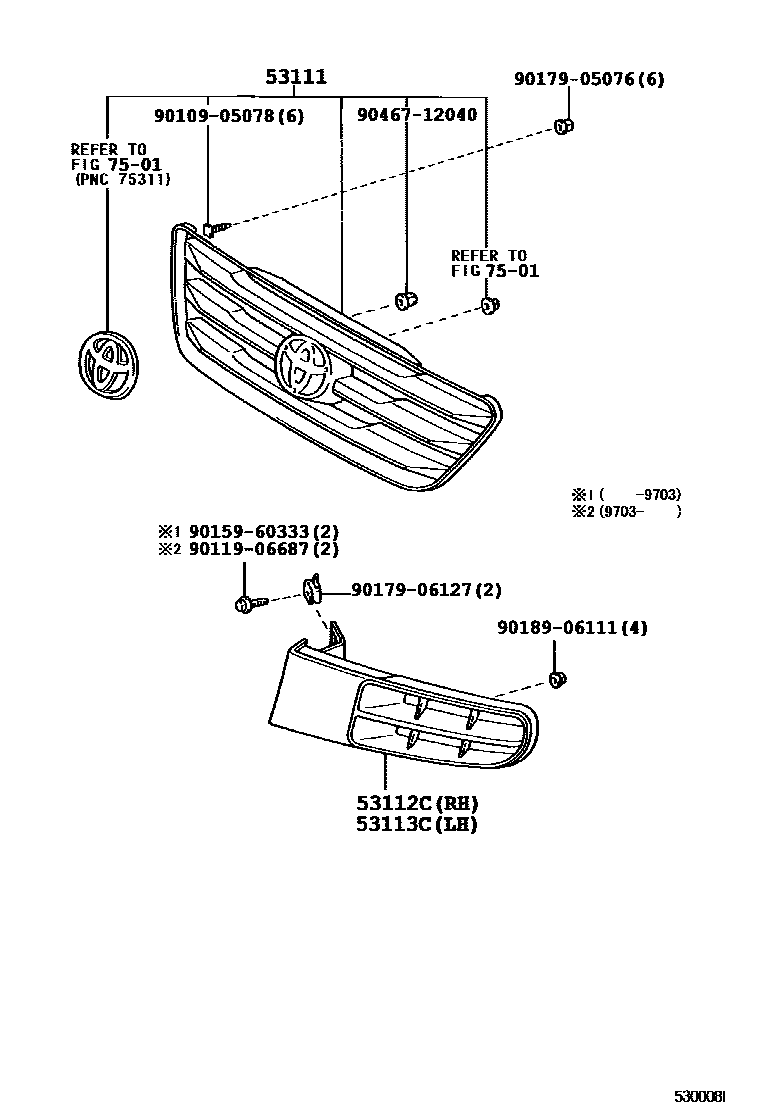

RADIATOR GRILLE

0001 1 0002 1

53111GRILLE, RADIATOR

main53101-44010-A0iCXM10,SXM1#199708-199804

WHITE,056

main53101-44010-A1iSXM1#..IPSUM,L199712-199804

main53101-44010-B0iCXM10,SXM1#..E,IPSUM,L199605-199804

SILVER ME,199

main53101-44010-C1iSXM1#..ATG199708-199804

BLACK,202

main53101-44010-D0iCXM10,SXM1#..E,IPSUM,L199605-199804

WINE RED MC,3J8

main53101-44010-G0iCXM10,SXM1#..E,IPSUM,L199605-199804

DK.GREEN M.M.,6N5

main53101-44010-G1iCXM10,SXM1#..E,IPSUM,L199605-199804

GREEN ME.OP.,6P4

main53101-44010-J1iCXM10,SXM1#..E,IPSUM,L199605-199804

DK.BLUE MM.GR.,8K5

main53101-44010-J2iCXM10,SXM1#..E,IPSUM,L199605-199804

PURPLISH BLUE M.M.,8K9

main53101-44010-K0iSXM10..E199712-199801

PURPLE M.M.OP.GR.,934

main53101-44050-A0iCXM10,SXM1#..E,IPSUM,L200004-200105

WHITE PM.,057

main53101-44050-A1iSXM1#..IPSUM200010-200104

main53101-44050-B0iSXM1#..IPSUM200004-200009

main53101-44050-B1iSXM1#..IPSUM199806

main53101-44050-C0iSXM1#..ATG199804-200004

BLACK,202

main53101-44050-D0iCXM10,SXM1#..E,IPSUM,L199804-200105

WINE RED MC,3J8

main53101-44050-D1iSXM1#..IPSUM199806

main53101-44050-F0iSXM1#..IPSUM200010-200104

main53101-44050-H0iCXM10,SXM1#..E,IPSUM,L199804-200105

DK.TURQUOISE MC.,760

main53101-44050-H1iCXM10,SXM1#..E,IPSUM,L200004-200105

TURQUOISE ME.,765

main53101-44050-J0iCXM10,SXM1#..E,IPSUM,L199804-200105

DK.BLUE MM.GR.,8K5

main53101-44050-J1iCXM10,SXM1#..E,IPSUM,L199804-200004

BLUE ME.AMC.,8N2

main53101-44050-J3iSXM1#..IPSUM199806

main53101-44110iSXM1#..ATG200004-200105

53112CGRILLE, RADIATOR, LOWER RH

main53112-44010-A0iCXM10,SXM1#..E,IPSUM,L199804-200004

SILVER ME,TRIM1#&199 ,8K5 ,8N2

main53112-44010-A3iSXM1#..IPSUM200010-200104

main53112-44010-A4iCXM10,SXM1#..E,IPSUM,L; SXM1#..ATG200004-200105

SILVER ME,199; SILVER ME,199 ,765 ,8K5

main53112-44010-B1iSXM10..E199804

main53112-44010-B2iSXM1#..IPSUM199806

main53112-44010-C0iSXM10..E199804

main53112-44010-C1iSXM1#..ATG199708-200105

BLACK,202

main53112-44010-D0iSXM1#..IPSUM199806

main53112-44010-F0iSXM10..E199804

main53112-44010-G0iCXM10,SXM1#..E,IPSUM,L199708-199804

YELLOW SILVER,056 ,3J8 ,6N5 ,6P4

main53112-44010-G2iCXM10,SXM1#..E,IPSUM,L200004-200105

YELLOW SILVER,057 ,3J8 ,760

main53112-44010-H0iSXM1#..IPSUM199812-200004

main53112-44010-J0iSXM1#..IPSUM199806

main53112-44030-G0iSXM1#..IPSUM,L199611-199707

main53112-44040-A0iSXM1#..ATG199708-199804

WHITE,056

main53112-44050-A0iCXM10,SXM1#199804-200105

WHITE RM.,057

53113CGRILLE, RADIATOR, LOWER LH

main53113-44010-A0iCXM10,SXM1#..E,IPSUM,L199708-199804

SILVER ME,199 ,8K5 ,8K9

main53113-44010-A3iSXM1#..IPSUM200004-200009

main53113-44010-A4iCXM10,SXM1#..E,IPSUM,L; SXM1#..ATG200004-200105

SILVER ME,199; SILVER ME,199 ,765 ,8K5

main53113-44010-B1iSXM10..E199804

main53113-44010-B2iSXM1#..IPSUM199806

main53113-44010-C0iSXM10..E199804

main53113-44010-C1iSXM1#..ATG199708-200105

BLACK,202

main53113-44010-D0iSXM1#..IPSUM199806

main53113-44010-F0iSXM10..E199804

main53113-44010-G0iCXM10,SXM1#..E,IPSUM,L199708-199804

YELLOW SILVER,056 ,3J8 ,6N5 ,6P4

main53113-44010-G2iCXM10,SXM1#..E,IPSUM,L200004-200105

YELLOW SILVER,057 ,3J8 ,760

main53113-44010-H0iSXM1#..IPSUM199812-200004

main53113-44010-J0iSXM1#..IPSUM199806

main53113-44030-G0iSXM1#..IPSUM,L199611-199707

main53113-44040-A0iSXM1#..ATG199708-199804

WHITE,056

main53113-44050-A0iCXM10,SXM1#199804-200105

WHITE RM.,057

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9010905078

main90109-05078

9011906687

main90119-06687

9015960333

main90159-60333

9017905076

main90179-05076

9017906127

main90179-06127

9018906111

main90189-06111

9046712040

main90467-12040

11 parts on this diagram · 2 diagrams in section
