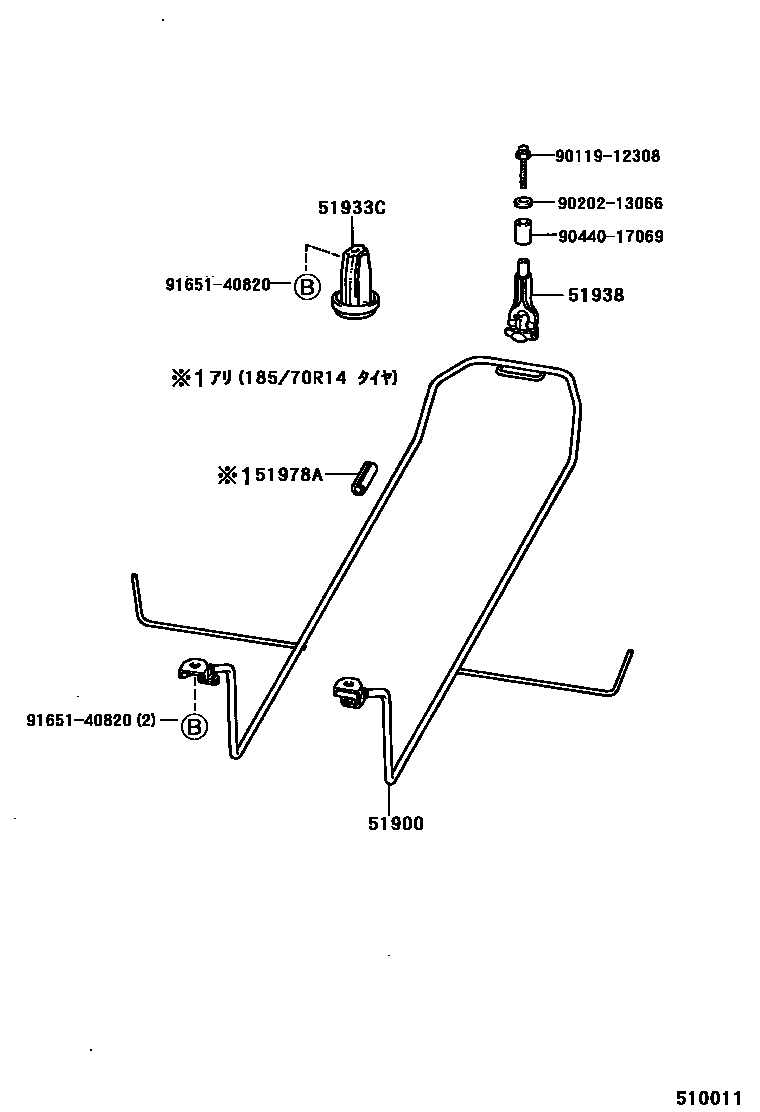

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51903-44010iCXM10,SXM1#199605-199804

main51903-44030iCXM10,SXM1#199804

51933CSTOPPER, SPARE WHEEL

main51904-44010iCXM10,SXM1#199605-199804

main51904-44011iCXM10,SXM1#199804

51938LOCK, SPARE WHEEL CARRIER

main51938-13040iCXM10,SXM1#199605

51978APROTECTOR, SPARE WHEEL CARRIER

main51978-44010×4iSXM1#..E199605-199708

9011912308

main90119-12308

9020213066

main90202-13066

9044017069

main90440-17069

9165140820

main91651-40820

8 parts on this diagram · 1 diagram in section
