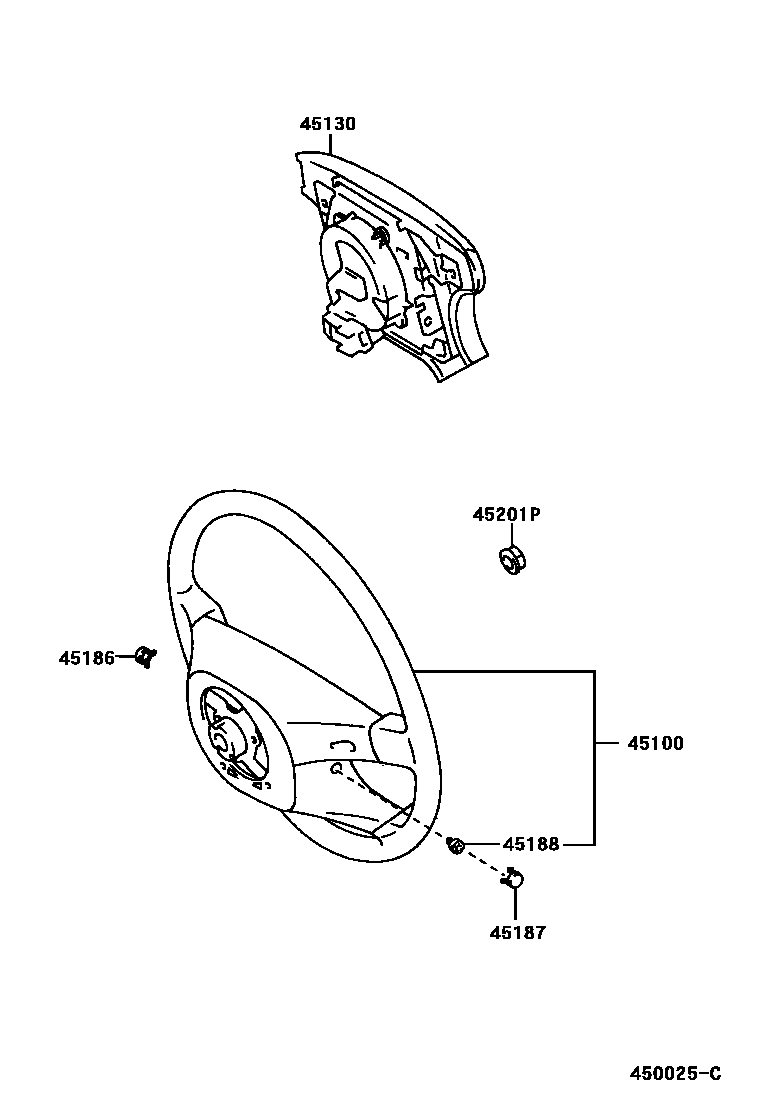

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-12860-B2iCXM10199709

main45100-22740-B1iSXM1#199610-199708

sub45100-22750

main45100-32310-B1iSXM1#199708-199804

main45100-32310-B2iSXM1#..IPSUM199812-200004

main45100-44010-B1iSXM1#199605-199610

main45100-44020-B1iSXM1#..IPSUM200010-200104

sub45100-44030

main45100-44020-C0iSXM1#..ATG199804

sub45100-44030

45130BUTTON ASSY, HORN

main45130-44010-B0iSXM1#199605-199708

MD.MOON MIST,TRIM1#

main45130-44020-B0iCXM10,SXM1#199708-199804

MD.MOON MIST,TRIM1#

main45130-44030-B0iCXM10,SXM1#..E,IPSUM,L199804-200105

MD.MOON MIST,TRIM1#

main45130-44030-B1iSXM1#..IPSUM199910-200004

main45130-44030-C0iSXM10..E199804

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-44010-B1iCXM10,SXM1#199605-199804

MD.MOON MIST,TRIM1#

main45186-44010-B5iSXM1#..IPSUM199812-200004

main45186-44010-C0iSXM1#..ATG199804-200105

BLACK,TRIM1#

45187COVER, STEERING WHEEL, LOWER NO.3

main45186-44010-B1iCXM10,SXM1#199605-199804

MD.MOON MIST,TRIM1#

main45186-44010-B5iSXM1#..IPSUM199812-200004

main45186-44010-C0iSXM1#..ATG199804-200105

BLACK,TRIM1#

45188SCREW, STEERING WHEEL PAD ATTACHING

main90148-60007×2iCXM10,SXM1#199605

45201PNUT, STEERING WHEEL SET

main90179-12071iCXM10,SXM1#199605

6 parts on this diagram · 1 diagram in section
