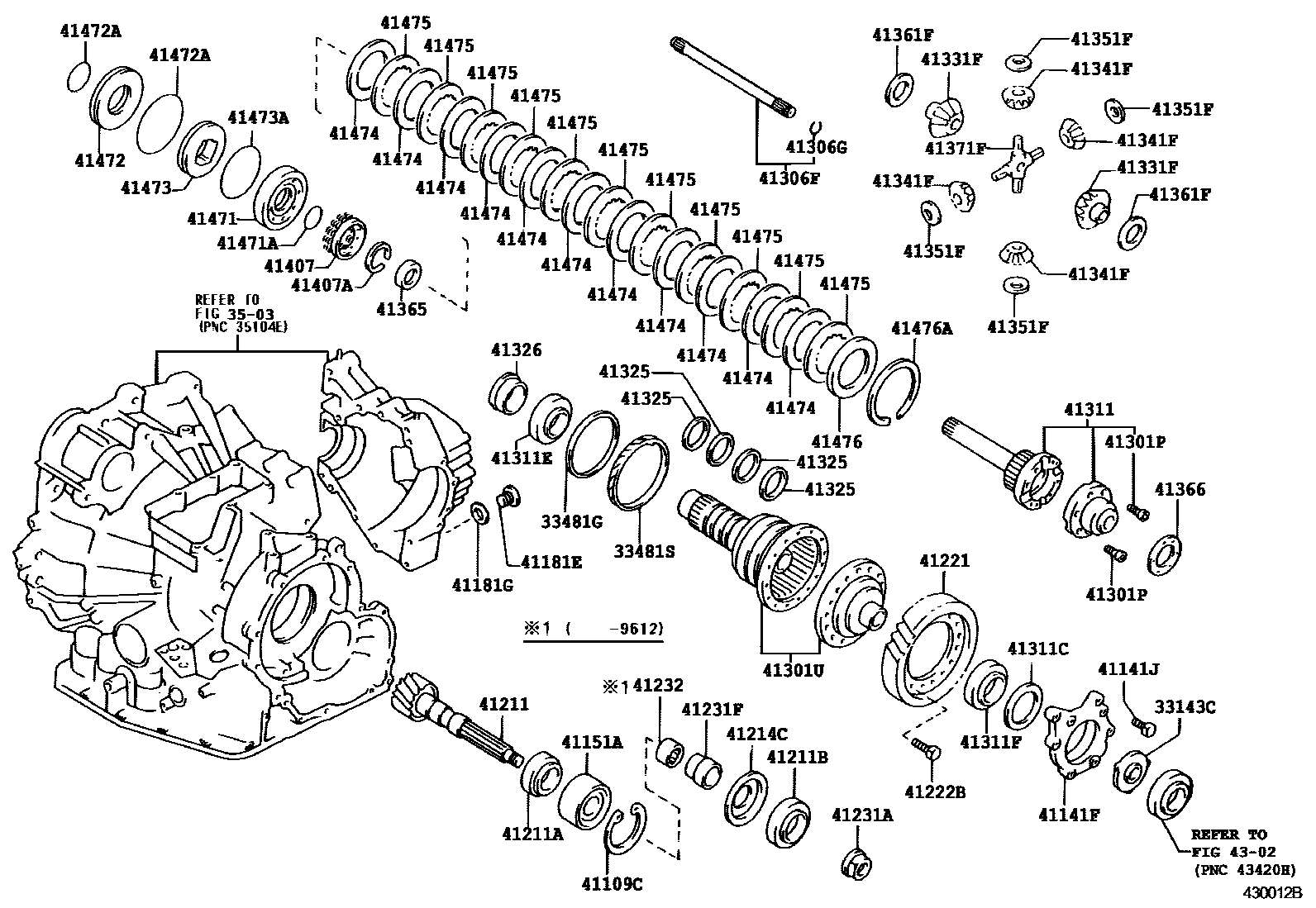

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1A540H 0002 1A241E,A247E 0003 1A243F

33143CBAFFLE, FRONT DIFFERENTIAL OIL

main33143-12010iSXM15199605-199804

33481GRING, SHAFT SNAP (FOR ATM SPEEDOMETER DRIVE GEAR)

main90520-99006iSXM15199605-199804

33481SGEAR, SPEEDOMETER DRIVE (ATM)

main33481-32010iCXM10,SXM10199605-199804

main33481-32050iSXM15199605-199804

3503

41109CRING, HOLE SNAP (FOR DIFF. DRIVE PINION BEARING CAGE)

main90521-79008iSXM15199605-199804

41141FRETAINER, FRONT DIFFERENTIAL SIDE BEARING

main41101-32030iSXM15199605-199804

41141JBOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)

main90105-08331×6iSXM15199605-199804

41151ACAGE, DIFF DRIVE PINION TAPER BEARING

main41151-32031iSXM15199605-199804

41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)

main90341-18021iSXM15199605-199804

41181GGASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)

main90430-18008iSXM15199605-199804

41211PINION, DIFFERENTIAL DRIVE

main41206-17030iCXM10199709-199804

main41206-20050iSXM10199605-199804

main41206-20080iSXM10199804

main41211-33020iSXM15199605-199804

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90366-30053iSXM10199804

sub90366-30085

main90366-30054iCXM10,SXM10199605-199804

main90366-36003iSXM15199605-199804

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90366-30053iCXM10,SXM15199804

sub90366-30085

main90366-30054iSXM10199804

main90366-40051iSXM15199605-199804

41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL

main41214-32020iSXM15199605-199804

41221GEAR, FRONT DIFFERENTIAL RING

main41221-17030iCXM10199709

main41221-20290iSXM10199605

main41221-21080iSXM15199804

main41221-32140iSXM15199605-199804

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11353×10iSXM15199804

main90105-12150×12iSXM15199605-199804

41231ANUT, DRIVE PINION LOCK

main90179-24006iSXM15199605-199804

41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING

main41231-17010iCXM10,SXM10199605-199804

main41231-32020iSXM15199605-199612

main41231-45010iSXM15199612-199804

41232SPACER, DRIVE PINION BEARING, NO.2

main41232-32011iSXM15199605-199612

41301PSCREW(FOR FRONT DIFFERENTIAL CASE)

main90149-80017×8iSXM15199605-199804

41301UCASE SUB-ASSY, FRONT DIFFERENTIAL RING GEAR MOUNTING

main41301-32040iSXM15199605-199804

41306FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR INTER

main41306-32010iSXM15199605-199804

41306GRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR INTER SHAFT)

main90521-26004iSXM15199605-199804

41311CASE, FRONT DIFFERENTIAL

main41301-20112iCXM10,SXM10199605

main41301-21050iSXM15199804

main41302-32030iSXM15199605-199804

41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)

main90564-76001iSXM15199605-199804

main90564-76002iSXM15199605-199804

main90564-76003iSXM15199605-199804

main90564-76004iSXM15199605-199804

main90564-76005iSXM15199605-199804

main90564-76006iSXM15199605-199804

main90564-76007iSXM15199605-199804

main90564-76008iSXM15199605-199804

main90564-76009iSXM15199605-199804

main90564-76010iSXM15199605-199804

main90564-76011iSXM15199605-199804

main90564-76012iSXM15199605-199804

main90564-76013iSXM15199605-199804

main90564-76014iSXM15199605-199804

main90564-76015iSXM15199605-199804

main90564-76016iSXM15199605-199804

main90564-76017iSXM15199605-199804

main90564-76018iSXM15199605-199804

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90366-50045iSXM15199804

main90366-67004iSXM15199605-199804

main90368-40002iCXM10,SXM10199605

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90366-44001iCXM10,SXM1#199804

main90366-55034iSXM15199605-199804

41325RING, FRONT DIFFERENTIAL RING GEAR MOUNTING CASE OIL SEAL

main41325-12010×4iSXM15199605-199804

41326SLEEVE, RING GEAR MOUNTING CASE

main41326-32010iSXM15199605-199804

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-12030×2iSXM15199605-199804

main41331-32010×2iCXM10,SXM10199605-199804

41341FPINION, FRONT DIFFERENTIAL

main41341-20011×4iSXM15199605-199804

main41341-30011×2iCXM10,SXM10199605-199804

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-32010×2iCXM10,SXM10199605-199804

main41351-32030×4iSXM15199605-199804

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-12340×2iSXM15199605-199804

main41361-12350×2iSXM15199605-199804

main41361-12360×2iSXM15199605-199804

main41361-12370×2iSXM15199605-199804

main41361-12380×2iSXM15199605-199804

main41361-12390×2iSXM15199605-199804

main41361-12400×2iSXM15199605-199804

main41361-17010×2iCXM10,SXM10199605-199804

main41361-17020×2iCXM10,SXM1#199804

main41361-17030×2iCXM10,SXM10199605-199804

main41361-17040×2iCXM10,SXM10199605-199804

main41361-17050×2iCXM10,SXM10199605-199804

main41361-17060×2iCXM10,SXM10199605-199804

41365WASHER, FRONT DIFFERENTIAL SIDE TRUST, NO.1

main41365-12010iSXM15199605-199804

41366WASHER, FRONT DIFFERENTIAL SIDE TRUST, NO.2

main41366-12010iSXM15199605-199804

41371FSPIDER, FRONT DIFFERENTIAL

main41371-32020iSXM15199605-199804

41407SPRING SUB-ASSY, DIFFERENTIAL LOCK PISTON RETURN

main41407-32010iSXM15199605-199804

41407ARING, SHAFT SNAP (FOR DIFF LOCK PISTON RETURN SPRING)

main90520-43008iSXM15199605-199804

41471PISTON, DIFFERENTIAL LOCK CLUTCH, NO.1

main41471-32010iSXM15199605-199804

41471ARING, O (FOR DIFFERENTIAL LOCK CLUTCH PISTON NO.1)

main90301-46002iSXM15199605-199804

41472PISTON, DIFFERENTIAL LOCK CLUTCH, NO.2

main41472-32010iSXM15199605-199804

41472ARING, O (FOR DIFFERENTIAL LOCK CLUTCH PISTON NO.2)

main90301-59004iSXM15199605-199804

main90301-99055iSXM15199605-199804

41473SLEEVE, DIFFERENTIAL LOCK CLUTCH PISTON REACTION

main41473-32010iSXM15199605-199804

41473ARING, O (FOR PISTON REACTION SLEEVE)

main90301-96001iSXM15199605-199804

41474PLATE, DIFFERENTIAL LOCK CLUTCH

main41474-32011×11iSXM15199605-199611

main41474-32020×11iSXM15199611-199804

41475DISC, DIFFERENTIAL LOCK CLUTCH

main41475-32020×11iSXM15199605-199611

main41475-32030×11iSXM15199611-199804

41476FLANGE, DIFFERENTIAL LOCK CLUTCH

main41476-32011iSXM15199605-199804

41476ARING, HOLE SNAP (FOR DIFFERENTIAL LOCK CLUTCH FLANGE)

main90521-99061iSXM15199605-199804

4302

49 parts on this diagram · 3 diagrams in section
