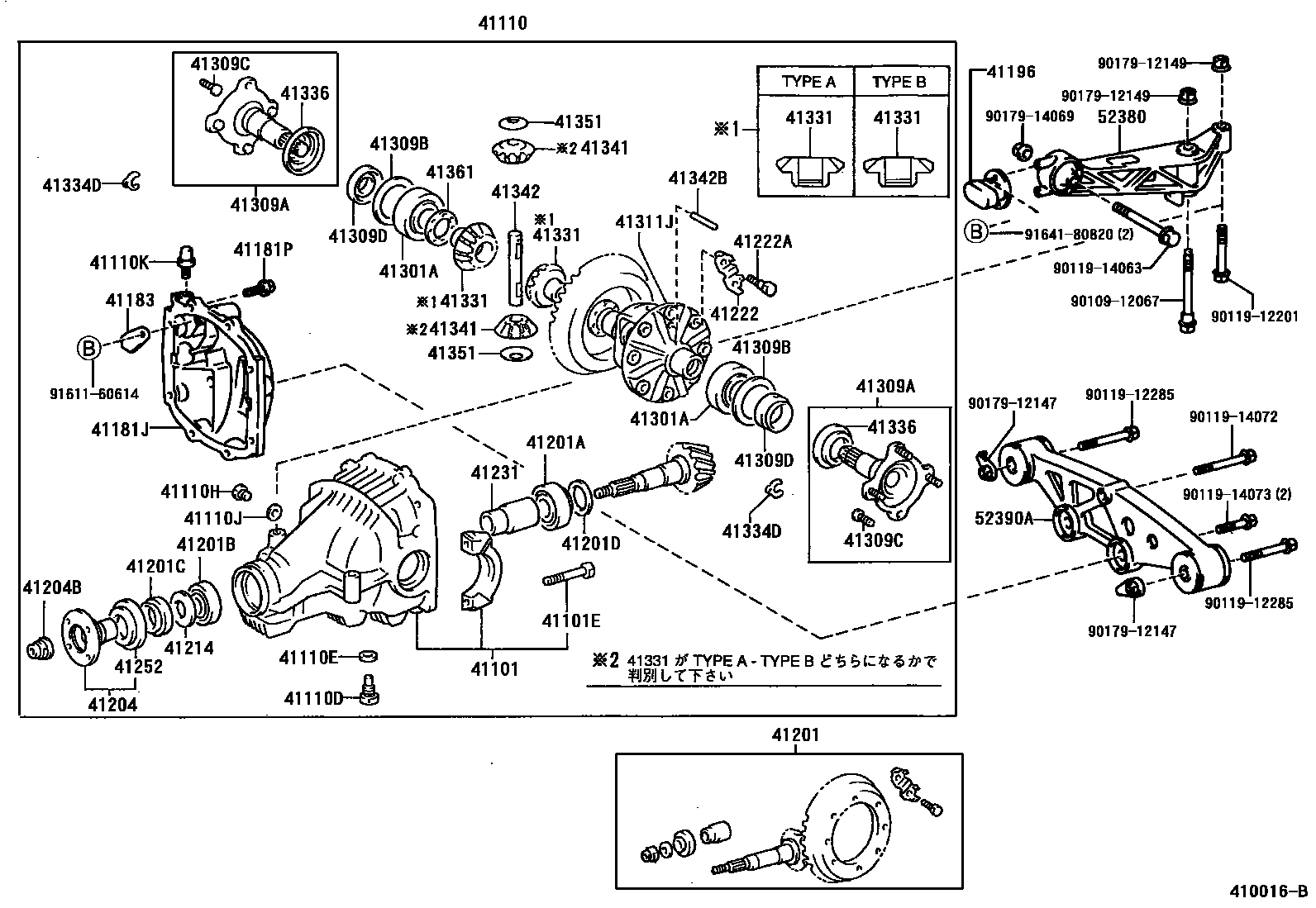

REAR AXLE HOUSING & DIFFERENTIAL
41101EBOLT (FOR REAR DIFFERENTIAL CARRIER)
41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)
41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)
41110HPLUG (FOR REAR DIFFERENTIAL FILLER)
41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)
41110KPLUG, BREATHER (FOR REAR DIFFERENTIAL)
41181JCOVER, REAR DIFFERENTIAL CARRIER
41181PBOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING)
sub90105-10361
41196DAMPER, REAR DIFFERENTIAL DYNAMIC
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41309BWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41309CBOLT (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41309DSEAL OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41311JCASE, REAR DIFFERENTIAL
41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41342BPIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT)
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
9010912067
main90109-12067
9011912201
main90119-12201
9011912285
main90119-12285
9011914063
main90119-14063
9011914072
main90119-14072
9011914073
main90119-14073
9017912147
main90179-12147
9017912149
main90179-12149
9017914069
main90179-14069
9161160614
main91611-60614
9164180820
main91641-80820
51 parts on this diagram · 3 diagrams in section
