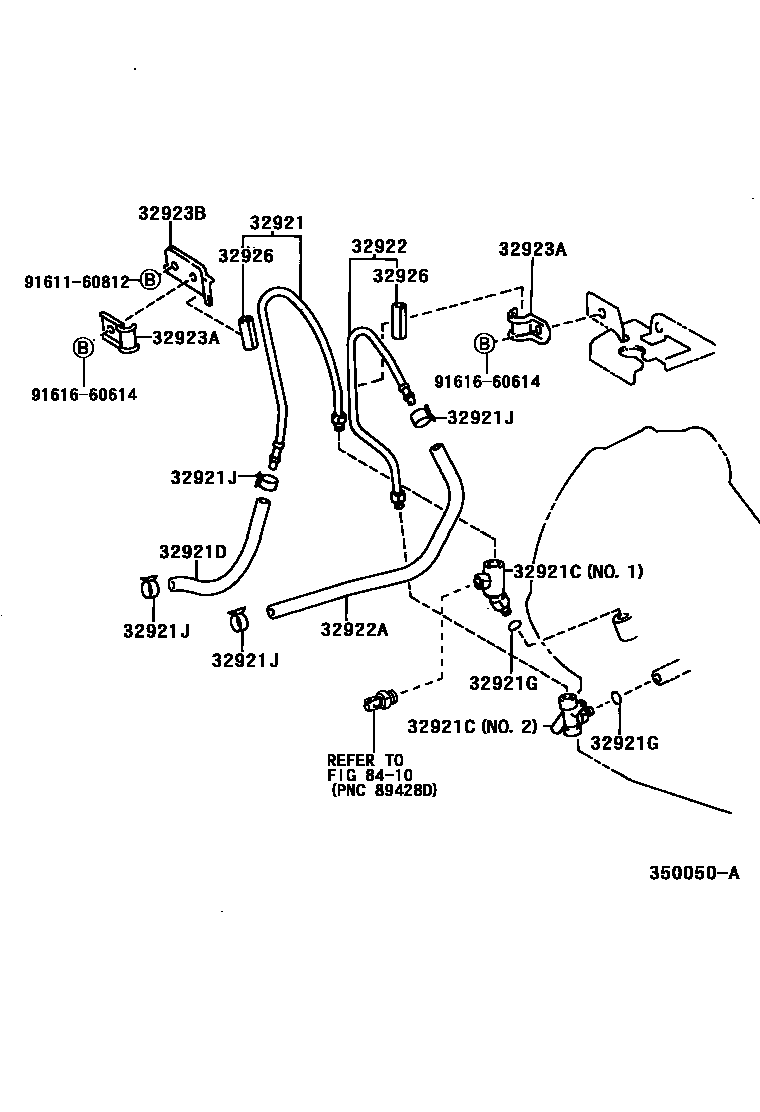

OIL COOLER & TUBE (ATM)

0001 1A540H 0002 1A241E 0004 1A247E 0005 1A243F

32921TUBE, OIL COOLER INLET, NO.1

main32921-44010iSXM10199605-199804

sub32921-44020

main32921-44030iSXM15199605-199804

main32921-44040iCXM10199709

main32921-44050iSXM15199804

main32921-44060iSXM10199804

32921CUNION(FOR OIL COOLER TUBE)

main32901-32050iSXM15199605-199804

main32918-32010iSXM15199605-199804

main90404-16031iSXM15199804

main90404-16032×2iSXM10199804

main90407-16036iSXM15199804

32921DHOSE(FOR OIL COOLER INLET)

main90445-17103iSXM15199605-199804

main90445-17115iSXM10199605-199804

main90445-17117iSXM10199804

main90445-17134iCXM10199709

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iCXM10,SXM15199804

main90301-11006×2iSXM10199804

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16013×4iCXM10,SXM1#199605

sub90467-16022

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-44010iSXM15199804

main32922-44030iSXM15199605-199804

main32922-44040iCXM10199709

main32922-44050iSXM10199804

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-35011iSXM10199804

main90445-17124iCXM10199709

main90445-17128iSXM15199804

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-44020iSXM10199804

main90462-12071×2iSXM15199605-199804

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-32060iSXM15..E,IPSUM,L199605-199804

main32923-44010iCXM10,SXM15199804

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-20010×2iCXM10,SXM1#199605

8410

9161160812

main91611-60812

9161660614

main91616-60614

13 parts on this diagram · 4 diagrams in section
