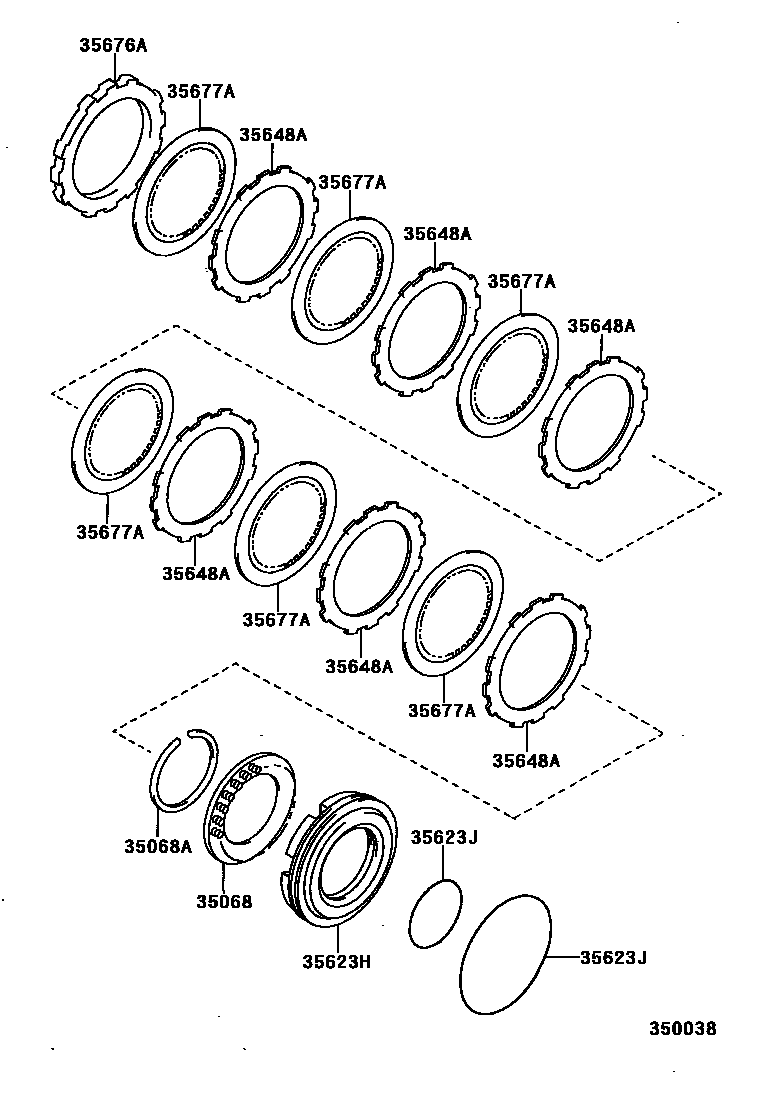

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1A540H 0002 1A241E,A243F,A247E

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-12010iSXM10199804

main35068-20010iCXM10,SXM10199701-199804

main35068-32010iSXM10199605-199701

sub35068-20010

main35068-32020iSXM15199605-199804

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-86004iSXM15199605-199804

main90520-90001iCXM10,SXM1#199605-199804

35623HPISTON, 1ST & REVERSE BRAKE

main35623-12030iSXM10199804

main35623-12050iSXM10199605-199701

main35623-20030iCXM10,SXM10199701-199804

main35623-32040iSXM15199605-199804

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-90001iSXM15199605-199804

main90301-94001iCXM10,SXM10199605-200008

main90301-94004iSXM10200008

main90301-99022iCXM10,SXM1#199605-200008

main90301-99131iSXM10200008

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-12020iSXM10199804

main35648-32020iCXM10,SXM1#199605-199804

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-12030iCXM10,SXM1#199605

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-12060iCXM10,SXM15199605-199804

main35677-20070iSXM10199804

main35677-32060iSXM15199605-199804

7 parts on this diagram · 2 diagrams in section
