TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

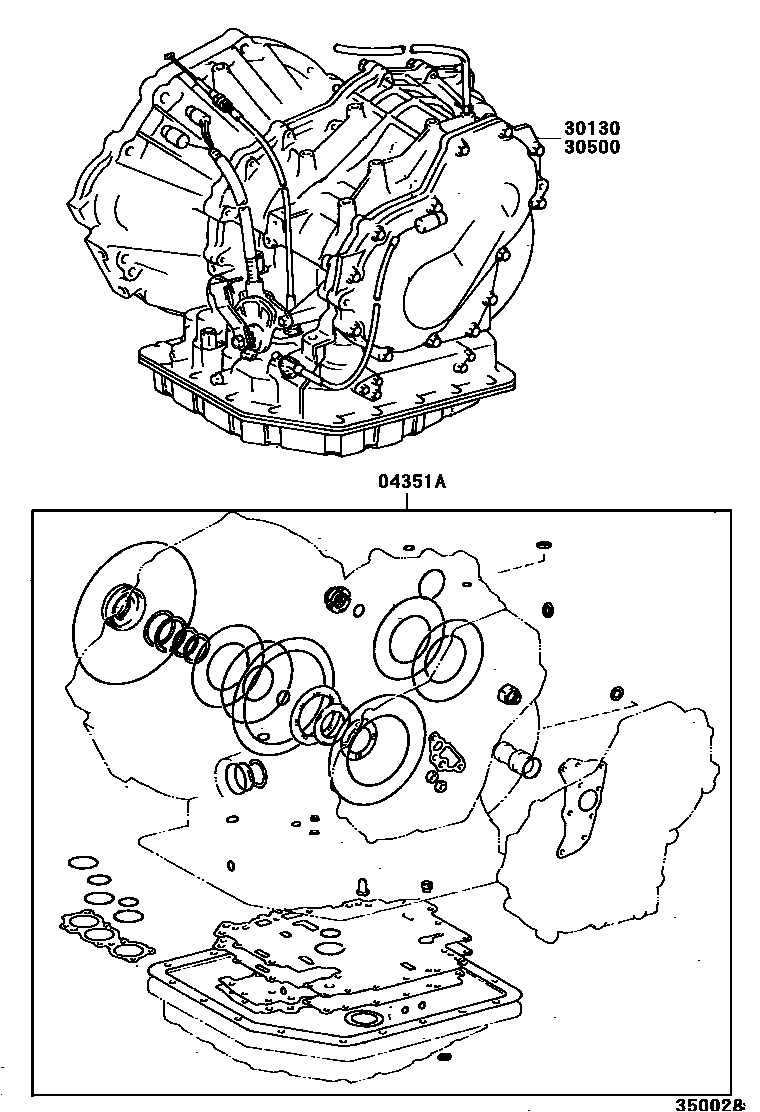

Parts diagram
04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)
main04351-16090i199605-199804
main04351-21020i199804
main04351-42010i199605-199804
main04351-42020i199804
30130TRANSAXLE ASSY, REBUILT
main30130-44010i199605-199804
main30130-44040i199709
sub30130-44230
main30130-44050i199804
sub30130-44221
main30130-44060i199804
30500TRANSAXLE ASSY, AUTOMATIC
main30500-44010i199605-199804
main30500-44040i199709-199804
main30500-44050i199804
main30500-44060i199804
main30500-44100i199804

3 parts on this diagram · 2 diagrams in section
