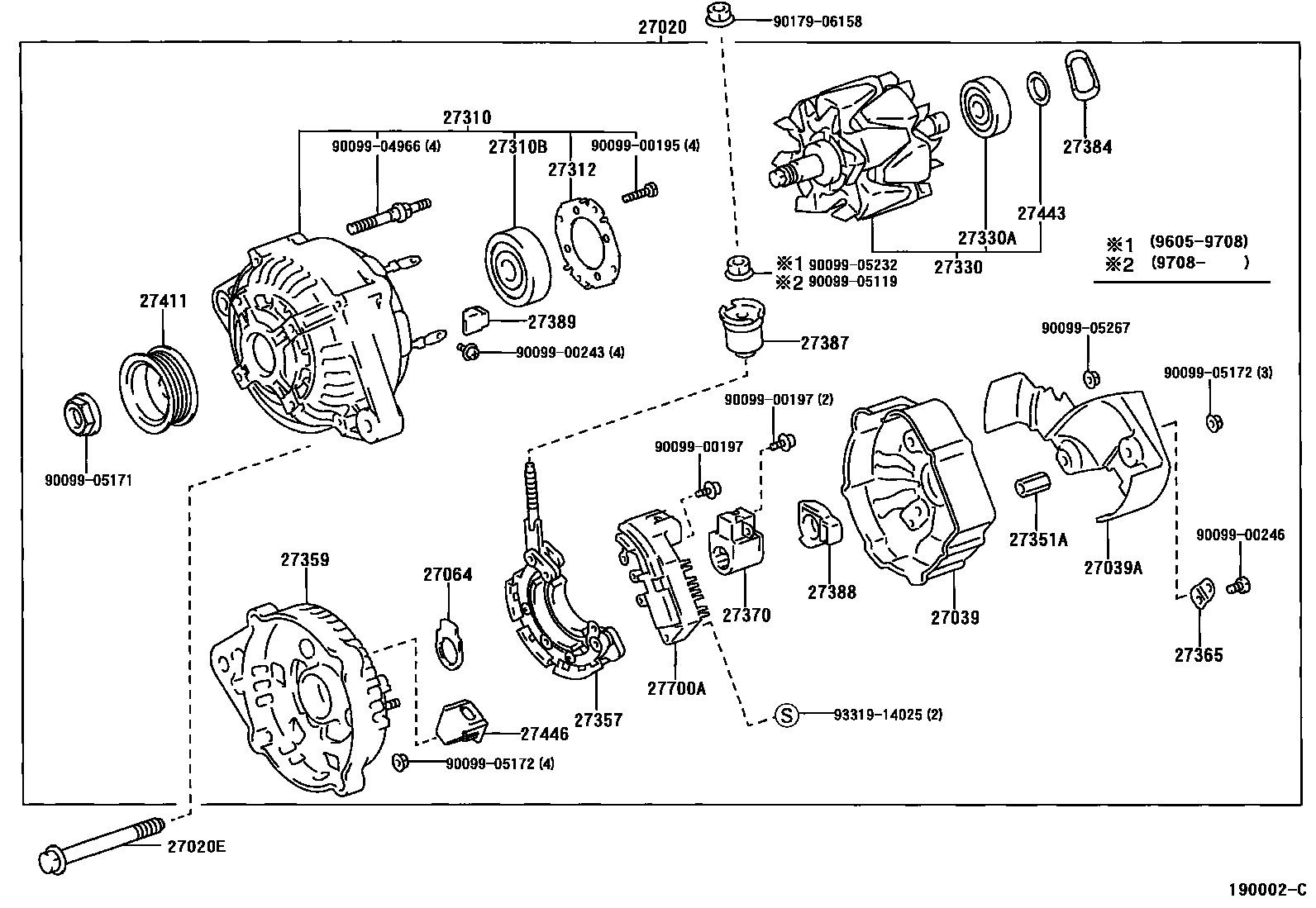

ALTERNATOR

0001 1 0002 1

27020ALTERNATOR ASSY

main27060-64340i3CTE..CXM10199709

main27060-74620i3SFE..SXM1#199605

27020EBOLT(FOR ALTERNATOR)

main90105-10249i3SFE..SXM1#199605

main90901-05004i3CTE..CXM10199709

27039COVER, ALTERNATOR REAR END

main27039-20060i3CTE..CXM10199709-200104

main27039-20160i3CTE..CXM10200104-200105

main27039-55080i3SFE..SXM1#199605-200104

sub27039-70470

main27039-70470i3SFE..SXM1#200104-200105

27039ACOVER, ALTERNATOR REAR END, NO.2

main27039-74440i3SFE..SXM1#199605

27064SEAL, ALTERNATOR PLATE

main27064-42010i3CTE,3SFE..CXM10,SXM1#199605

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-64490i3CTE..CXM10199709

main27310-74490i3SFE..SXM1#199605

sub27310-70440

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10192i3CTE,3SFE..CXM10,SXM1#199605

27312PLATE, RETAINER

main27312-42010i3CTE,3SFE..CXM10,SXM1#199605

27330ROTOR ASSY, ALTERNATOR

main27330-20070i3CTE..CXM10200007

main27330-64520i3CTE..CXM10199709-200007

sub27330-20070

main27330-74550i3SFE..SXM1#199605

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i3CTE,3SFE..CXM10,SXM1#199605

27351ACOLLAR, ADJUSTING ALTERNATOR

main27351-74120i3SFE..SXM1#199605

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-16310i3SFE..SXM1#199605

main27357-20060i3CTE..CXM10199709

27359FRAME, ALTERNATOR RECTIFIER END

main27359-64490i3CTE..CXM10199709

main27359-74550i3SFE..SXM1#..E,IPSUM,L199605-199804

sub27359-70440

27365PLATE, TERMINAL

main27365-55080i3CTE,3SFE..CXM10,SXM1#199605

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-75060i3CTE,3SFE..CXM10,SXM1#199605

27384WASHER

main27384-50030i3CTE,3SFE..CXM10,SXM1#199605

27387INSULATOR, TERMINAL

main27387-42020i3SFE..SXM1#199605-199708

main27387-42021i3CTE,3SFE..CXM10,SXM1#199708

27388COVER, ALTERNATOR BRUSH

main27388-42010i3SFE..SXM1#199605

main27388-46220i3CTE..CXM10199709

27389INSULATOR, TERMINAL

main27389-42010i3CTE,3SFE..CXM10,SXM1#199605

27411PULLEY, ALTERNATOR

main27411-64490i3CTE..CXM10199709

main27411-74550i3SFE..SXM1#199605

27443COVER, ALTERNATOR BEARING

main27443-63020i3CTE,3SFE..CXM10,SXM1#199605

27446CLIP, ALTERNATOR CORD

main27446-64450i3CTE..CXM10199709

main27446-74370i3SFE..SXM1#199605

27700AREGULATOR ASSY, GENERATOR

main27700-62010i3CTE..CXM10199709

main27700-74040i3SFE..SXM1#199605

9009900195

main90099-00195

9009900197

main90099-00197

9009900243

main90099-00243

9009900246

main90099-00246

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9009905232

main90099-05232

9009905267

main90099-05267

9017906158

main90179-06158

9331914025

main93319-14025

35 parts on this diagram · 2 diagrams in section
