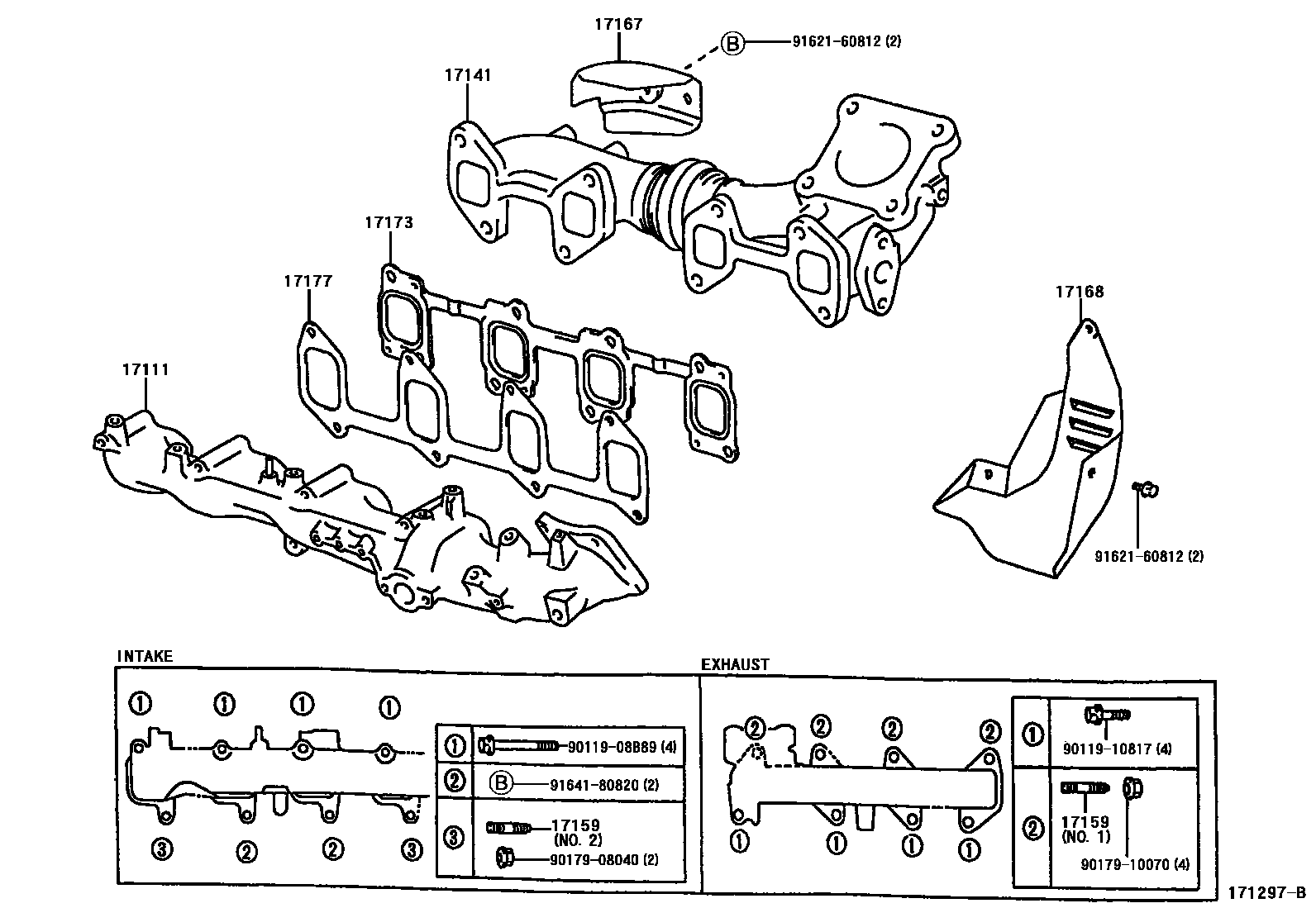

MANIFOLD

0001 1 0002 1 0003 1

17111MANIFOLD, INTAKE

main17101-64190i3CTE..CXM10199709-199905

sub17101-64191

sub90464-00082

sub90999-92002

main17101-64191i3CTE..CXM10199905

main17101-74320i3SFE..SXM1#199605

17141MANIFOLD, EXHAUST

main17104-64030i3CTE..CXM10199709

main17141-74031i3SFE..SXM1#199605

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-10063i3SFE..SXM1#199605

main90126-10017i3CTE..CXM10199709

main92122-60820i3CTE..CXM10199709

main92122-60822i3SFE..SXM1#199605

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-64031i3CTE..CXM10199709

main17167-74141i3SFE..SXM1#199605

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-64071i3CTE..CXM10199709

main17168-74020i3SFE..SXM1#199605

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-64090i3CTE..CXM10199709

main17173-74040i3SFE..SXM1#199605

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-64020i3CTE..CXM10199709

main17177-74070i3SFE..SXM1#199605

9011908B89

main90119-08B89

9011910817

main90119-10817

9017908040

main90179-08040

9017910070

main90179-10070

9162160812

main91621-60812

9164180820

main91641-80820

13 parts on this diagram · 3 diagrams in section
