V-BELT

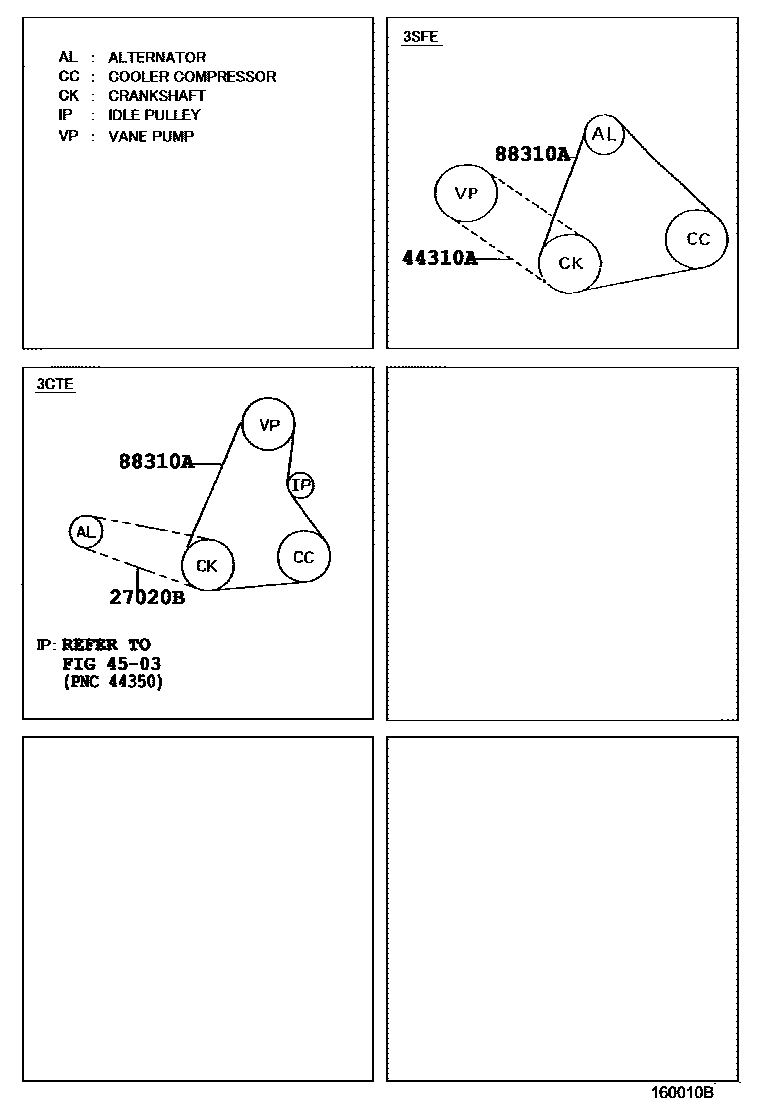

Parts diagram
27020BBELT, V(FOR ALTERNATOR)
main90916-02447i199709
44310ABELT, V(FOR VANE PUMP)
main99363-30760i199803
sub99363-90760
main99363-80760i199605-199803
sub99363-90760
main99363-90760i199605
sub90916-02641
4503
88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
main90916-02467i199807-200004
main99365-21220i199709-200105
sub99365-81220
main99365-31080i200004-200105
main99365-31080i199807-200004
main99365-31090i199704-199807
sub99365-91090
main99365-81090i199605-199704
sub99365-91090
main99365-81220i199709-200105
main99365-91090i199708-199807
main99365-91090i199605-199708

4 parts on this diagram · 1 diagram in section
