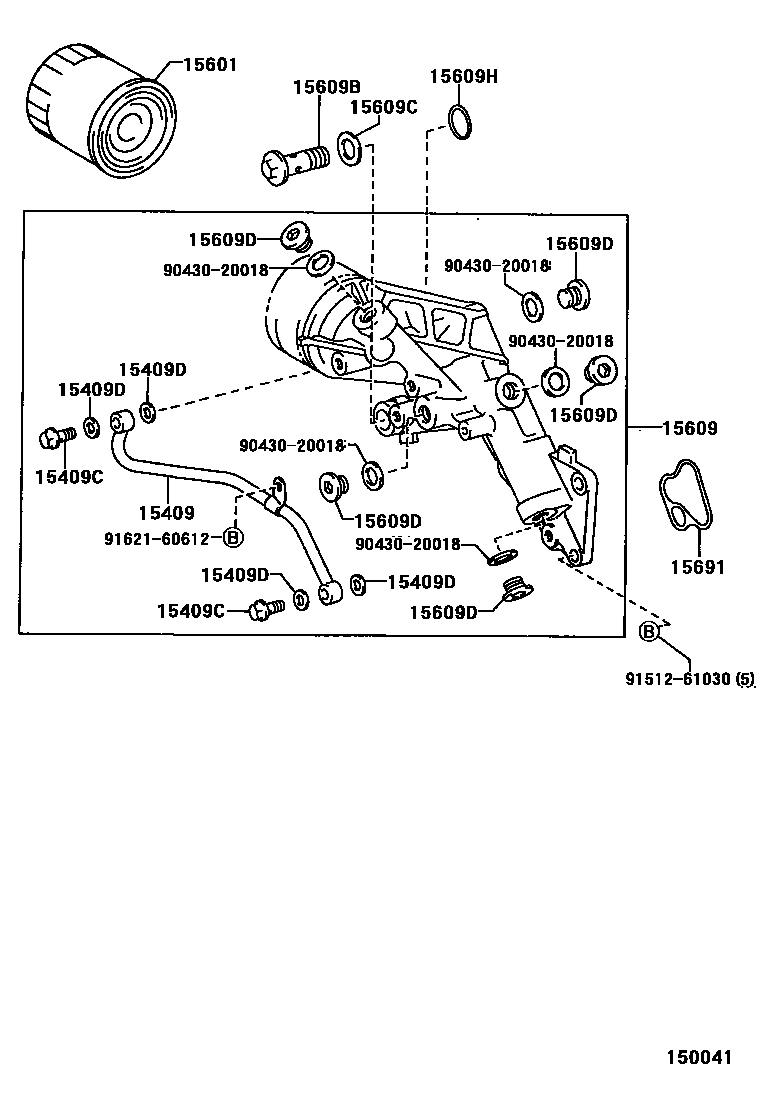

OIL FILTER

0001 1 0002 1

15409PIPE OR HOSE, OIL FILTER OUTLET

main15431-64061i3CTE..CXM10199709

15409CBOLT, UNION(FOR OIL FILTER OUTLET PIPE)

main90401-10031×2i3CTE..CXM10199709

15409DGASKET(FOR OIL FILTER OUTLET PIPE)

main90430-10015×4i3CTE..CXM10199709

15601FILTER SUB-ASSY, OIL

main90915-10001i3SFE..SXM1#199605-199911

main90915-10003i3SFE..SXM1#199911

sub90915-10009

main90915-30003i3CTE..CXM10199709

15609BRACKET SUB-ASSY, OIL FILTER

main15609-64070i3CTE..CXM10199709

15609BUNION(FOR OIL FILTER BRACKET)

main90401-18020i3CTE..CXM10199709

15609CGASKET(FOR OIL FILTER BRACKET UNION)

main90430-20014i3CTE..CXM10199709

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20002×5i3CTE..CXM10199709

15609HRING, O(FOR OIL FILTER BRACKET)

main90301-22004i3CTE..CXM10199709

15691GASKET, OIL FILTER

main15691-64040i3CTE..CXM10199709-199804

main15691-64041i3CTE..CXM10199804

9043020018

main90430-20018

9151261030

main91512-61030

9162160612

main91621-60612

13 parts on this diagram · 2 diagrams in section
