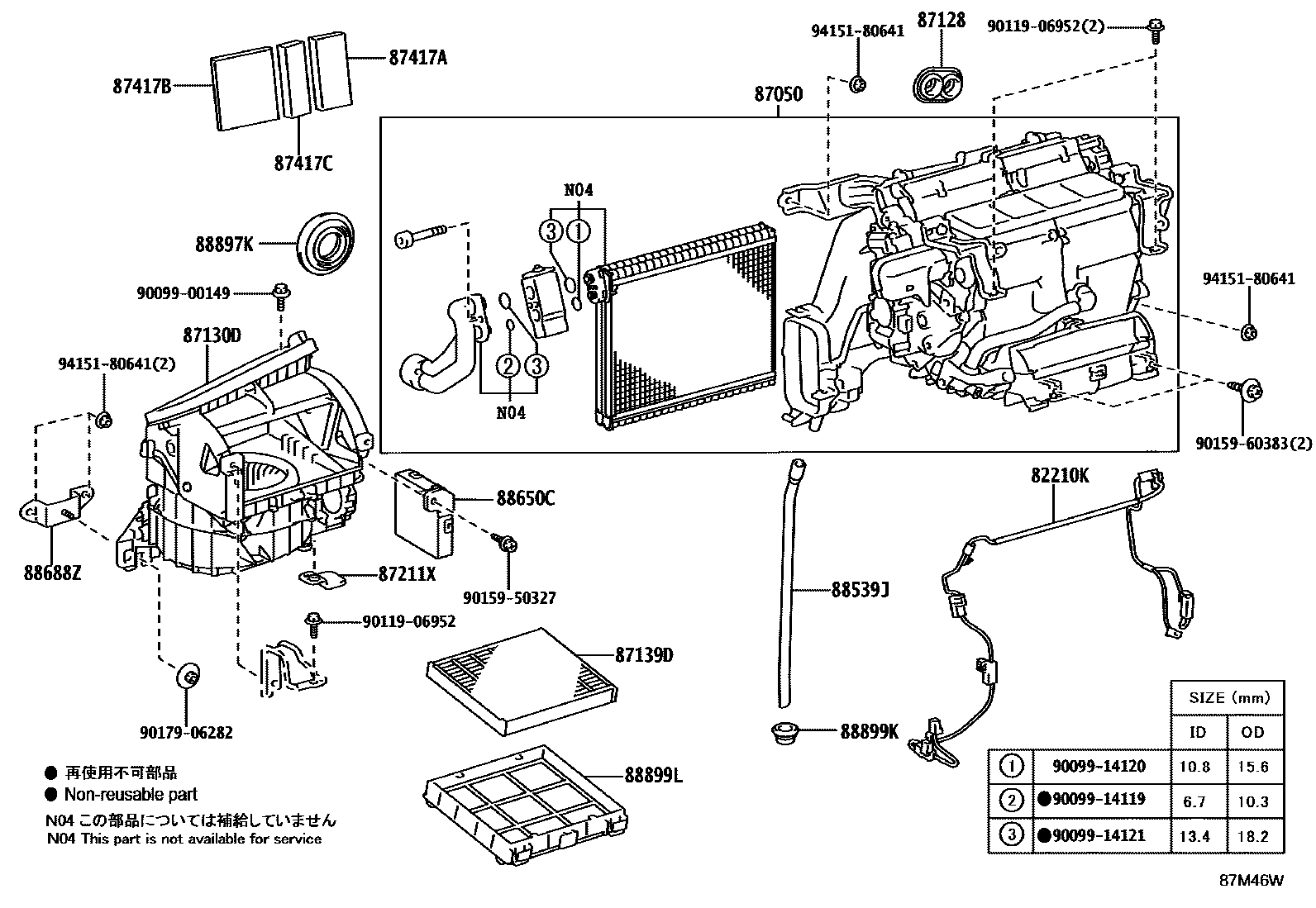

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87050RADIATOR ASSY, AIR CONDITIONER
87128GROMMET, HEATER
87139DELEMENT, AIR REFINER
87211XBLOWER COVER
87417APACKING, AIR DUCT
87417BPACKING, AIR DUCT
87417CPACKING, AIR DUCT
88539JHOSE, DRAIN COOLER
88650CAMPLIFIER SUB-ASSY, AIRCONDITIONER
88688ZBRACKET
88897KGROMMET, (FOR COOLER PIPE)
88899KPLATE, COVER
88899LPARTS, COOLING UNIT
9009900149
main90099-00149
9009914119
main90099-14119
9009914120
main90099-14120
9009914121
main90099-14121
9011906952
main90119-06952
9015950327
main90159-50327
9015960383
main90159-60383
9017906282
main90179-06282
9415180641
main94151-80641
24 parts on this diagram · 1 diagram in section
