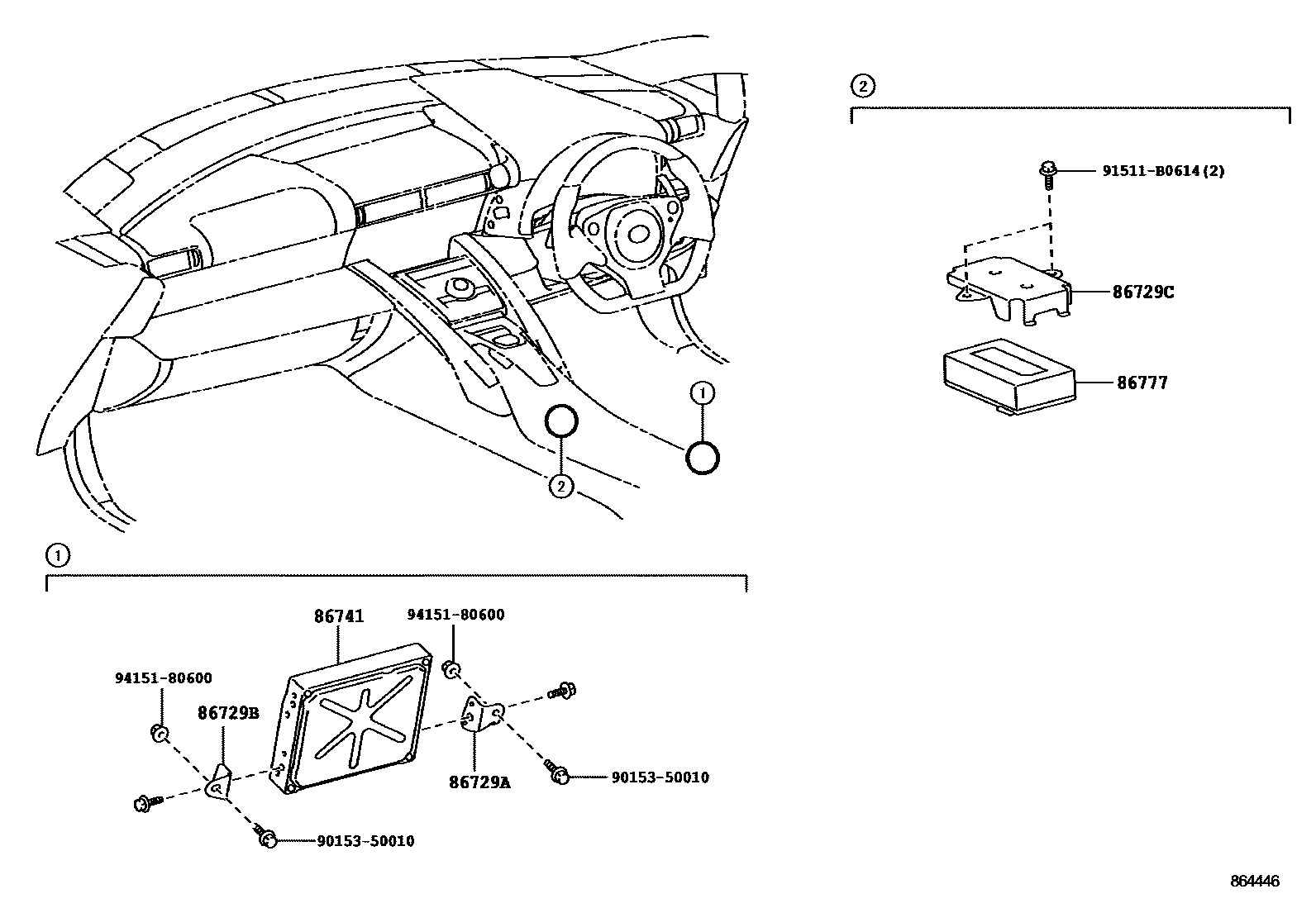

TELEPHONE & MAYDAY

86729ABRACKET, MOBILEPHONE, NO.1

main86729-77010iLFA10201012

86729BBRACKET, MOBILEPHONE, NO.2

main86729-77020iLFA10201012

86729CBRACKET, MOBILEPHONE, NO.3

main86729-77030iLFA10201012

86741TRANSCEIVER, TELEPHONE

main86741-48030iLFA10201012-201202

main86741-48031iLFA10201203-201205

main86741-48032iLFA10201206-201212

86777BATTERY, MAYDAY

main86777-0W051iLFA10201012-201211

9015350010

main90153-50010

91511B0614

main91511-B0614

9415180600

main94151-80600

8 parts on this diagram · 1 diagram in section
