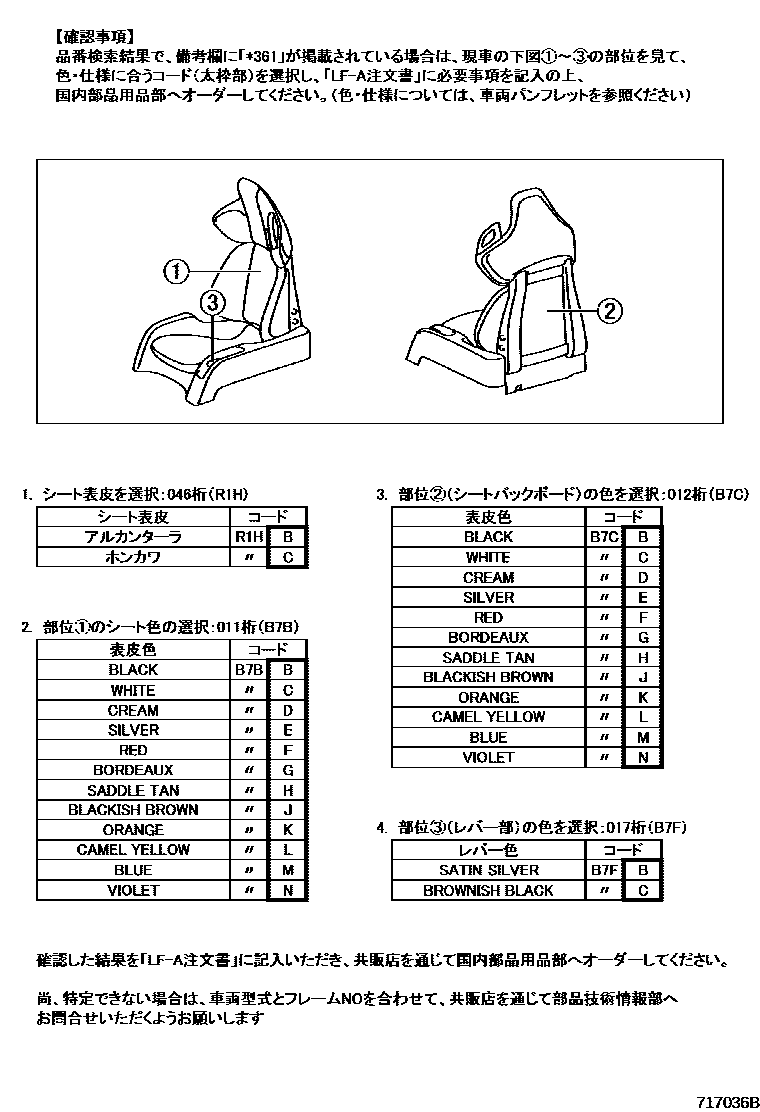

FRONT SEAT & SEAT TRACK

0001 1 0002 1RH 0003 1LH 0004 1

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71103-77020iLFA10201012-201212

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71104-77010iLFA10201012-201212

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71100SSEAT ASSY, FRONT RH

main71100-77060supersedes 71100-77030iLFA10201012-201212

71200SSEAT ASSY, FRONT LH

main71200-77040supersedes 71200-77020iLFA10201012-201212

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main79120-77020supersedes 79120-77010iLFA10201012-201212

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main79130-77020supersedes 79130-77010iLFA10201012-201212

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-77030supersedes 71430-77040iLFA10201012-201212

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71430-77030supersedes 71430-77040iLFA10201012-201212

71518BPAD, FRONT SEAT CUSHION W/COVER, RH

main71410-77010supersedes 71410-77020iLFA10201012-201212

71528PAD, FRONT SEAT CUSHION W/COVER, LH

main71410-77050supersedes 71410-77060iLFA10201012-201212

71558BPAD, FRONT SEATBACK W/COVER, RH

main71401-77010supersedes 71401-77020iLFA10201012-201212

71568APAD, FRONT SEATBACK W/COVER, LH

main71401-77010supersedes 71401-77020iLFA10201012-201212

71610FFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71111-77010iLFA10201012-201212

71620FFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71112-77010iLFA10201012-201212

71705ACLIP(FOR FRONT SEATBACK BOARD)

main62217-13010×12iLFA10201012-201212

71811DSHIELD, FRONT SEAT CUSHION, RH

main71805-77010supersedes 71805-77020iLFA10201012-201212

71812DSHIELD, FRONT SEAT CUSHION, LH

main71806-77010supersedes 71806-77020iLFA10201012-201212

71813ASHIELD, FRONT SEATBACK, RH

main71081-77010iLFA10201012-201212

71813BSHIELD, FRONT SEATBACK, RH

main71081-77010iLFA10201012-201212

71814ASHIELD, FRONT SEATBACK, LH

main71082-77010iLFA10201012-201212

71814BSHIELD, FRONT SEATBACK, LH

main71082-77010iLFA10201012-201212

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-77010iLFA10201012-201212

71861BCLIP(FOR FRONT SEAT SHIELD, RH)

main62217-13010×6iLFA10201012-201212

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-77010iLFA10201012-201212

71862BCLIP(FOR FRONT SEAT SHIELD, LH)

main62217-13010×6iLFA10201012-201212

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-77010iLFA10201012-201212

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-77010iLFA10201012-201212

71905BPAD, FRONT SEAT HEADREST W/COVER, RH

main71905-77010supersedes 71905-77020iLFA10201012-201212

71905CPAD, FRONT SEAT HEADREST W/COVER, LH

main71905-77030supersedes 71905-77040iLFA10201012-201212

71908COVER SUB-ASSY, FRONT SEAT HEADREST

main71908-77010-A0×2iLFA10201012-201212

main71908-77010-A1×2iLFA10201012-201212

main71908-77010-B0×2iLFA10201012-201212

main71908-77010-C0×2iLFA10201012-201212

main71908-77010-D1×2iLFA10201012-201212

main71908-77010-D2×2iLFA10201012-201212

main71908-77010-E0×2iLFA10201012-201212

main71908-77010-E1×2iLFA10201012-201212

main71908-77010-E2×2iLFA10201012-201212

main71908-77010-F0×2iLFA10201012-201212

main71908-77010-J1×2iLFA10201012-201212

main71908-77010-K0×2iLFA10201012-201212

71910AHEADREST ASSY, FRONT SEAT

main71910-77010-06supersedes 71910-77020-K1iLFA10201012-201212

main71910-77010-07supersedes 71910-77020-K1iLFA10201012-201212

main71910-77010-24supersedes 71910-77020-K1iLFA10201012-201212

main71910-77010-30supersedes 71910-77020-K1iLFA10201012-201212

main71910-77010-42supersedes 71910-77020-K1iLFA10201012-201212

main71910-77010-43supersedes 71910-77020-K1iLFA10201012-201212

main71910-77010-44supersedes 71910-77020-K1iLFA10201012-201212

main71910-77010-54supersedes 71910-77020-K1iLFA10201012-201212

main71910-77010-B1supersedes 71910-77020-K1iLFA10201012-201212

main71910-77010-R5supersedes 71910-77020-K1iLFA10201012-201212

main71910-77010-U4supersedes 71910-77020-K1iLFA10201012-201212

main71910-77010-Y9supersedes 71910-77020-K1iLFA10201012-201212

71920AHEADREST ASSY, FRONT SEAT, LH

main71920-77010-06supersedes 71920-77020-K1iLFA10201012-201212

main71920-77010-07supersedes 71920-77020-K1iLFA10201012-201212

main71920-77010-24supersedes 71920-77020-K1iLFA10201012-201212

main71920-77010-30supersedes 71920-77020-K1iLFA10201012-201212

main71920-77010-42supersedes 71920-77020-K1iLFA10201012-201212

main71920-77010-43supersedes 71920-77020-K1iLFA10201012-201212

main71920-77010-44supersedes 71920-77020-K1iLFA10201012-201212

main71920-77010-54supersedes 71920-77020-K1iLFA10201012-201212

main71920-77010-B1supersedes 71920-77020-K1iLFA10201012-201212

main71920-77010-R5supersedes 71920-77020-K1iLFA10201012-201212

main71920-77010-U4supersedes 71920-77020-K1iLFA10201012-201212

main71920-77010-Y9supersedes 71920-77020-K1iLFA10201012-201212

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-77030iLFA10201012-201212

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-77030iLFA10201012-201212

72277PROTECTOR, SEAT SLIDE POSITION SENSOR,

main72277-33010iLFA10201012-201212

72331BFITTING PARTS KIT, FRONT SEAT ADJUSTER

main72331-77010×2iLFA10201012-201212

72331CFITTING PARTS KIT, FRONT SEATBACK FRAME

main72331-77020×2iLFA10201012-201212

78899BOLT, FRONT SEAT

main78899-77010×8iLFA10201012-201212

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

7189877010RETAINER, REAR SEATBACK COVER SIDE

main71898-77010

7255777010SPACER, RECLINING ADJUSTER

main72557-77010

9010506290

main90105-06290

9020106045

main90201-06045

9046400551

main90464-00551

9046710203

main90467-10203

9418560800

main94185-60800

47 parts on this diagram · 4 diagrams in section
