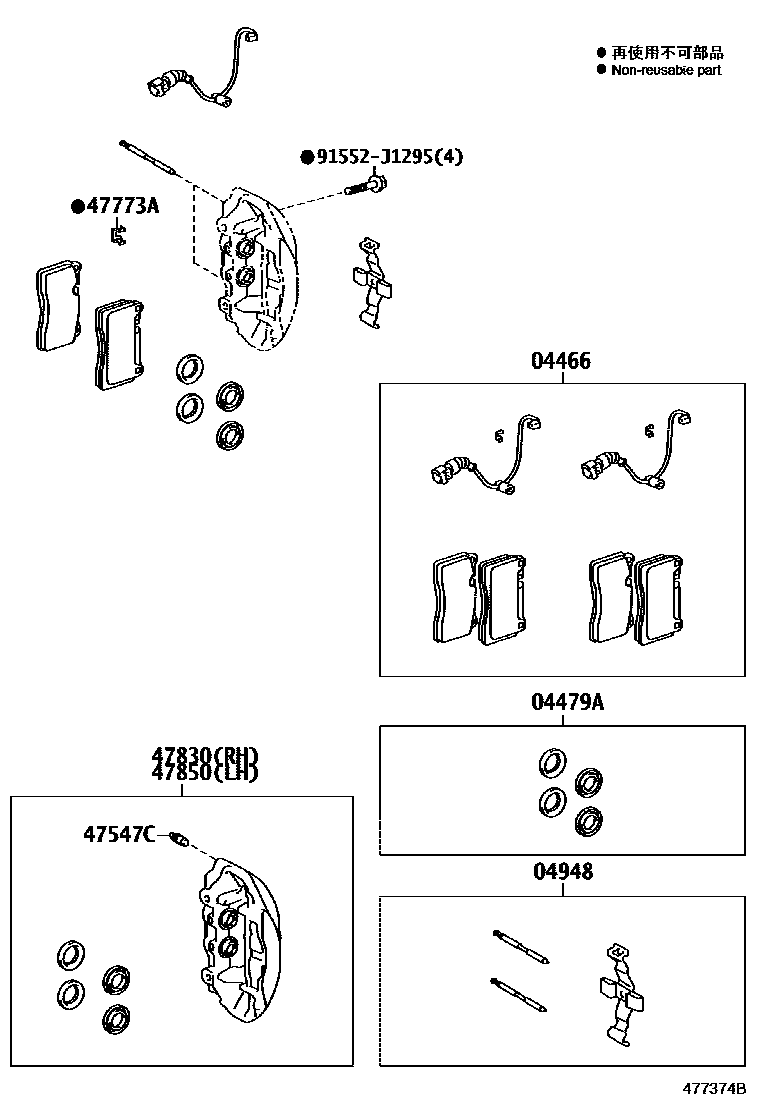

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-0W050iLFA10201012-201212

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-0W020×2iLFA10201012

04948FITTING KIT, DISC BRAKE, REAR

main04948-0W020×2iLFA10201012

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main90069-39012iLFA10201012

47773ARETAINER, PAD WEAR INDICATOR

main47773-50030×2iLFA10201012-201212

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0W030supersedes 47830-0W020iLFA10201012

main47830-0W040supersedes 47830-0W020iLFA10201012

main47830-0W050supersedes 47830-0W020iLFA10201012

main47830-0W060supersedes 47830-0W020iLFA10201012

main47830-0W070supersedes 47830-0W020iLFA10201012

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0W030supersedes 47850-0W020iLFA10201012

main47850-0W040supersedes 47850-0W020iLFA10201012

main47850-0W050supersedes 47850-0W020iLFA10201012

main47850-0W060supersedes 47850-0W020iLFA10201012

main47850-0W070supersedes 47850-0W020iLFA10201012

91552J1295

main91552-J1295

8 parts on this diagram · 1 diagram in section
