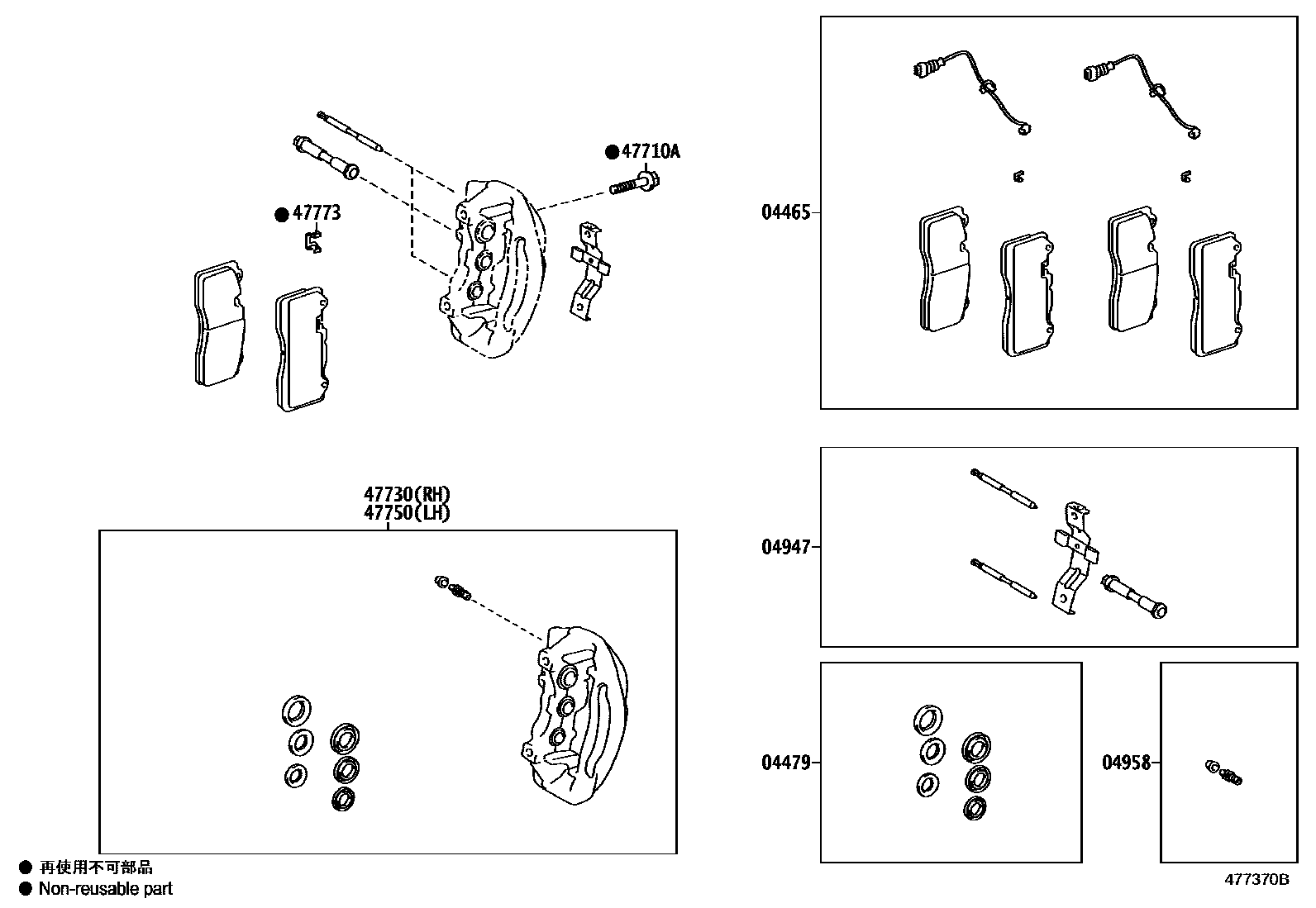

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-0W160iLFA10201012-201212

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0W030×2iLFA10201012

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0W030×2iLFA10201012

04958BLEEDER KIT, DISC BRAKE, FRONT

main04958-0W020×2iLFA10201012

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12331×4iLFA10201012

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0W060supersedes 47730-0W050iLFA10201012

main47730-0W070supersedes 47730-0W050iLFA10201012

main47730-0W080supersedes 47730-0W050iLFA10201012

main47730-0W090supersedes 47730-0W050iLFA10201012

main47730-0W100supersedes 47730-0W050iLFA10201012

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0W060supersedes 47750-0W050iLFA10201012

main47750-0W070supersedes 47750-0W050iLFA10201012

main47750-0W080supersedes 47750-0W050iLFA10201012

main47750-0W090supersedes 47750-0W050iLFA10201012

main47750-0W100supersedes 47750-0W050iLFA10201012

47773RETAINER, PAD WEAR INDICATOR

main47773-50030iLFA10201012-201212

8 parts on this diagram · 1 diagram in section
