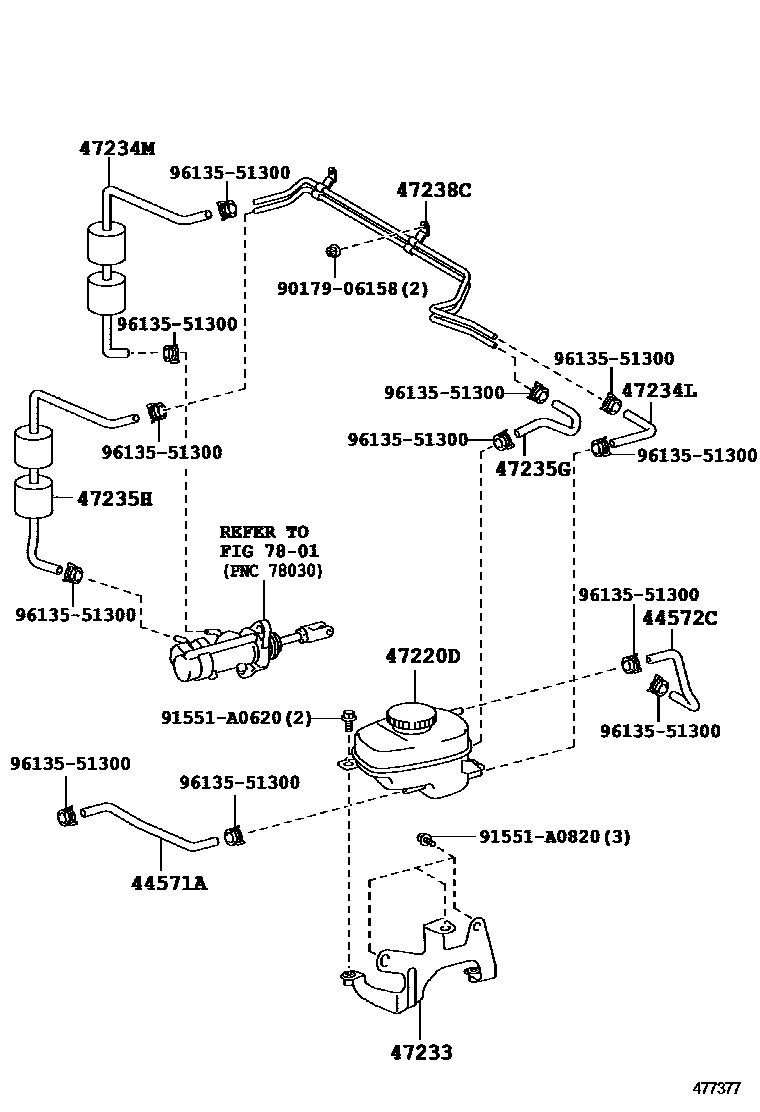

BRAKE MASTER CYLINDER

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-77010iLFA10201012

44572CHOSE, BRAKE ACTUATOR, NO.2

main44572-77010iLFA10201012

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-77010iLFA10201012

47233BRACKET, RESERVOIR

main47233-77010iLFA10201012

47234LHOSE, RESERVOIR, NO.1

main47234-77030iLFA10201012

47234MHOSE, RESERVOIR, NO.1

main47234-77020iLFA10201012

47235GHOSE, RESERVOIR, NO.2

main47235-77030iLFA10201012

47235HHOSE, RESERVOIR, NO.2

main47235-77020iLFA10201012

47238CTUBE, RESERVOIR

main47238-77010iLFA10201012

7801ACCELERATOR LINK

→ Go to FIG 78-01

9017906158

main90179-06158

91551A0620

main91551-A0620

91551A0820

main91551-A0820

9613551300

main96135-51300

14 parts on this diagram · 1 diagram in section
