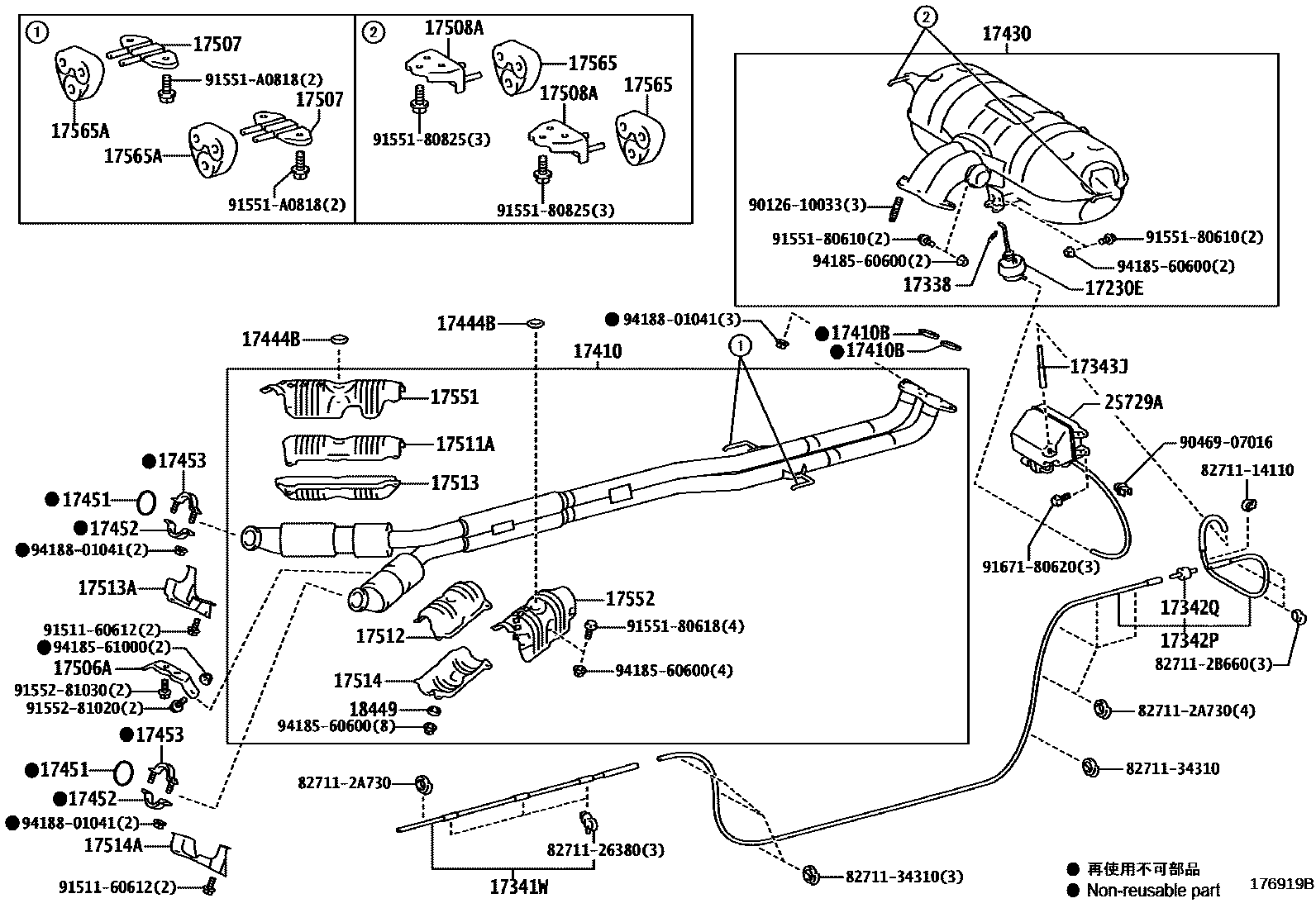

EXHAUST PIPE
17230EACTUATOR ASSY, W/BRACKET
17338SPRING, AIR CONTROL
17341WHOSE, AIR, NO.1
17342PHOSE, AIR, NO.2
17342QVALVE, CHECK
17343JHOSE, AIR, NO.3
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17430PIPE ASSY, EXHAUST, TAIL
17444BSPACER, EXHAUST PIPE
17451GASKET, EXHAUST PIPE
17452CLAMP, EXHAUST PIPE
17453CLAMP, EXHAUST PIPE, NO.2
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17511AINSULATOR, EXHAUST PIPE, UPPER NO.1
17512INSULATOR, EXHAUST PIPE, UPPER NO.2
17513INSULATOR, EXHAUST PIPE, LOWER NO.1
17513AINSULATOR, EXHAUST PIPE, LOWER NO.2
17514INSULATOR, EXHAUST PIPE, LOWER NO.2
17514AINSULATOR, EXHAUST PIPE, LOWER NO.1
17551INSULATOR, EXHAUST PIPE HEAT, NO.1
17552INSULATOR, EXHAUST PIPE HEAT, NO.2
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
18449SPACER, CONVERTER PROTECTOR
25729ATANK, VACUUM SURGE W/BRACKET
8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14110
8271126380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-26380
827112A730WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2A730
827112B660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B660
8271134310WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-34310
9012610033
main90126-10033
9046907016
main90469-07016
9151160612
main91511-60612
9155180610
main91551-80610
9155180618
main91551-80618
9155180825
main91551-80825
91551A0818
main91551-A0818
9155281020
main91552-81020
9155281030
main91552-81030
9167180620
main91671-80620
9418560600
main94185-60600
9418561000
main94185-61000
9418801041
main94188-01041
46 parts on this diagram · 1 diagram in section
