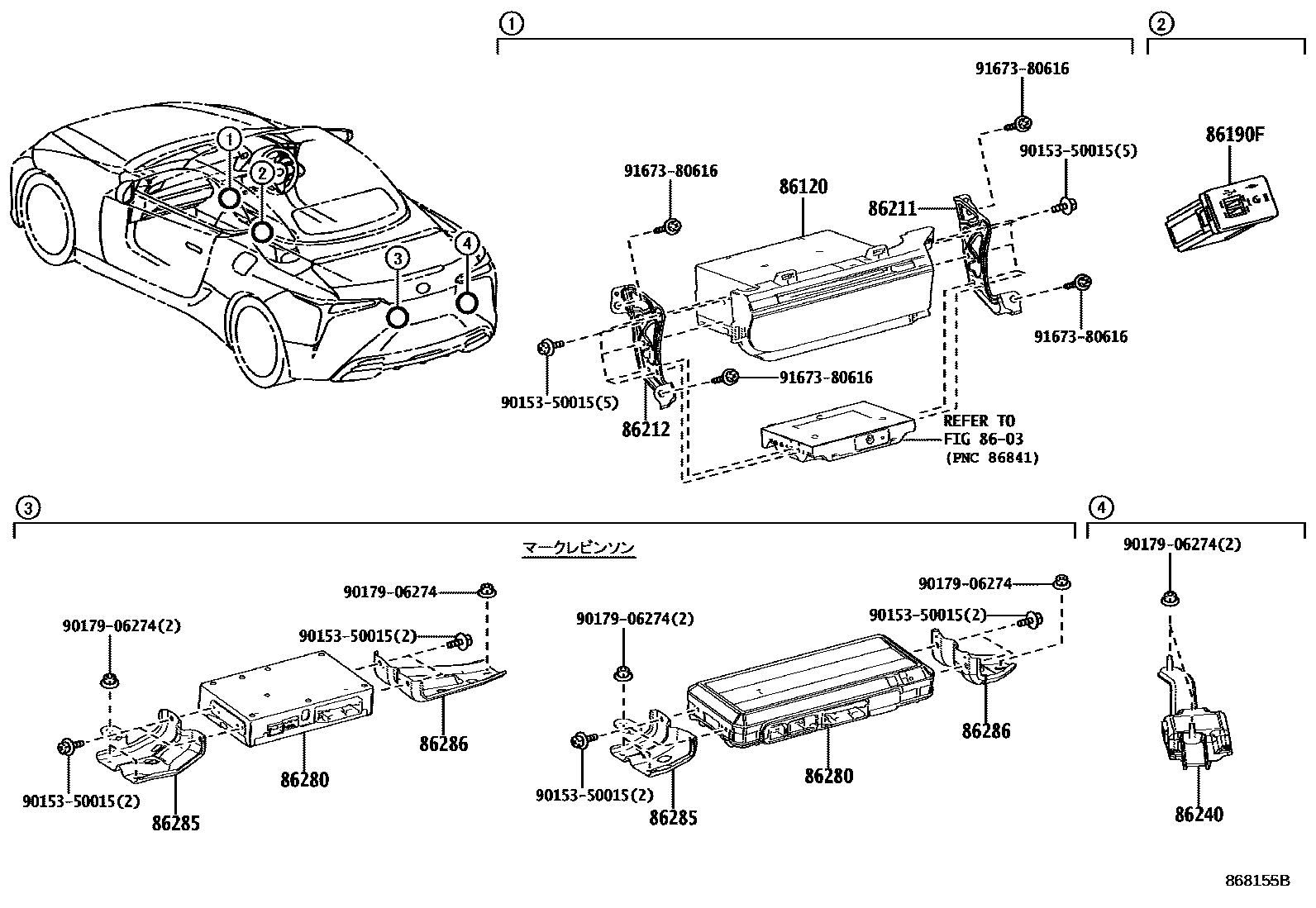

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1����� & ���� 0002 1������

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86120RECEIVER ASSY, RADIO

main86120-11840iURZ100202007

86190FADAPTER ASSY, STEREO JACK

main86190-24030iURZ100202007

86211BRACKET, RADIO, NO.1

main86211-11010iURZ100202007

86212BRACKET, RADIO, NO.2

main86212-11010iURZ100202007

86240EQUALIZER ASSY,STEREO COMPONENT

main86240-11020iURZ100202007

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-11030iURZ100202007

86285BRACKET, AMPLIFIER, NO.1

main86285-11010iURZ100202007

86286BRACKET, AMPLIFIER, NO.2

main86286-11010iURZ100202007

9015350015

main90153-50015

9017906274

main90179-06274

9167380616

main91673-80616

12 parts on this diagram · 2 diagrams in section
