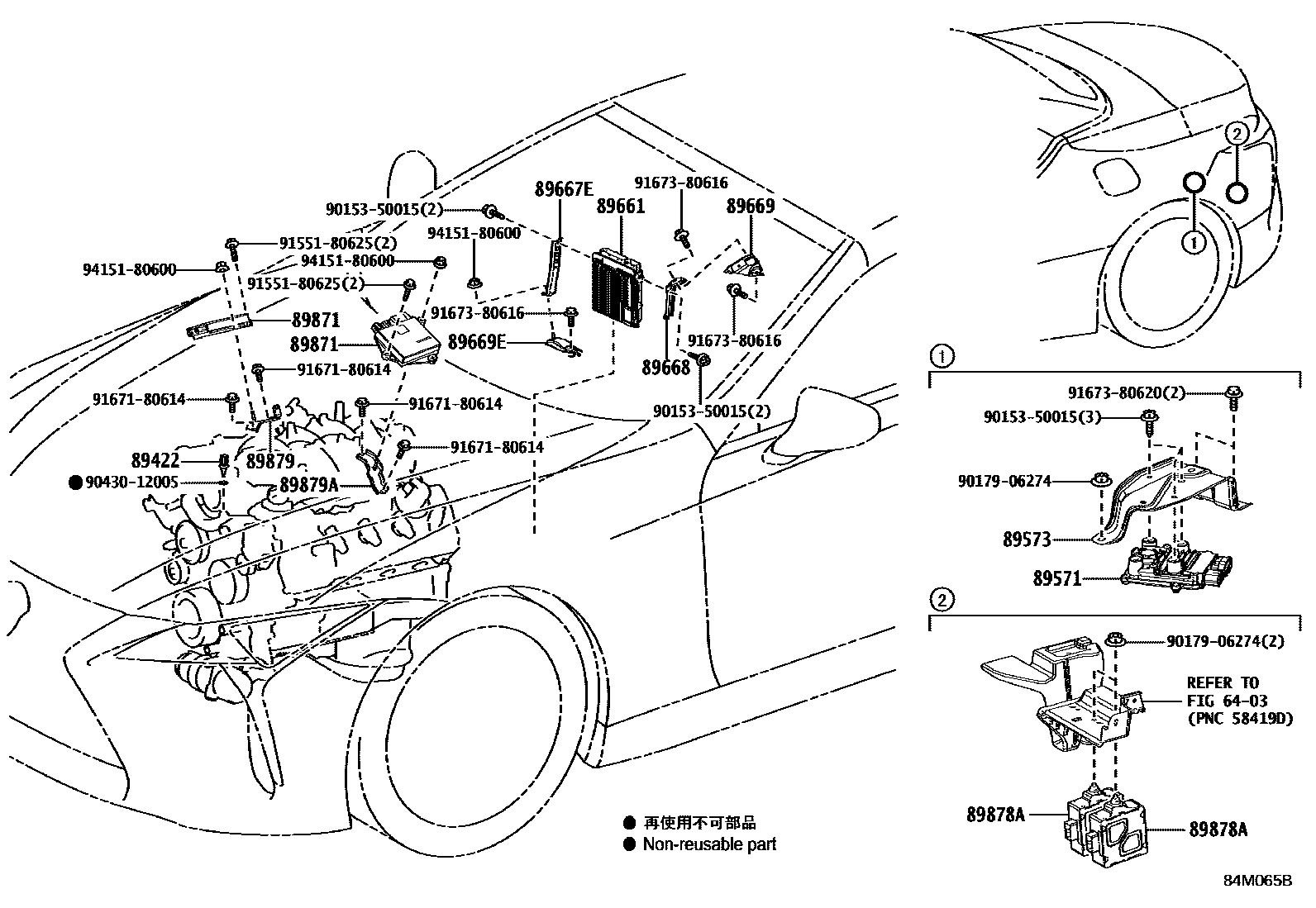

ELECTRONIC FUEL INJECTION SYSTEM

6403PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

→ Go to FIG 64-03

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iURZ100202007

89571COMPUTER, FUEL PUMP CONTROL

main89571-58010iURZ100202007

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-11010iURZ100202007

89661COMPUTER, ENGINE CONTROL

main89661-11380iURZ100202007

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-11020iURZ100202007

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-11020iURZ100202007

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-11020iURZ100202007

89669EBRACKET, ENGINE CONTROL COMPUTER, NO.4

main89669-11050iURZ100202007

89871DRIVER, INJECTOR

main89871-30040×2iURZ100202007

89878ADRIVER, EXHAUST CHANGE VALVE

main89878-11040×2iURZ100202007

89879BRACKET, INJECTOR DRIVER

main89879-24010iURZ100202007

89879ABRACKET, INJECTOR DRIVER

main89879-24020iURZ100202007

9015350015

main90153-50015

9017906274

main90179-06274

9043012005

main90430-12005

9155180625

main91551-80625

9167180614

main91671-80614

9167380616

main91673-80616

9167380620

main91673-80620

9415180600

main94151-80600

21 parts on this diagram · 1 diagram in section
