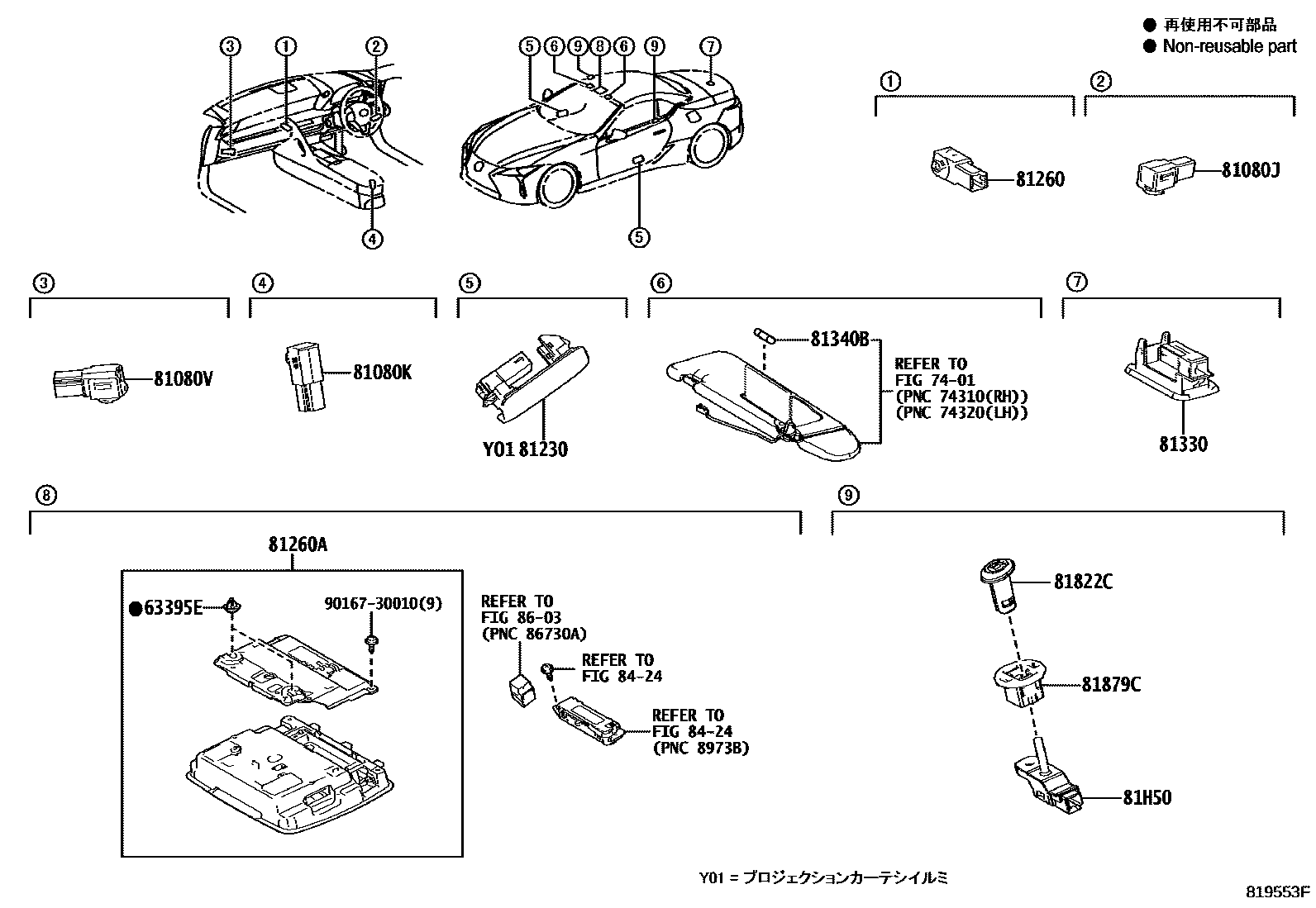

INTERIOR LAMP

63395ECLIP(FOR MAP LAMP)

main90467-09245×2iURZ100202007

7401ARMREST & VISOR

→ Go to FIG 74-01

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-33310iURZ100202007

81080KLAMP ASSY, CONSOLE BOX ILLUMINATION

main81080-30170iURZ100202007

81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81080-33310iURZ100202007

81230LAMP ASSY, COURTESY

main81230-11030×2iURZ100202007

81260LAMP ASSY, GLOVE BOX

main81080-33290iURZ100202007

81260ALAMP ASSY, MAP

main81208-11090iURZ100202007

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-11010iURZ100202007

81340BBULB (FOR VANITY LAMP)

main90981-14014×2iURZ100202007

81822CCOVER, INDICATOR LAMP

main81822-11010×2iURZ100202007

81879CBRACKET, INDICATOR LAMP

main81879-50020×2iURZ100202007

81H50LAMP ASSY, INDICATOR

main81850-11010×2iURZ100202007

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

9016730010

main90167-30010

16 parts on this diagram · 1 diagram in section
