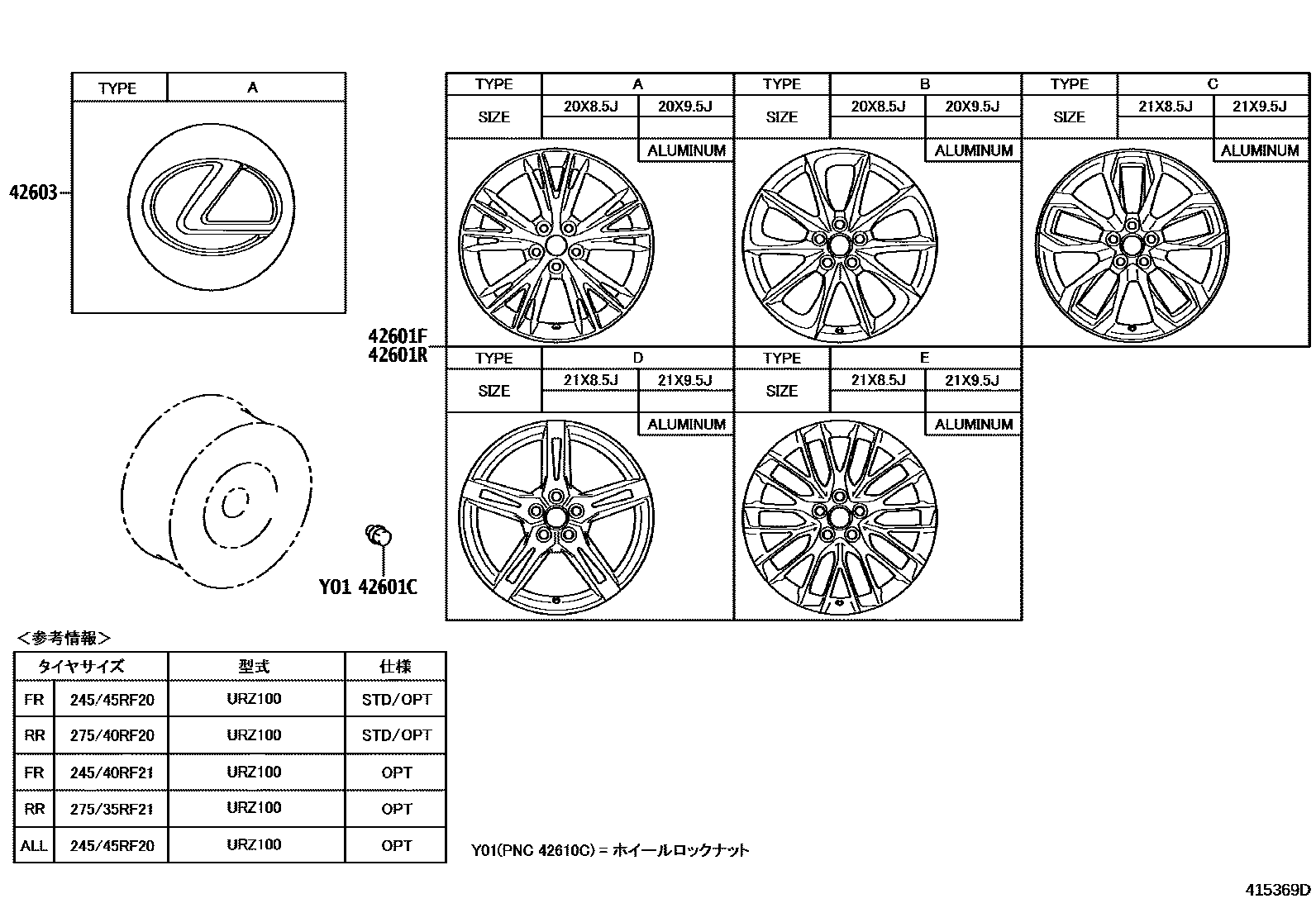

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601CNUT, HUB (FOR AXLE)

main90942-01118×20iURZ100202007

42601FWHEEL, DISC (FOR FRONT)

main42611-11140×2iURZ100202007

main42611-WY340×2supersedes 42611-11050iURZ100202111-202210

main42611-WY370×2iURZ100202302

main4261A-11010×2supersedes 42611-11040iURZ100202007-202111

42601RWHEEL, DISC (FOR REAR)

main42611-11040×2supersedes 42611-11060iURZ100202007-202111

main42611-11050×2supersedes 42611-11070iURZ100202111

main42611-11170×2iURZ100202007

main42611-WY350×2supersedes 42611-11070iURZ100202111-202210

main42611-WY380×2iURZ100202302

main4261A-11020×2supersedes 42611-11060iURZ100202007-202111

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-53110×4iURZ100202007

4 parts on this diagram · 3 diagrams in section
