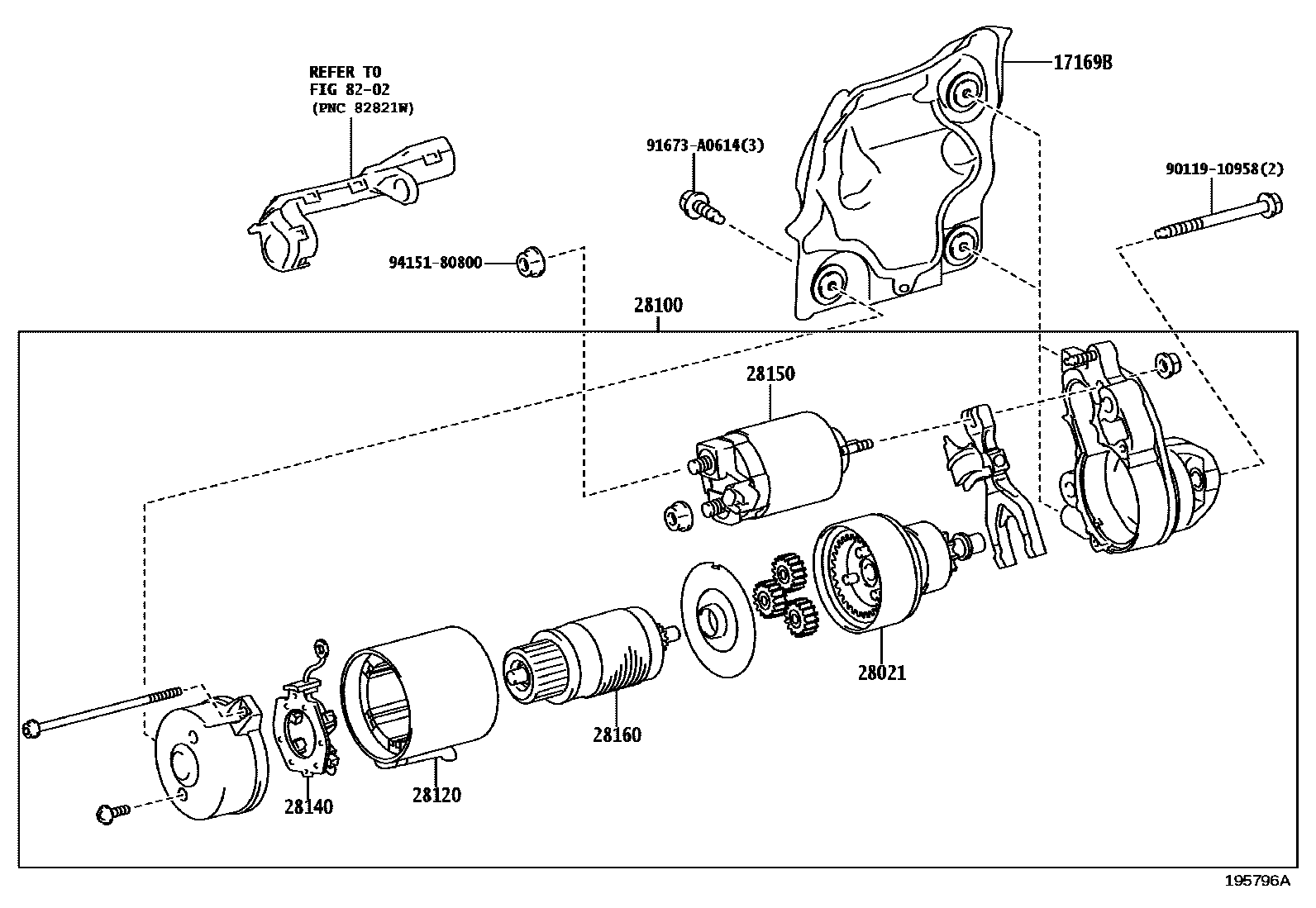

STARTER

17169BINSULATOR, EXHAUST MANIFOLD HEAT, NO.3

main17169-38030202007

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-75210202007

28100STARTER ASSY

main28100-38091202007

28120YOKE ASSY, STARTER

main28120-38090202007

28140HOLDER ASSY, STARTER BRUSH

main28140-38070202007

28150SWITCH ASSY, MAGNET STARTER

main28150-38061202007

28160ARMATURE ASSY, STARTER

main28160-36110202007

8202WIRING & CLAMP

→ Go to FIG 82-02

9011910958

main90119-10958

91673A0614

main91673-A0614

9415180800

main94151-80800

11 parts on this diagram · 1 diagram in section
